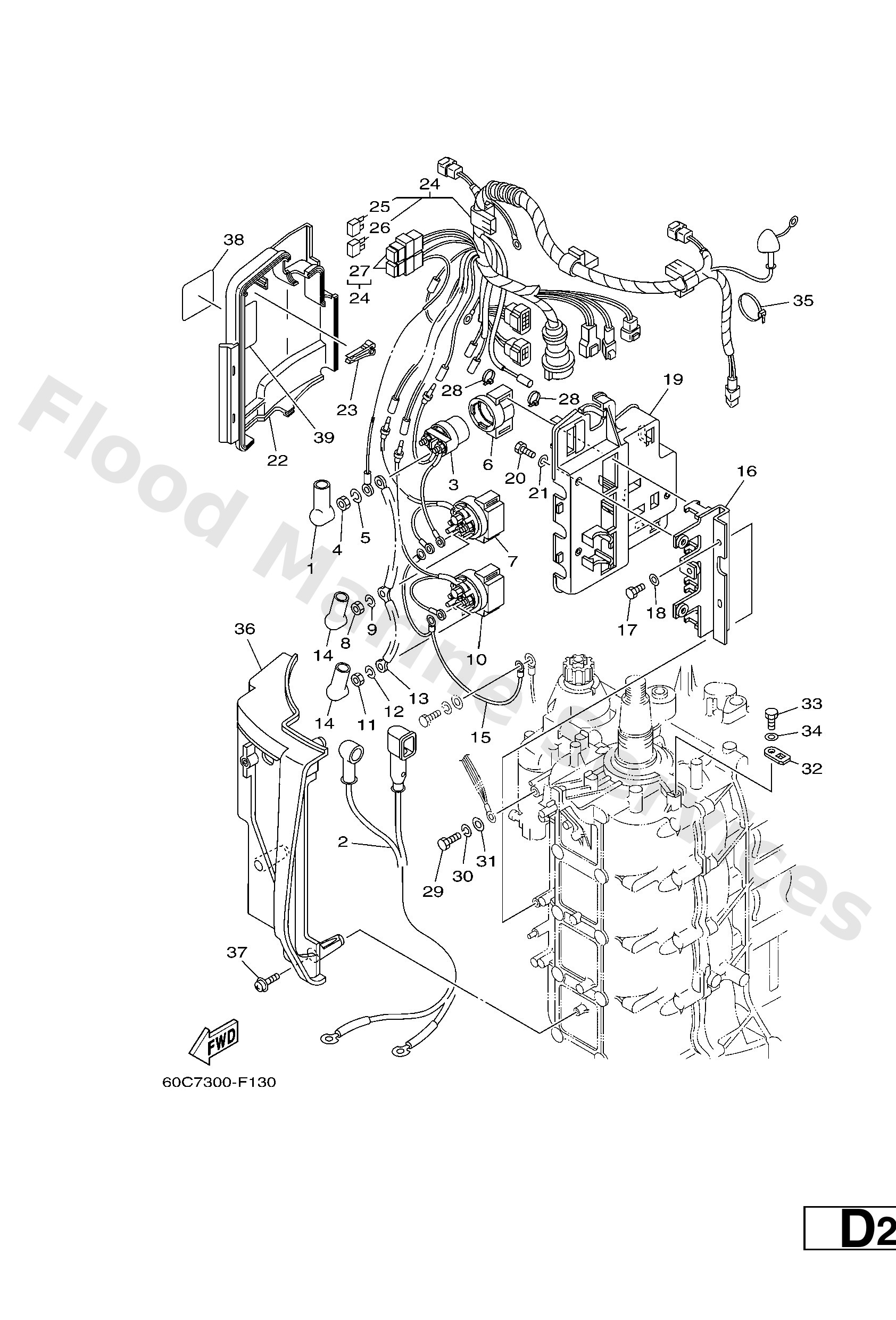

Diagram: ELECTRICAL 2

Diagram

Parts List

6828211901
Cover, lead wire
Diagram Reference: 1
Get Part
67F8210500
Battery cable
Diagram Reference: 2
Get Part
6G18194A10
Starter relay
Diagram Reference: 3
Get Part
9017006M30
Nut(62x)
Diagram Reference: 4
Get Part
9020406M00
Washer, spring(62x)
Diagram Reference: 5
Get Part
6G18195200
Holder, relay
Diagram Reference: 6
Get Part
6E58195B01
Relay assembly
Diagram Reference: 7
Get Part
6E58195C01
Relay assembly
Diagram Reference: 10
Get Part
66T8714900
Connector
Diagram Reference: 13
Get Part
6G58211900
Cover, lead wire
Diagram Reference: 14
Get Part
67F8211600
Wire, minus lead
Diagram Reference: 15
Get Part
67F8195300
Stay, relay
Diagram Reference: 16
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 17
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 18
Get Part
67F8194800
Bracket
Diagram Reference: 19
Get Part
67F8194200
Cover
Diagram Reference: 22
Get Part
67F2812A00
Puller, fuse
Diagram Reference: 23
Get Part
67F8259020
Wire harness assembly
Diagram Reference: 24
Get Part
67F8215100
Fuse
Diagram Reference: 25
Get Part
67F8215110
Fuse
Diagram Reference: 26
Get Part
67F8215B00
Cap (black)
Diagram Reference: 27
Get Part
9046513M97
Clamp
Diagram Reference: 28
Get Part
9299506100
Washer(6a1)
Diagram Reference: 30
Get Part
67F8258800
Plate
Diagram Reference: 32
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 33
Get Part
9046513M11
Clamp (6e5)
Diagram Reference: 35
Get Part
60C8191601
Cover, terminal
Diagram Reference: 36
Get Part
9015906M29
Screw, with washer
Diagram Reference: 37
Get Part
67F8362600
Mark. 6
Diagram Reference: 38
Get Part
67F8191900
Graphic, regulator
Diagram Reference: 39
Get Part
