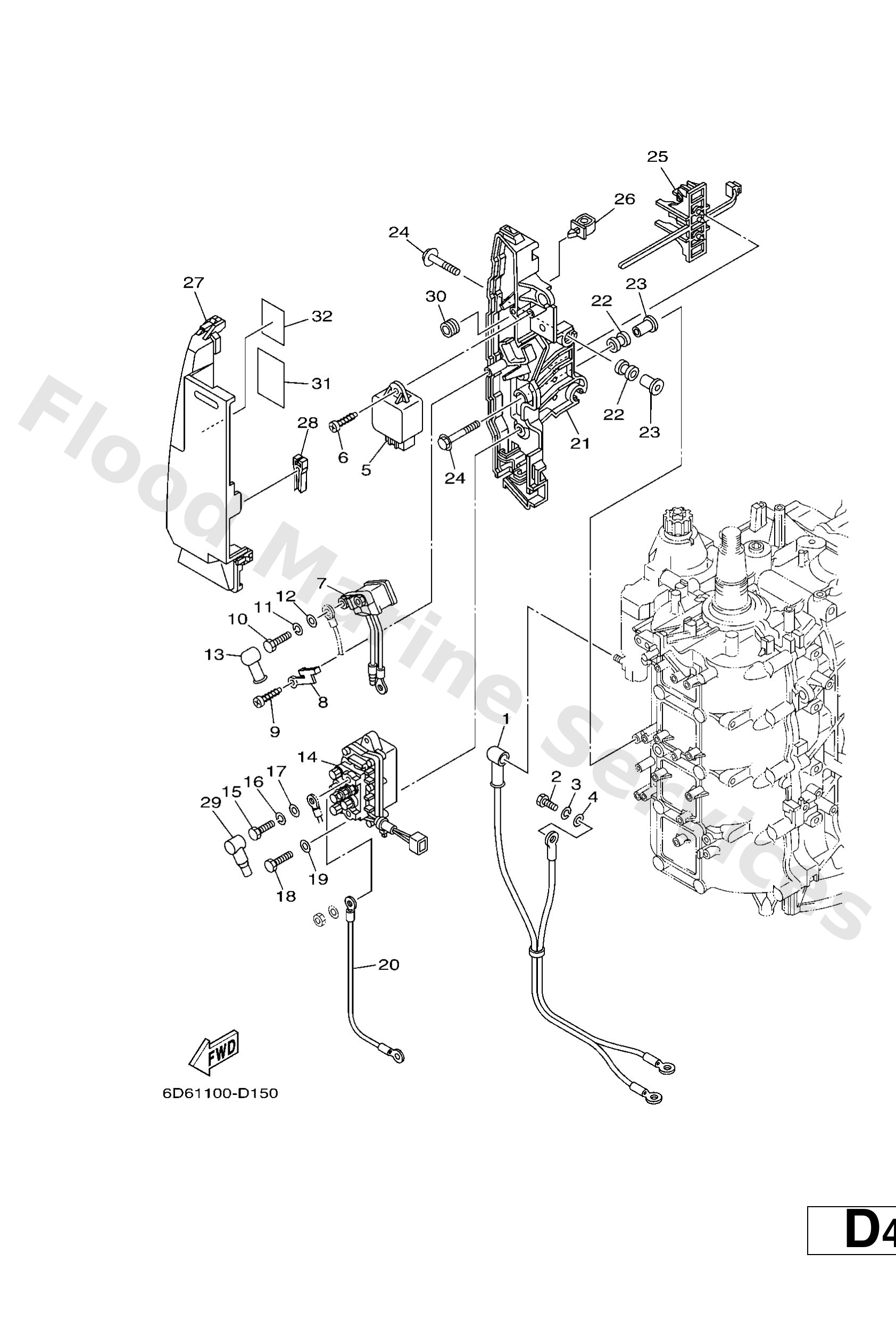

Diagram: ELECTRICAL 2
Parts List
Battery cable
Diagram Reference: 1
Bolt(62y)
Diagram Reference: 2
Washer(6a1)
Diagram Reference: 3
Washer, plain (646)
Diagram Reference: 4
Relay assembly
Diagram Reference: 5
Screw, tapping(65j)
Diagram Reference: 6
Relay
Diagram Reference: 7
Stay, relay
Diagram Reference: 8
Screw, tapping(6k8)
Diagram Reference: 9
Bolt
Diagram Reference: 10
Washer(6a1)
Diagram Reference: 11
Washer, plain (646)
Diagram Reference: 12
Cover, lead wire
Diagram Reference: 13
Relay assembly
Diagram Reference: 14
Wire, lead
Diagram Reference: 20
Bracket
Diagram Reference: 21
Damper, ignition coil
Diagram Reference: 22
Collar
Diagram Reference: 23
Bolt, with washer
Diagram Reference: 24
Clamp
Diagram Reference: 25
Clamp
Diagram Reference: 26
Cover
Diagram Reference: 27
Puller, fuse
Diagram Reference: 28
Cover, lead wire
Diagram Reference: 29
Graphic, regulator
Diagram Reference: 31
Graphic, regulator
