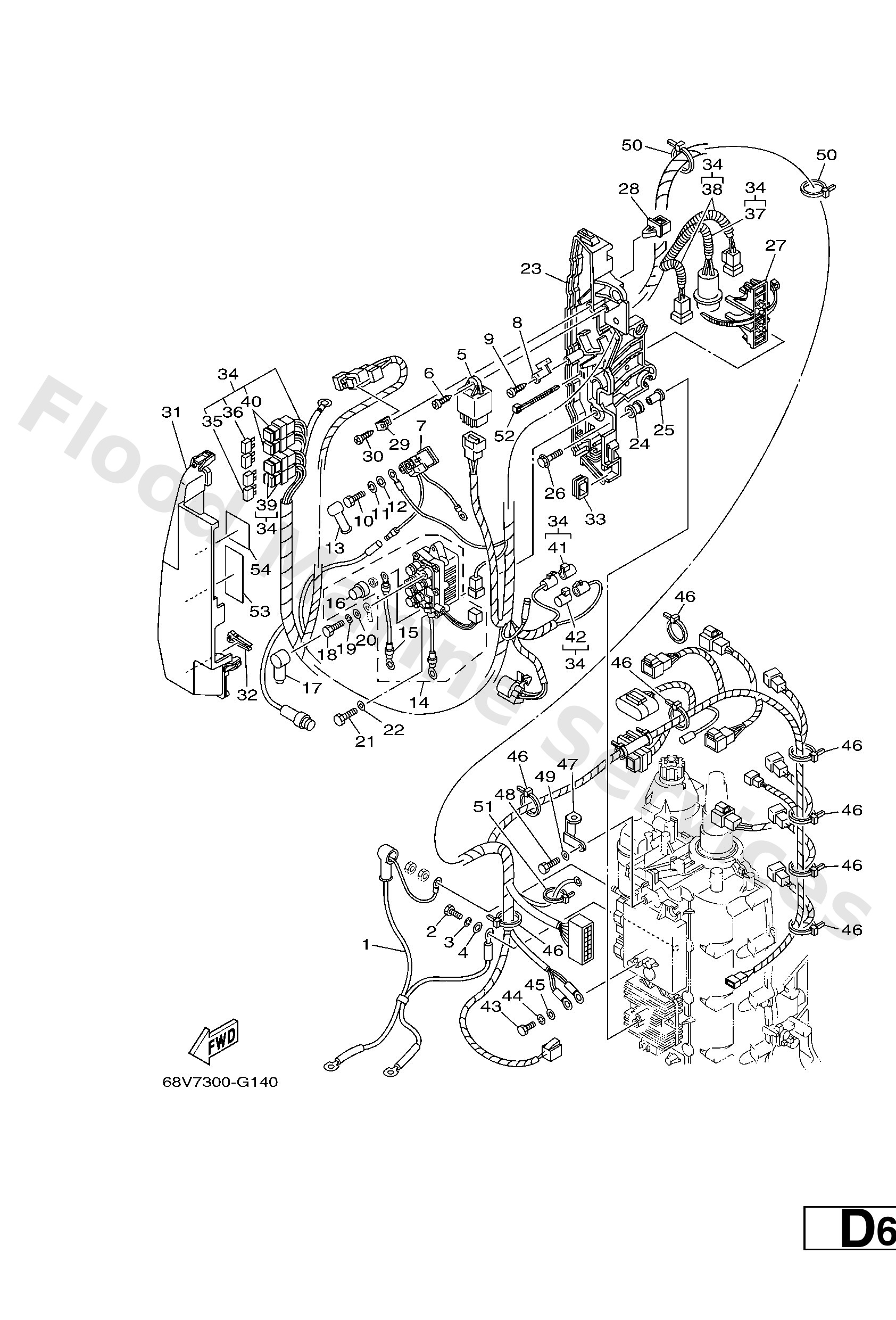

Diagram: ELECTRICAL 2

Diagram

Parts List

68V8210500
Battery cable
Diagram Reference: 1
Get Part
9701306020
Bolt(62y)
Diagram Reference: 2
Get Part
9290306100
Washer(6a1)
Diagram Reference: 3
Get Part
9290306600
Washer, plain (646)
Diagram Reference: 4
Get Part
68V8195000
Relay assembly
Diagram Reference: 5
Get Part
9778060625
Screw, tapping(65j)
Diagram Reference: 6
Get Part
68V8194A00
Relay
Diagram Reference: 7
Get Part
68V8195300
Stay, relay
Diagram Reference: 8
Get Part
9778060620
Screw, tapping(6k8)
Diagram Reference: 9
Get Part
9709506010
Bolt
Diagram Reference: 10
Get Part
9299506100
Washer(6a1)
Diagram Reference: 11
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 12
Get Part
6G58211900
Cover, lead wire
Diagram Reference: 13
Get Part
68V8195B01
Relay assembly
Diagram Reference: 14
Get Part
68V8194900
Wire, lead
Diagram Reference: 15
Get Part
68V8253200
Cap
Diagram Reference: 16
Get Part
6828211901
Cover, lead wire
Diagram Reference: 17
Get Part
68V8194802
Bracket
Diagram Reference: 23
Get Part
6A08231700
Damper, ignition coil
Diagram Reference: 24
Get Part
9038706119
Collar
Diagram Reference: 25
Get Part
9011906M59
Bolt, with washer
Diagram Reference: 26
Get Part
68V8259400
Clamp
Diagram Reference: 27
Get Part
9046412M58
Clamp
Diagram Reference: 28
Get Part
68V8554800
Holder
Diagram Reference: 29
Get Part
68V8194203
Cover
Diagram Reference: 31
Get Part
67F2812A00
Puller, fuse
Diagram Reference: 32
Get Part
6D88151800
Grommet
Diagram Reference: 33
Get Part
68V8259050
Wire harness assembly
Diagram Reference: 34
Get Part
67F8215100
Fuse
Diagram Reference: 35
Get Part
67F8215110
Fuse
Diagram Reference: 36
Get Part
9044710003
Hose, with spring
Diagram Reference: 37
Get Part
9044707007
Hose, with spring
Diagram Reference: 38
Get Part
67F8215B10
Cap (yellow)
Diagram Reference: 39
Get Part
67F8215B20
Cap (green)
Diagram Reference: 40
Get Part
6P28258200
Cap 1 (female)
Diagram Reference: 41
Get Part
6P28258210
Cap 1 (male)
Diagram Reference: 42
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 43
Get Part
9046513M18
Clamp
Diagram Reference: 46
Get Part
6D88258100
Stay, cord clamp
Diagram Reference: 47
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 48
Get Part
9046511M52
Clamp(6e7)
Diagram Reference: 50
Get Part
68V8191900
Graphic, regulator
Diagram Reference: 53
Get Part
68V8191910
Graphic, regulator
Diagram Reference: 54
Get Part
