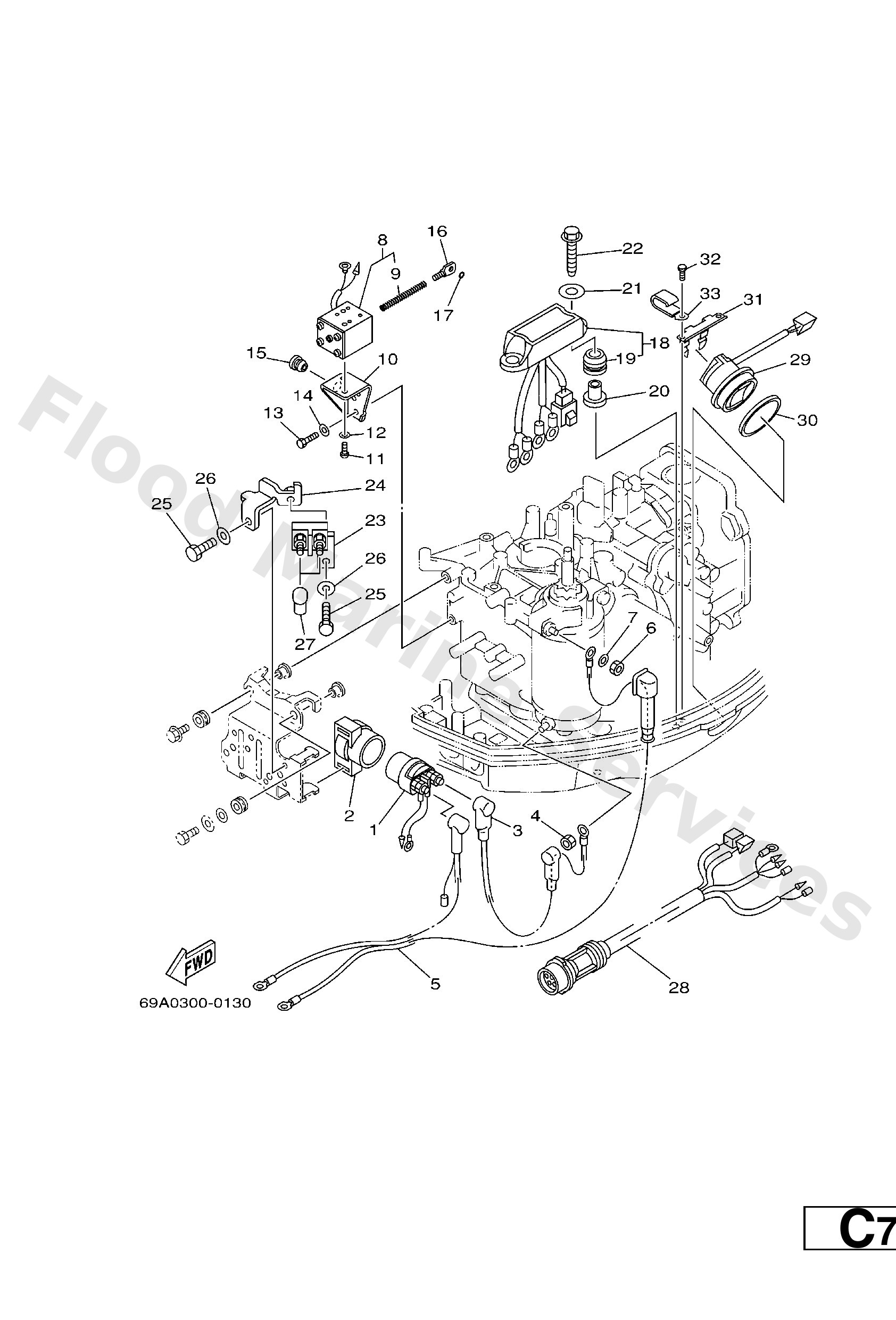

Diagram: ELECTRICAL 2

Diagram

Parts List

6G18194110
Starter relay
Diagram Reference: 1
Get Part
6G18195200
Holder, relay
Diagram Reference: 2
Get Part
66M8211700
Wire, lead
Diagram Reference: 3
Get Part
65W8182B00
Nut, special
Diagram Reference: 4
Get Part
66M8210500
Battery cable
Diagram Reference: 5
Get Part
9538008700
Nut(661)
Diagram Reference: 6
Get Part
9299008600
Washer, plain (663)
Diagram Reference: 7
Get Part
66M8611100
Coil, solenoid
Diagram Reference: 8
Get Part
66M8611600
Wire, Pull
Diagram Reference: 9
Get Part
66M8611200
Stay, Solenoid
Diagram Reference: 10
Get Part
9788005008
Screw, with washer
Diagram Reference: 11
Get Part
9299005600
Washer, plain (646)
Diagram Reference: 12
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 13
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 14
Get Part
9048010M13
Grommet (6e0)
Diagram Reference: 15
Get Part
66M8611700
Hook, wire pull
Diagram Reference: 16
Get Part
9321003261
O-ring (663)
Diagram Reference: 17
Get Part
69A8195000
Relay assembly
Diagram Reference: 18
Get Part
9048009M12
Grommet (6a0)
Diagram Reference: 19
Get Part
9038706M03
Collar (676)
Diagram Reference: 20
Get Part
9020106416
Washer, plate(663)
Diagram Reference: 21
Get Part
9010906MA2
Bolt
Diagram Reference: 22
Get Part
6H58192000
Terminal assembly
Diagram Reference: 23
Get Part
69A8192900
Bracket, Terminal
Diagram Reference: 24
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 25
Get Part
6G58211900
Cover, lead wire
Diagram Reference: 27
Get Part
69A8259000
Wire Harness assembly
Diagram Reference: 28
Get Part
63D8256310
Trim & tilt switch assembly
Diagram Reference: 29
Get Part
6E58258700
Gasket
Diagram Reference: 30
Get Part
69A8361400
Bracket
Diagram Reference: 31
Get Part
9010906M86
Bolt
Diagram Reference: 32
Get Part
9046506M88
Clamp
Diagram Reference: 33
Get Part
