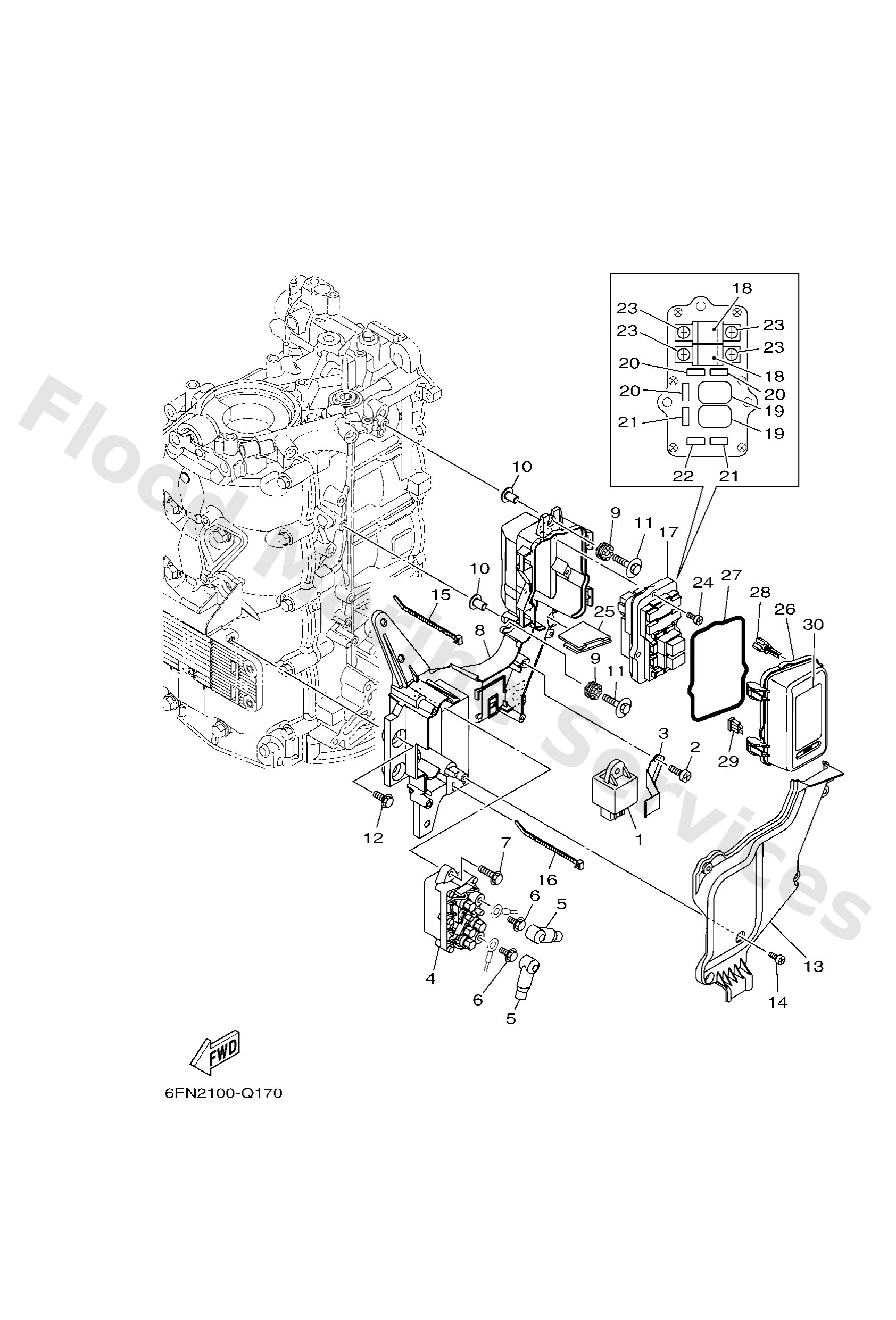

Diagram: ELECTRICAL 2

Diagram

Parts List

68V8195000
Relay assembly
Diagram Reference: 1
Get Part
9778060620
Screw, tapping(6k8)
Diagram Reference: 2
Get Part
6EM8195300
Stay, relay
Diagram Reference: 3
Get Part
63P8195000
Relay assembly
Diagram Reference: 4
Get Part
6828211901
Cover, lead wire
Diagram Reference: 5
Get Part
9759506610
Bolt, hexagon w/w deep recess
Diagram Reference: 6
Get Part
9759506520
Bolt(7u8)
Diagram Reference: 7
Get Part
6EM8195210
Holder, relay
Diagram Reference: 8
Get Part
64J8551600
Spacer
Diagram Reference: 9
Get Part
69M4275801
Collar
Diagram Reference: 10
Get Part
9011906M56
Bolt, with washer
Diagram Reference: 11
Get Part
9589506016
Bolt, flange deep recess
Diagram Reference: 12
Get Part
6EM8194200
Cover
Diagram Reference: 13
Get Part
9016905M00
Screw truss head tapping
Diagram Reference: 14
Get Part
9046513M18
Clamp
Diagram Reference: 15
Get Part
9046514M66
Clamp
Diagram Reference: 16
Get Part
6EM8217000
Fuse box assembly
Diagram Reference: 17
Get Part
63P8215100
Fuse (50a)
Diagram Reference: 18
Get Part
6AW8195A00
Relay assembly
Diagram Reference: 19
Get Part
67F8215100
Fuse
Diagram Reference: 20
Get Part
67F8215110
Fuse
Diagram Reference: 21
Get Part
67F8215140
Fuse (10a)
Diagram Reference: 22
Get Part
68F8284600
Screw, pan head (m5)
Diagram Reference: 23
Get Part
9778050620
Screw, tapping
Diagram Reference: 24
Get Part
6EM8133600
Grommet
Diagram Reference: 25
Get Part
6EM8554400
Case
Diagram Reference: 26
Get Part
68F8217600
Damper
Diagram Reference: 27
Get Part
67F2812A00
Puller, fuse
Diagram Reference: 28
Get Part
6EM8191900
Graphic, regulator
Diagram Reference: 30
