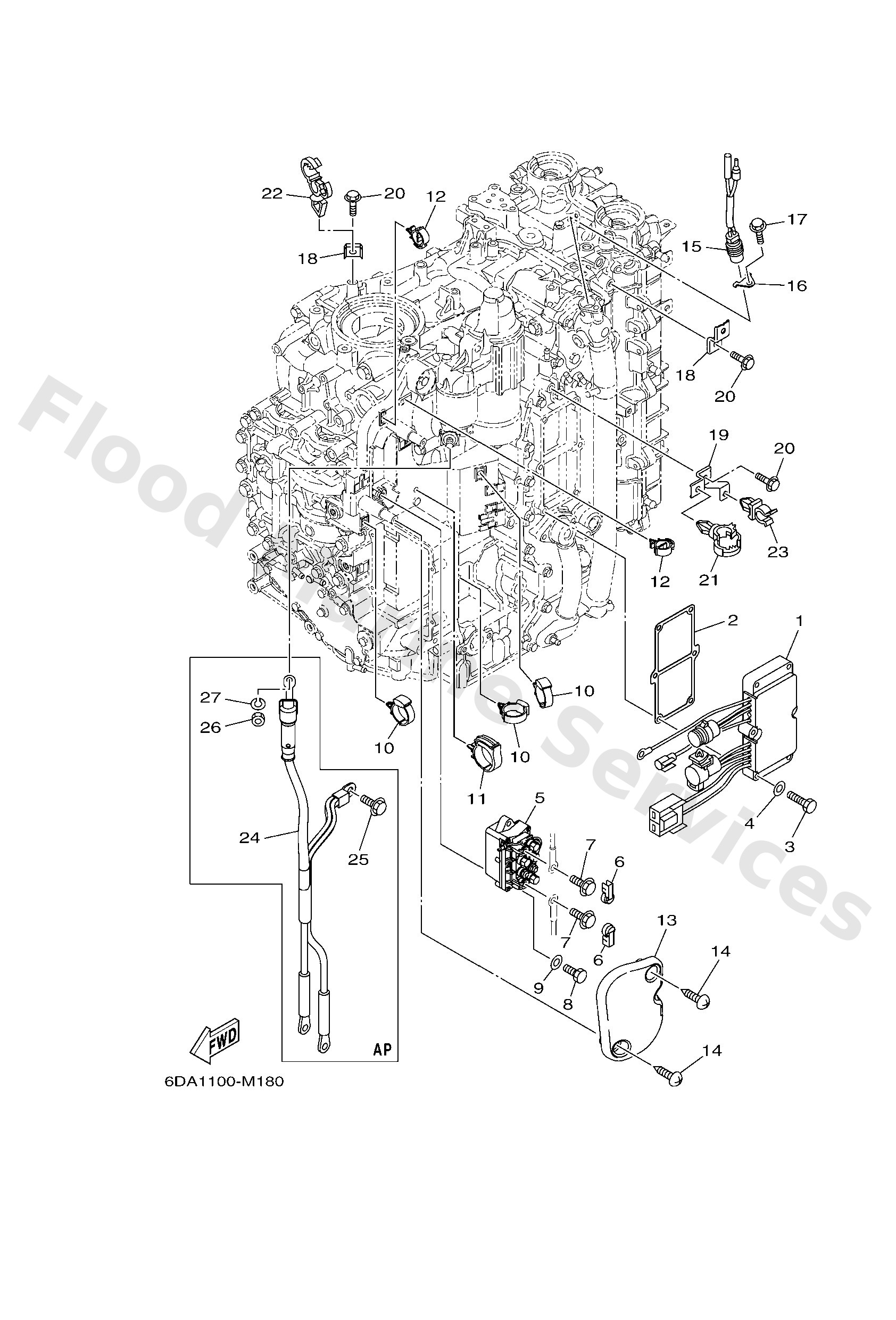

Diagram: ELECTRICAL 2

Diagram

Parts List

6DA8196000
Rectifier & regulator assembly
Diagram Reference: 1
Get Part
6DA8197500
Plate, rectifier fitting
Diagram Reference: 2
Get Part
9709506035
Bolt(j52)
Diagram Reference: 3
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 4
Get Part
63P8195000
Relay assembly
Diagram Reference: 5
Get Part
6P28183X00
Cap, terminal
Diagram Reference: 6
Get Part
9759506610
Bolt, hexagon w/w deep recess
Diagram Reference: 7
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 8
Get Part
9046412183
Clamp(jn2)
Diagram Reference: 10
Get Part
9046432002
Clamp
Diagram Reference: 11
Get Part
9046418246
Clamp(4tr)
Diagram Reference: 12
Get Part
6DA8194200
Cover
Diagram Reference: 13
Get Part
9016905M00
Screw truss head tapping
Diagram Reference: 14
Get Part
6P28256001
Thermo switch assembly
Diagram Reference: 15
Get Part
6E98258800
Plate
Diagram Reference: 16
Get Part
9589506012
Bolt, flange deep recess
Diagram Reference: 17
Get Part
6DA8238800
Plate
Diagram Reference: 18
Get Part
6DA8238900
Plate 2
Diagram Reference: 19
Get Part
9589506016
Bolt, flange deep recess
Diagram Reference: 20
Get Part
9046420181
Clamp(4ap)
Diagram Reference: 21
Get Part
9046413249
Clamp
Diagram Reference: 22
Get Part
9046409008
Clamp
Diagram Reference: 23
Get Part
6DA8210501 (AP)
Wire harness
Diagram Reference: 24
Get Part
9589508016 (AP)
Bolt, flange deep recess
Diagram Reference: 25
Get Part
9533308600 (AP)
Nut(6l2)
Diagram Reference: 26
Get Part
9290308100 (AP)
Ybs67-8 washer, spring
Diagram Reference: 27
Get Part
