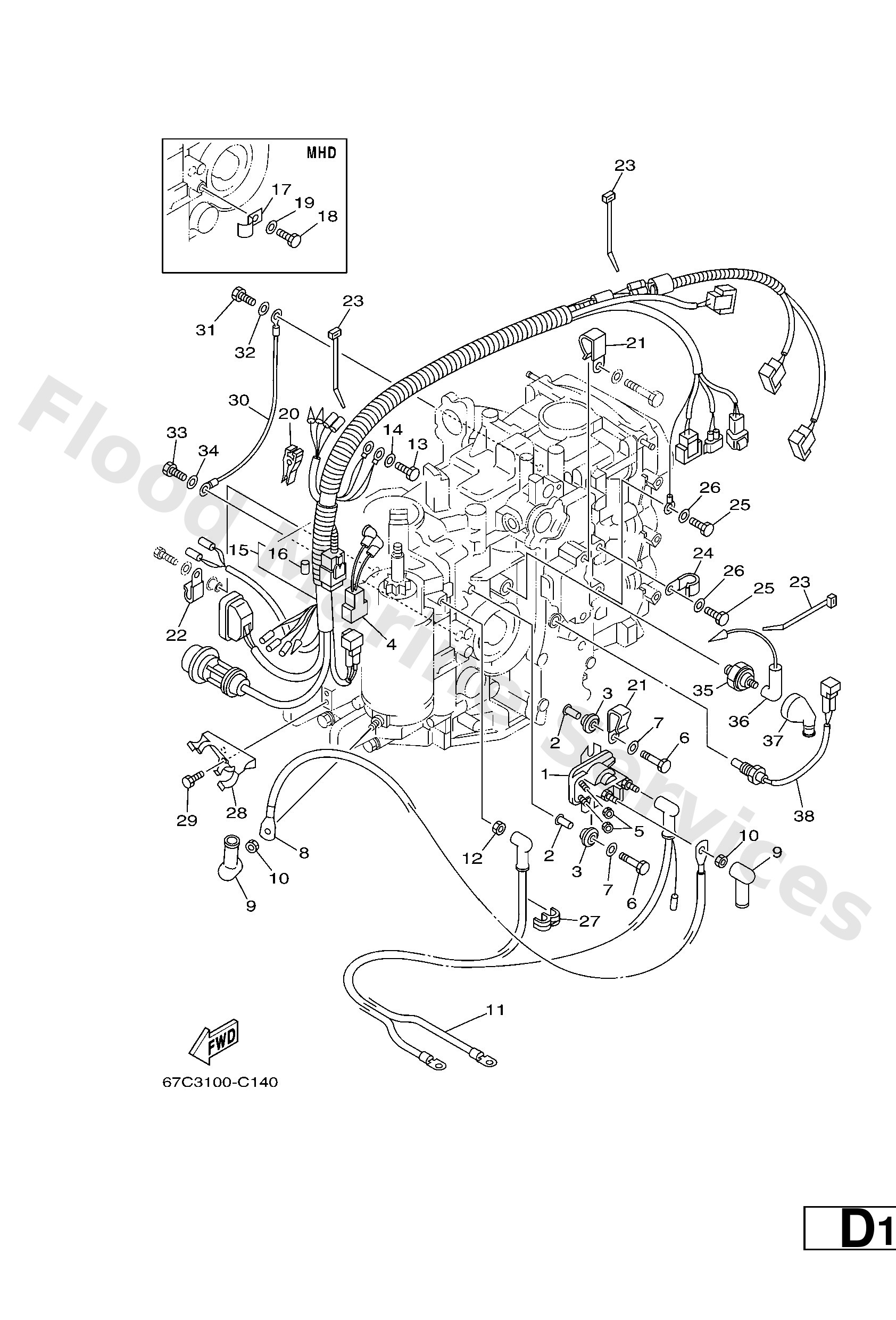

Diagram: ELECTRICAL 2

Diagram

Parts List

65W8194100
Starter relay assembly
Diagram Reference: 1
Get Part
65W8191C00
Collar
Diagram Reference: 2
Get Part
65W8192200
Grommet
Diagram Reference: 3
Get Part
67C8250900
Wire, sub lead
Diagram Reference: 4
Get Part
65W8182A00
Nut
Diagram Reference: 5
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 6
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 7
Get Part
65W8211700
Wire, lead
Diagram Reference: 8
Get Part
6G58211910
Cover, lead wire
Diagram Reference: 9
Get Part
65W8182B00
Nut, special
Diagram Reference: 10
Get Part
67C8210500
Battery cable
Diagram Reference: 11
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 13
Get Part
67C8259020
Wire Harness assembly
Diagram Reference: 15
Get Part
67C8259010
Wire harness assembly
Diagram Reference: 15
Get Part
67C8259000
Wire harness assembly
Diagram Reference: 15
Get Part
67F8215100
Fuse
Diagram Reference: 16
Get Part
9046508M63
Clamp(61u)
Diagram Reference: 17
Get Part
67F2812A00
Puller, fuse
Diagram Reference: 20
Get Part
9046505M87
Clamp
Diagram Reference: 21
Get Part
9046506M90
Clamp
Diagram Reference: 22
Get Part
9046513M18
Clamp
Diagram Reference: 23
Get Part
9046508M75
Clamp
Diagram Reference: 24
Get Part
9046410M57
Clamp
Diagram Reference: 27
Get Part
67C8259400
Clamp
Diagram Reference: 28
Get Part
9709505012
Bolt, hexagon
Diagram Reference: 29
Get Part
67C8251900
-
Diagram Reference: 30
Get Part
9709508012
Bolt, hexagon deep recess
Diagram Reference: 31
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 32
Get Part
65W8250400
Oil pressure switch assembly
Diagram Reference: 35
Get Part
65W8212700
Wire, lead 2
Diagram Reference: 36
Get Part
65W8253200
Cap
Diagram Reference: 37
Get Part
67C8579000
Thermosensor assembly
Diagram Reference: 38
Get Part
