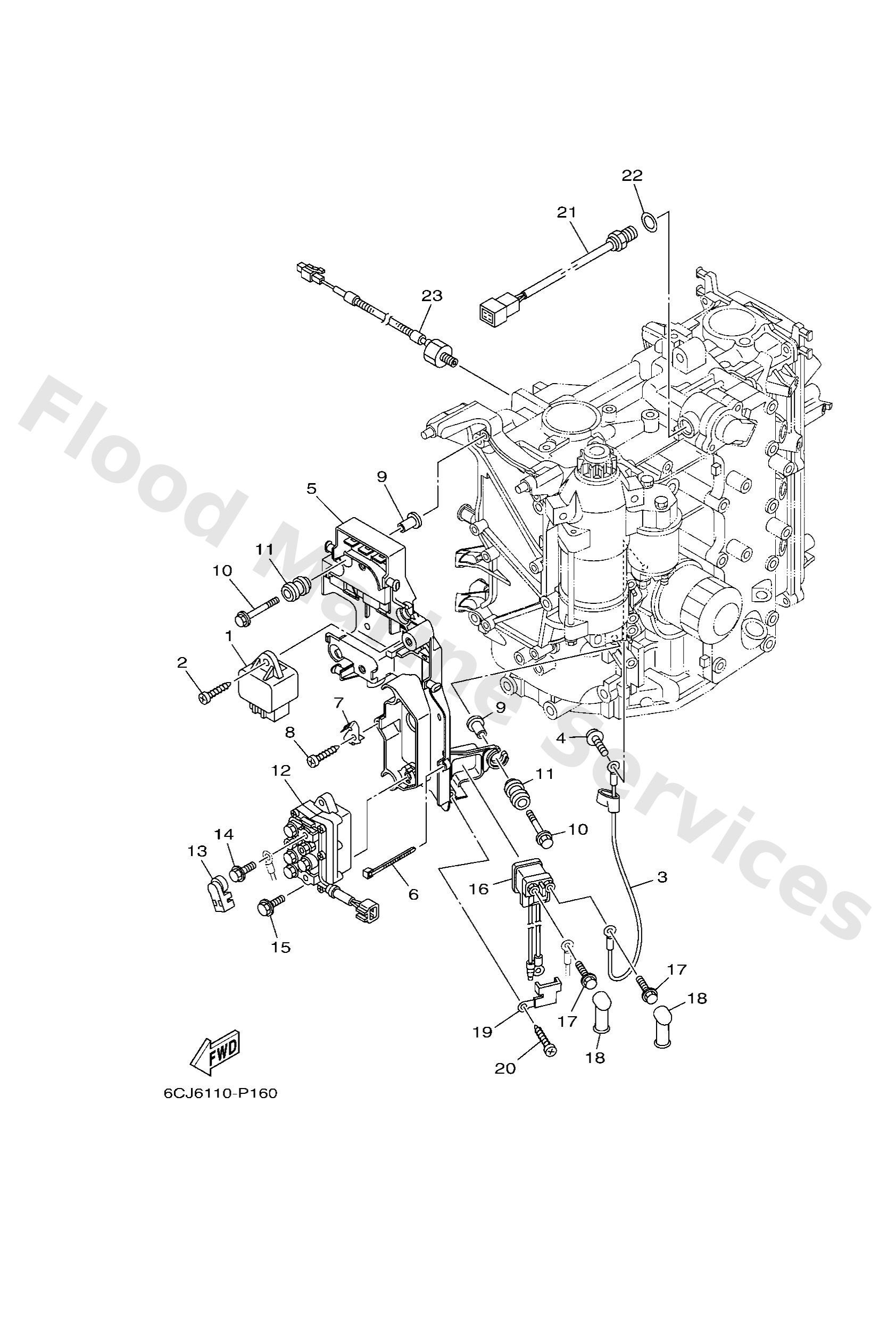

Diagram: ELECTRICAL 2

Diagram

Parts List

60E8195000
Relay assembly
Diagram Reference: 1
Get Part
9778060620
Screw, tapping(6k8)
Diagram Reference: 2
Get Part
6C58181500
Cord, starter motor
Diagram Reference: 3
Get Part
9015904005
Screw, with washer
Diagram Reference: 4
Get Part
6CJ8194800
Bracket
Diagram Reference: 5
Get Part
9046513M97
Clamp
Diagram Reference: 6
Get Part
6CJ8554800
Holder
Diagram Reference: 7
Get Part
9038706119
Collar
Diagram Reference: 9
Get Part
9011906M59
Bolt, with washer
Diagram Reference: 10
Get Part
6A08231700
Damper, ignition coil
Diagram Reference: 11
Get Part
63P8195000
Relay assembly
Diagram Reference: 12
Get Part
6P28183X00
Cap, terminal
Diagram Reference: 13
Get Part
9759506610
Bolt, hexagon w/w deep recess
Diagram Reference: 14
Get Part
9759506520
Bolt(7u8)
Diagram Reference: 15
Get Part
68V8194A00
Relay
Diagram Reference: 16
Get Part
6G58211900
Cover, lead wire
Diagram Reference: 18
Get Part
68F8195300
Stay, relay
Diagram Reference: 19
Get Part
6CJ8579000
Thermosensor assembly
Diagram Reference: 21
Get Part
9043014115
Gasket (663)
Diagram Reference: 22
Get Part
6CJ8578000
Sensor, knock
Diagram Reference: 23
Get Part
