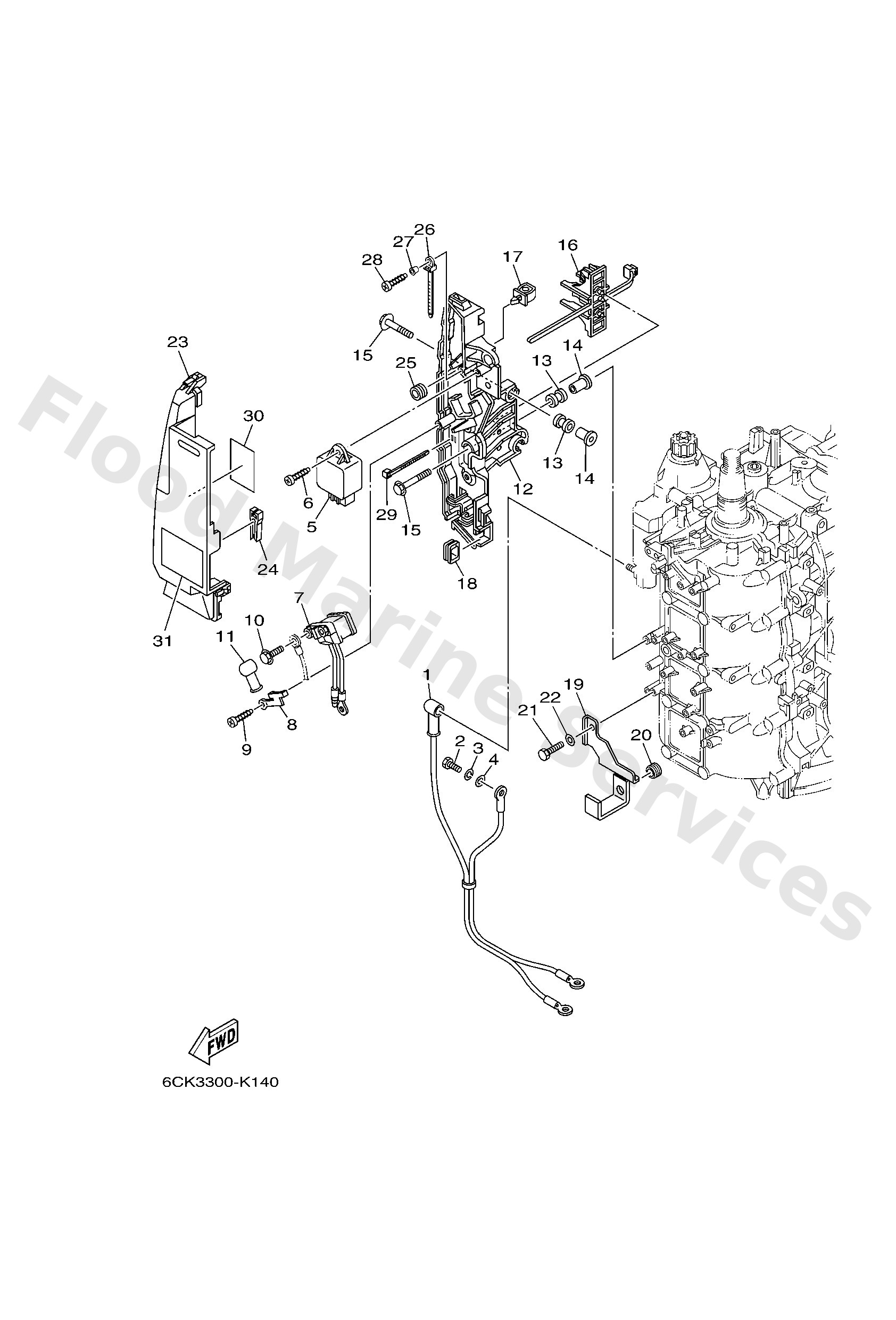

Diagram: ELECTRICAL 2

Diagram

Parts List

68V8210500
Battery cable
Diagram Reference: 1
Get Part
9701306020
Bolt(62y)
Diagram Reference: 2
Get Part
9290306100
Washer(6a1)
Diagram Reference: 3
Get Part
9290306600
Washer, plain (646)
Diagram Reference: 4
Get Part
60E8195000
Relay assembly
Diagram Reference: 5
Get Part
9778060625
Screw, tapping(65j)
Diagram Reference: 6
Get Part
68V8194A00
Relay
Diagram Reference: 7
Get Part
68V8195300
Stay, relay
Diagram Reference: 8
Get Part
9778060620
Screw, tapping(6k8)
Diagram Reference: 9
Get Part
9759506610
Bolt, hexagon w/w deep recess
Diagram Reference: 10
Get Part
6G58211900
Cover, lead wire
Diagram Reference: 11
Get Part
68V8194802
Bracket
Diagram Reference: 12
Get Part
6A08231700
Damper, ignition coil
Diagram Reference: 13
Get Part
9038706119
Collar
Diagram Reference: 14
Get Part
9011906M59
Bolt, with washer
Diagram Reference: 15
Get Part
68V8259400
Clamp
Diagram Reference: 16
Get Part
9046412M58
Clamp
Diagram Reference: 17
Get Part
6D88151800
Grommet
Diagram Reference: 18
Get Part
6D88152802
Clamp 1
Diagram Reference: 19
Get Part
9048013M24
Grommet (6e9)
Diagram Reference: 20
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 21
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 22
Get Part
68V8194203
Cover
Diagram Reference: 23
Get Part
67F2812A00
Puller, fuse
Diagram Reference: 24
Get Part
9046512M53
Clamp(62e)
Diagram Reference: 26
Get Part
9038706M05
Collar(6h4)
Diagram Reference: 27
Get Part
9046513M18
Clamp
Diagram Reference: 29
Get Part
6D88191900
Graphic, regulator
Diagram Reference: 30
Get Part
6D88191910
Graphic, regulator
Diagram Reference: 31
Get Part
