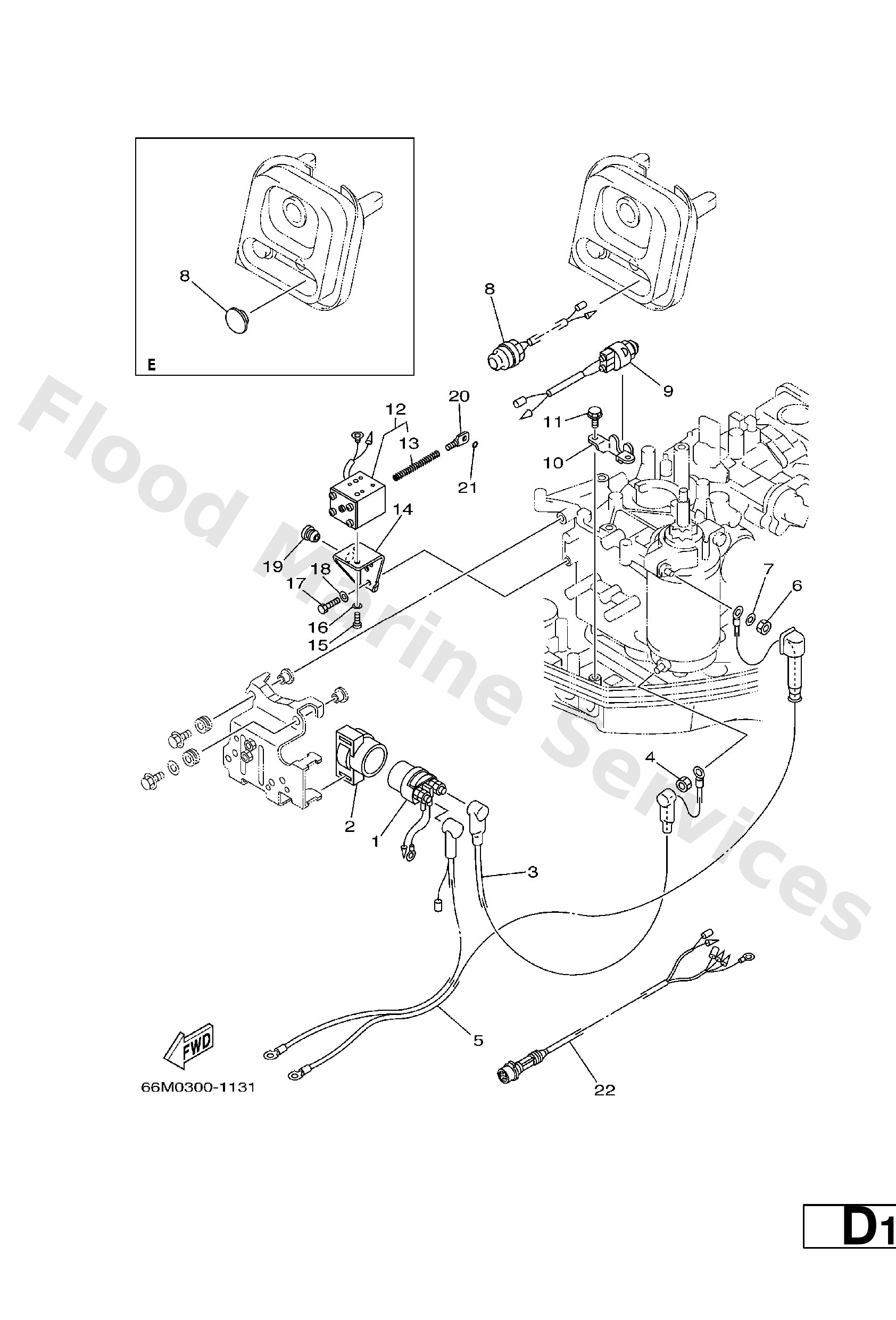

Diagram: ELECTRICAL 2

Diagram

Parts List

6G1−81941−10
Starter relay
Diagram Reference: 1
Get Part
6G1−81952−00
Holder, relay
Diagram Reference: 2
Get Part
66M−82117−00
Wire, lead
Diagram Reference: 3
Get Part
65W−8182B−00
Nut, special
Diagram Reference: 4
Get Part
66M−82105−00
Battery cable
Diagram Reference: 5
Get Part
95380−08700
Nut(661)
Diagram Reference: 6
Get Part
92990−08600
Washer, plain (663)
Diagram Reference: 7
Get Part
65W−81870−00
Starting switch assembly
Diagram Reference: 8
Get Part
6G1−42725−00
Grommet
Diagram Reference: 8
Get Part
6H3−82540−00
Neutral switch assembly
Diagram Reference: 9
Get Part
6J8−82554−00
Stay, neutral switch
Diagram Reference: 10
Get Part
90109−06M86
Bolt
Diagram Reference: 11
Get Part
66M−86111−00
Coil, solenoid
Diagram Reference: 12
Get Part
66M−86116−00
Wire, Pull
Diagram Reference: 13
Get Part
66M−86112−00
Stay, Solenoid
Diagram Reference: 14
Get Part
97880−05008
Screw, with washer
Diagram Reference: 15
Get Part
92990−05600
Washer, plain (646)
Diagram Reference: 16
Get Part
97095−06016
Bolt, hexagon deep recess
Diagram Reference: 17
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 18
Get Part
90480−10M13
Grommet (6e0)
Diagram Reference: 19
Get Part
66M−86117−00
Hook, wire pull
Diagram Reference: 20
Get Part
93210−03261
O-ring (663)
Diagram Reference: 21
Get Part
66M−82590−00
Wire Harness assembly
Diagram Reference: 22
Get Part
