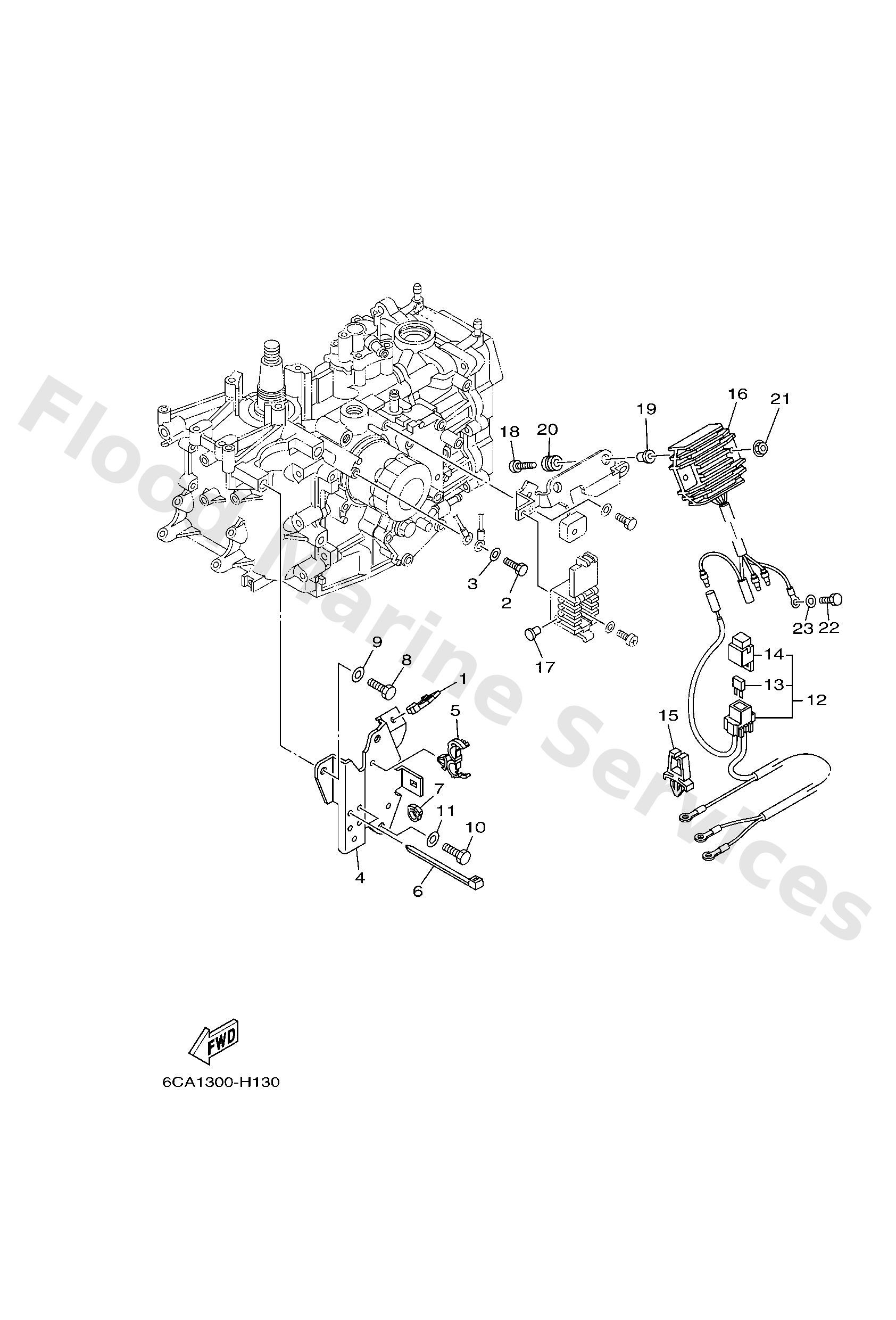

Diagram: ELECTRICAL 2

Diagram

Parts List

9046408004
Clamp
Diagram Reference: 1
Get Part
9709506014 (AP)
Bolt(gj3)
Diagram Reference: 22
Get Part
9299506600 (AP)
Washer, plain (646)
Diagram Reference: 23
Get Part
6AH8239800
Plate 3
Diagram Reference: 4
Get Part
9046418246
Clamp(4tr)
Diagram Reference: 5
Get Part
9046513M18
Clamp
Diagram Reference: 6
Get Part
9046409010
Clamp
Diagram Reference: 7
Get Part
9709508025
Bolt (62g)
Diagram Reference: 8
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 9
Get Part
9709508016
Bolt, hexagon deep recess
Diagram Reference: 10
Get Part
6AH8194900 (AP)
Wire, lead
Diagram Reference: 12
Get Part
67F8215100
Fuse
Diagram Reference: 13
Get Part
67F8215B00
Cap (black)
Diagram Reference: 14
Get Part
9046406001 (AP)
Clamp
Diagram Reference: 15
Get Part
6AH8196000 (AP)
Rectifier & regulator assembly
Diagram Reference: 16
Get Part
7038211900 (AP)
Cover, lead wire
Diagram Reference: 17
Get Part
9898006030 (AP)
Screw, bind(j39)
Diagram Reference: 18
Get Part
9038706M70 (AP)
Collar (6h5)
Diagram Reference: 19
Get Part
9048013M24 (AP)
Grommet (6e9)
Diagram Reference: 20
Get Part
9578006500 (AP)
Nut, flange(7nb)
Diagram Reference: 21
Get Part
