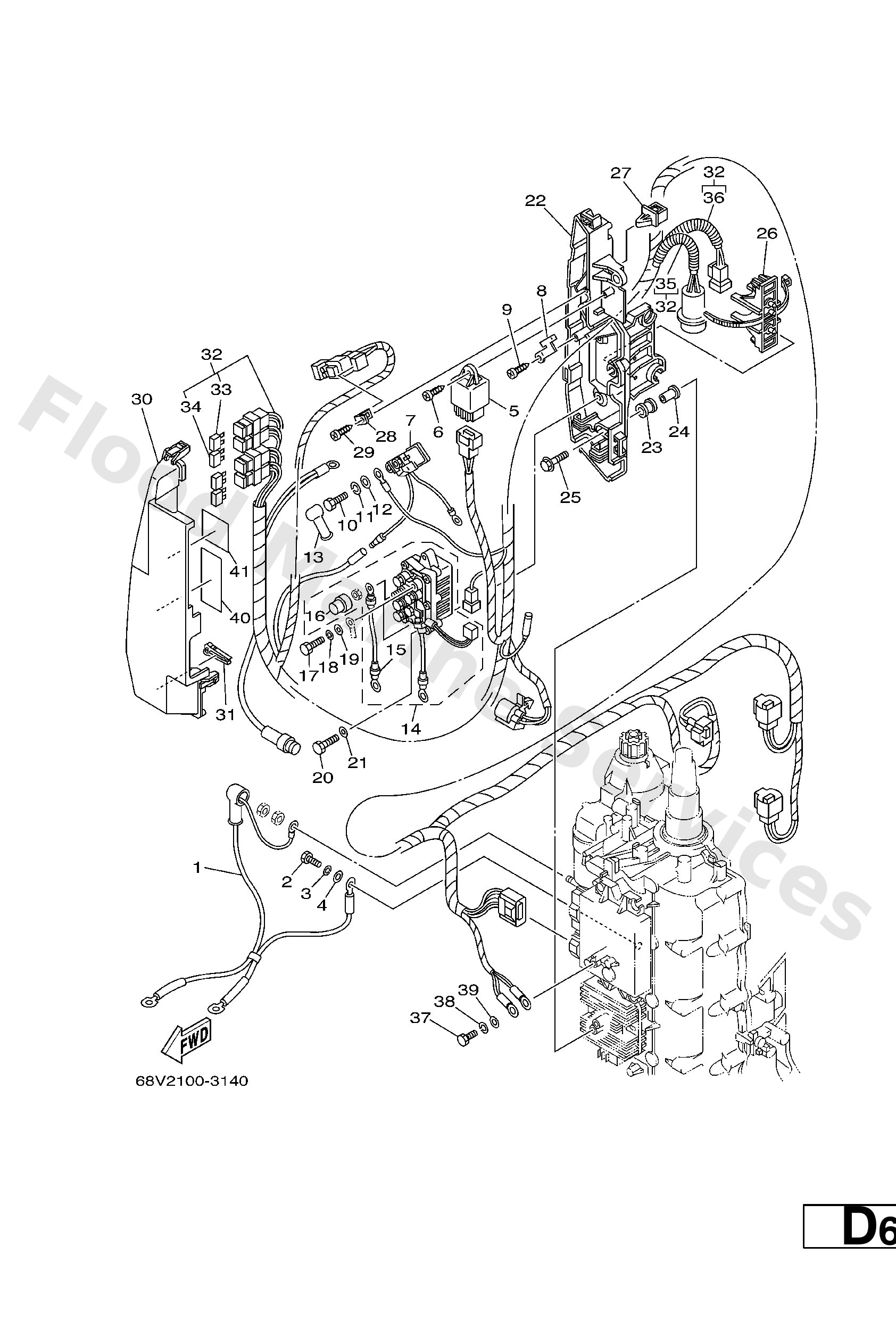

Diagram: ELECTRICAL 2
Parts List
Battery cable
Diagram Reference: 1
Bolt(62y)
Diagram Reference: 2
Washer(6a1)
Diagram Reference: 3
Washer, plain (646)
Diagram Reference: 4
Relay assembly
Diagram Reference: 5
Screw, tapping(65j)
Diagram Reference: 6
Relay
Diagram Reference: 7
Stay, relay
Diagram Reference: 8
Screw, tapping(6k8)
Diagram Reference: 9
Bolt
Diagram Reference: 10
Washer(6a1)
Diagram Reference: 11
Washer, plain (646)
Diagram Reference: 12
Cover, lead wire
Diagram Reference: 13
Relay assembly
Diagram Reference: 14
Wire, lead
Diagram Reference: 15
Cap
Diagram Reference: 16
Bracket
Diagram Reference: 22
Damper, ignition coil
Diagram Reference: 23
Collar
Diagram Reference: 24
Bolt, with washer
Diagram Reference: 25
Clamp
Diagram Reference: 26
Clamp
Diagram Reference: 27
Holder
Diagram Reference: 28
Cover
Diagram Reference: 30
Puller, fuse
Diagram Reference: 31
14 −
Diagram Reference: 32
Fuse
Diagram Reference: 33
Fuse
Diagram Reference: 34
Hose, with spring
Diagram Reference: 35
Hose, with spring
Diagram Reference: 36
Bolt(7u8)
Diagram Reference: 37
Graphic, regulator
Diagram Reference: 40
Graphic, regulator
Diagram Reference: 41
