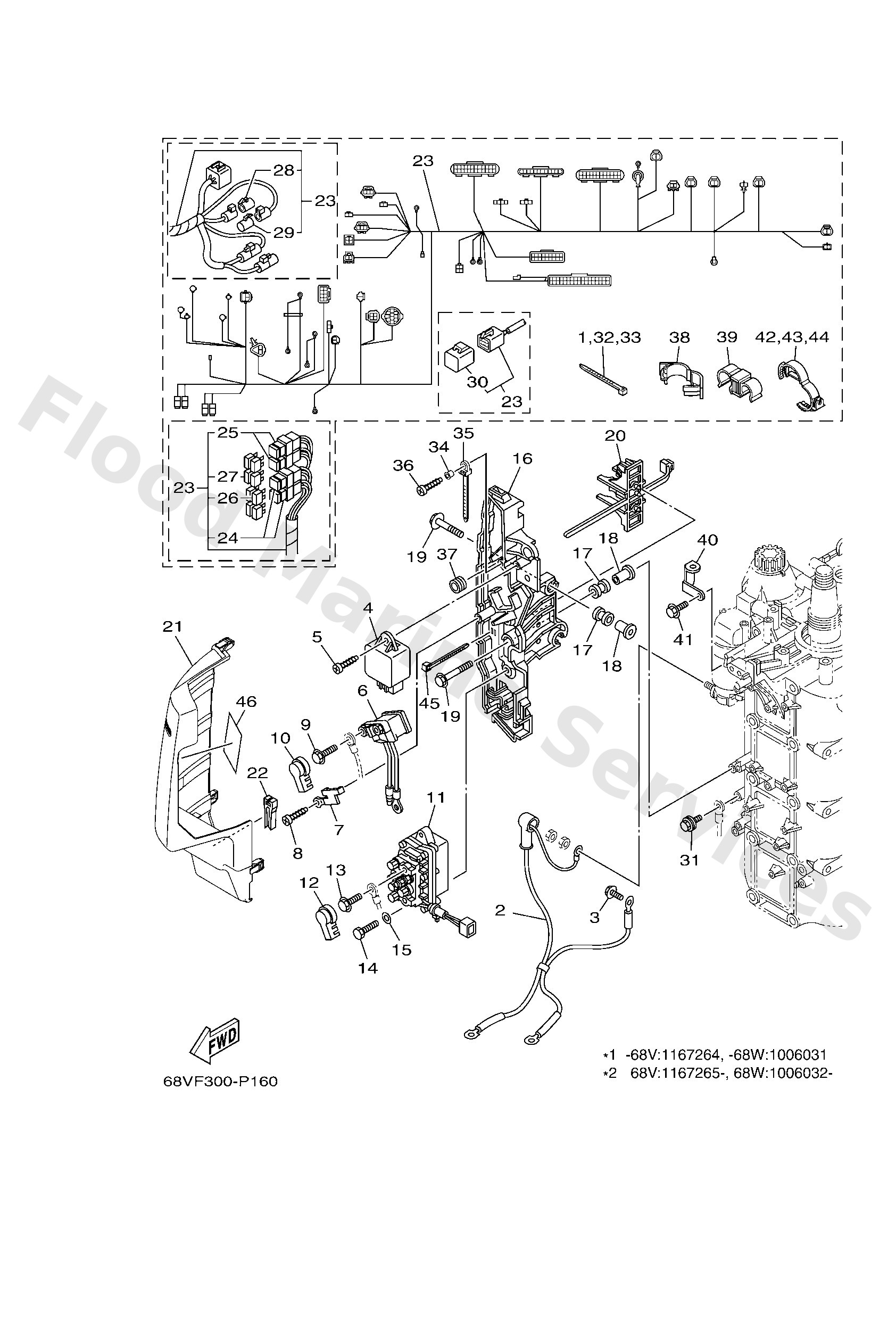

Diagram: ELECTRICAL 2

Diagram

Parts List

9046513M18
Clamp
Diagram Reference: 1
Get Part
68V8210501
Battery cable
Diagram Reference: 2
Get Part
9010506M14
Bolt (6e0)
Diagram Reference: 3
Get Part
60E8195000
Relay assembly
Diagram Reference: 4
Get Part
9778060625
Screw, tapping(65j)
Diagram Reference: 5
Get Part
68V8194A00
Relay
Diagram Reference: 6
Get Part
68F8195300
Stay, relay
Diagram Reference: 7
Get Part
9778060620
Screw, tapping(6k8)
Diagram Reference: 8
Get Part
9759506610
Bolt, hexagon w/w deep recess
Diagram Reference: 9
Get Part
6P28183X00
Cap, terminal
Diagram Reference: 10
Get Part
63P8195000
Relay assembly
Diagram Reference: 11
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 14
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 15
Get Part
68V8194803
Bracket
Diagram Reference: 16
Get Part
6A08231700
Damper, ignition coil
Diagram Reference: 17
Get Part
9038706119
Collar
Diagram Reference: 18
Get Part
9011906M59
Bolt, with washer
Diagram Reference: 19
Get Part
68V8259400
Clamp
Diagram Reference: 20
Get Part
68V8194211
Cover
Diagram Reference: 21
Get Part
67F2812A00
Puller, fuse
Diagram Reference: 22
Get Part
68V8259090 (*2)
Wire harness assembly
Diagram Reference: 23
Get Part
68V8259071 (*1)
Wire harness assembly
Diagram Reference: 23
Get Part
67F8215B10
Cap (yellow)
Diagram Reference: 24
Get Part
67F8215B20
Cap (green)
Diagram Reference: 25
Get Part
67F8215100
Fuse
Diagram Reference: 26
Get Part
67F8215110
Fuse
Diagram Reference: 27
Get Part
6DA8258200
Cap 1 (female)
Diagram Reference: 28
Get Part
6DA8258210
Cap 1 (male)
Diagram Reference: 29
Get Part
6Y88258211
White cap 1 (4pin)
Diagram Reference: 30
Get Part
9759506616
Bolt, hexagon w/w deep recess
Diagram Reference: 31
Get Part
9038706M05
Collar(6h4)
Diagram Reference: 34
Get Part
9046512M53
Clamp(62e)
Diagram Reference: 35
Get Part
9046418004
Clamp
Diagram Reference: 38
Get Part
9046412010
Clamp
Diagram Reference: 39
Get Part
6D88258101
Stay, cord clamp
Diagram Reference: 40
Get Part
9759506514
Bolt(gj3)
Diagram Reference: 41
Get Part
9046430003
Clamp
Diagram Reference: 42
Get Part
9046513M11
Clamp (6e5)
Diagram Reference: 45
Get Part
68V8191910
Graphic, regulator
Diagram Reference: 46
