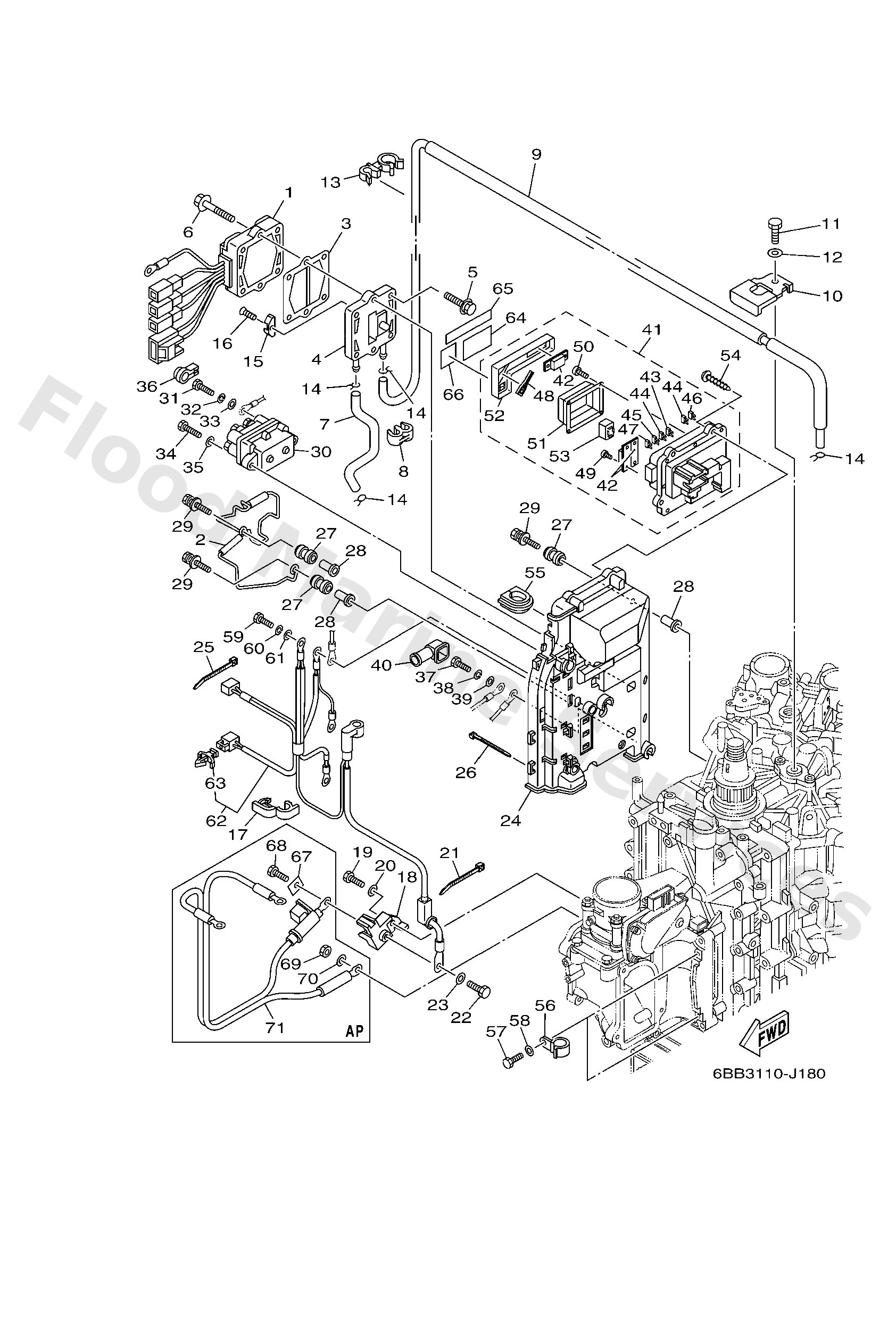

Diagram: ELECTRICAL 2

Diagram

Parts List

6P28196002
Rectifier & regulator assembly
Diagram Reference: 1
Get Part
6P28161400
Protector
Diagram Reference: 2
Get Part
60V81975A0
Plate, rectifier fitting
Diagram Reference: 3
Get Part
6P281972009S
Cover, rectifier
Diagram Reference: 4
Get Part
9011906MA3
3
Diagram Reference: 5
Get Part
9011906MA5
3
Diagram Reference: 6
Get Part
9044509304
Hose (L310)
Diagram Reference: 7
Get Part
9046409M21
Clamp
Diagram Reference: 8
Get Part
6P21248100
Pipe 1
Diagram Reference: 9
Get Part
6P21249100
Clamp 1
Diagram Reference: 10
Get Part
9709506012
Bolt
Diagram Reference: 11
Get Part
9299506600
10
Diagram Reference: 12
Get Part
9046421002
Clamp
Diagram Reference: 13
Get Part
9046708M18
Clip
Diagram Reference: 14
Get Part
6E51132500
1
Diagram Reference: 15
Get Part
9878004015
2
Diagram Reference: 16
Get Part
9046418004
Clamp
Diagram Reference: 17
Get Part
6P28192501
Terminal
Diagram Reference: 18
Get Part
9709508020
Bolt
Diagram Reference: 19
Get Part
9299508600
17
Diagram Reference: 20
Get Part
9046513M18
Clamp
Diagram Reference: 21
Get Part
9709508016 (AP)
Bolt
Diagram Reference: 68
Get Part
6P28194800
Bracket
Diagram Reference: 24
Get Part
9046514M66
Clamp
Diagram Reference: 26
Get Part
6A08231700
Damper, Ignition Coil
Diagram Reference: 27
Get Part
9038706119
Collar
Diagram Reference: 28
Get Part
9011906M95
Bolt, with washer
Diagram Reference: 29
Get Part
63P8195000
Relay Assy
Diagram Reference: 30
Get Part
9709506010
Bolt
Diagram Reference: 31
Get Part
9299506100
Washer, Spring
Diagram Reference: 32
Get Part
9701306025
Bolt
Diagram Reference: 34
Get Part
9290306600
Washer, Plate
Diagram Reference: 35
Get Part
6P28183X00
Cap, Terminal
Diagram Reference: 36
Get Part
9709506020
Bolt
Diagram Reference: 37
Get Part
6P28211900
Cover, lead wire
Diagram Reference: 40
Get Part
6P28217001
Fuse box assembly
Diagram Reference: 41
Get Part
6P28215100
17
Diagram Reference: 42
Get Part
67F8215100
Fuse (20A)
Diagram Reference: 43
Get Part
67F8215110
Fuse (30A)
Diagram Reference: 44
Get Part
67F8215120
Fuse
Diagram Reference: 45
Get Part
67F8215140
17
Diagram Reference: 46
Get Part
67F8215150
17
Diagram Reference: 47
Get Part
67F2812A00
Puller, Fuse
Diagram Reference: 48
Get Part
68F8284600
Screw, Pan Head (M5)
Diagram Reference: 49
Get Part
6P28211300
17
Diagram Reference: 50
Get Part
6P28163900
Cover
Diagram Reference: 51
Get Part
6P28554400
Case
Diagram Reference: 52
Get Part
68F8195A00
Relay Assy
Diagram Reference: 53
Get Part
9778050620
Screw, Tapping
Diagram Reference: 54
Get Part
6P28133600
Grommet
Diagram Reference: 55
Get Part
9046208026
Clamp
Diagram Reference: 56
Get Part
9709506016
Bolt
Diagram Reference: 57
Get Part
6P28259M00
Wire harness assembly 2
Diagram Reference: 62
Get Part
9046409M47
Clamp
Diagram Reference: 63
Get Part
6P28191910
-
Diagram Reference: 64
Get Part
6P28191920
-
Diagram Reference: 65
Get Part
6P28191931
Graphic, regulator
Diagram Reference: 66
Get Part
6P28192300 (AP)
Washer
Diagram Reference: 67
Get Part
9533308600 (AP)
20
Diagram Reference: 69
Get Part
9290308100 (AP)
Washer, Spring
Diagram Reference: 70
Get Part
6P28210501 (AP)
Wire harness
Diagram Reference: 71
Get Part
