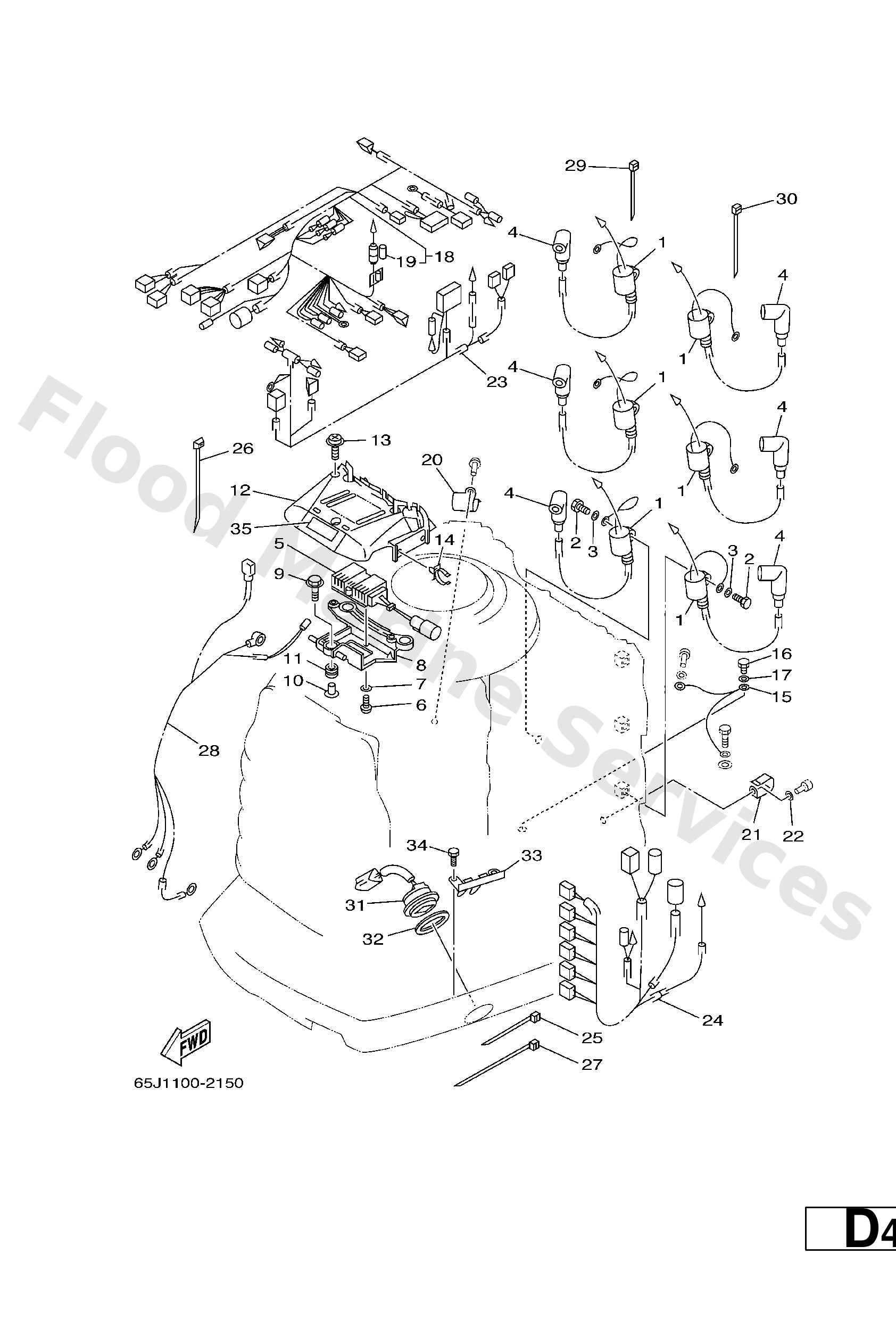

Diagram: ELECTRICAL 2

Diagram

Parts List

61A--85570--00
Ignition coil assembly
Diagram Reference: 1
Get Part
97013--06020
Bolt(62y)
Diagram Reference: 2
Get Part
92903--06600
Washer, plain (646)
Diagram Reference: 3
Get Part
6E3--82370--21
Plug cap assembly
Diagram Reference: 4
Get Part
65L--85370--00
Resistor assembly
Diagram Reference: 5
Get Part
97885--05010
Screw, pan head(62x)
Diagram Reference: 6
Get Part
92995--05600
Washer, plain (646)
Diagram Reference: 7
Get Part
65L819150094
Plate, Regulator Fitting
Diagram Reference: 8
Get Part
90119--06M65
Bolt, with washer
Diagram Reference: 9
Get Part
90387--06M60
Collar (6h3)
Diagram Reference: 10
Get Part
90480--10M23
Grommet(6k7)
Diagram Reference: 11
Get Part
65L8191600
Cover, Terminal
Diagram Reference: 12
Get Part
90159--06M03
Screw (6g5)
Diagram Reference: 13
Get Part
90464--19M45
Clamp(65j)
Diagram Reference: 14
Get Part
61A--82531--00
Wire, lead
Diagram Reference: 15
Get Part
97095--06012
Bolt(gh1)
Diagram Reference: 16
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 17
Get Part
65L8259010
Wire Harness assembly
Diagram Reference: 18
Get Part
65L8215100
Fuse
Diagram Reference: 19
Get Part
90465--08M89
Clamp
Diagram Reference: 20
Get Part
90465--05M87
Clamp
Diagram Reference: 21
Get Part
65L--8259M--00
Wire Harness assembly 2
Diagram Reference: 23
Get Part
65L8259N01
Wire Harness assembly 3
Diagram Reference: 24
Get Part
90465--11M10
Clamp
Diagram Reference: 25
Get Part
90465--11M52
Clamp(6e7)
Diagram Reference: 26
Get Part
90465--13M18
Clamp
Diagram Reference: 27
Get Part
61A--82105--00
Battery cable
Diagram Reference: 28
Get Part
61A--82563--00
Trim & tilt switch assembly
Diagram Reference: 31
Get Part
6E5--82587--00
Gasket
Diagram Reference: 32
Get Part
61A--83614--00
Bracket
Diagram Reference: 33
Get Part
65L8362550
Mark 5
Diagram Reference: 35
Get Part
