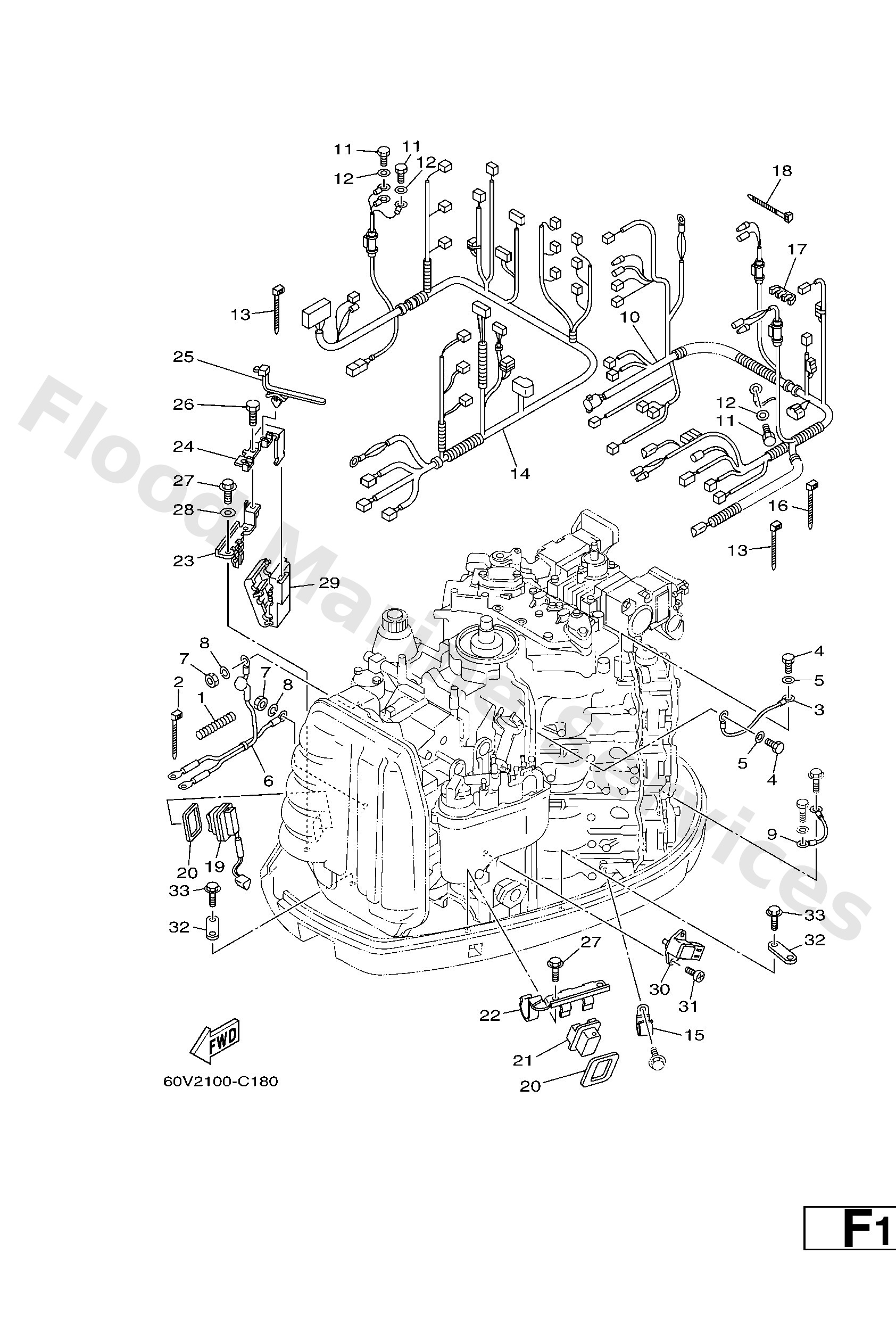

Diagram: ELECTRICAL 2

Diagram

Parts List

9044707011
Hose, with spring
Diagram Reference: 1
Get Part
9046511M10
Clamp
Diagram Reference: 2
Get Part
61A8194900
Wire, lead
Diagram Reference: 3
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 4
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 5
Get Part
60V8210500
Battery cable
Diagram Reference: 6
Get Part
9533308600
Nut(6l2)
Diagram Reference: 7
Get Part
9290308100
Ybs67-8 washer, spring
Diagram Reference: 8
Get Part
6E58253110
Wire, lead
Diagram Reference: 9
Get Part
60V8259020 (FOR USA)
Wire harness assembly
Diagram Reference: 10
Get Part
60V8259030 (EXCEPT FOR USA)
Wire Harness assembly
Diagram Reference: 10
Get Part
9046511M52
Clamp(6e7)
Diagram Reference: 13
Get Part
60V8259M00
Wire Harness assembly 2
Diagram Reference: 14
Get Part
9046505M87
Clamp
Diagram Reference: 15
Get Part
9046411008
Clamp
Diagram Reference: 17
Get Part
69J8256300
Trim & tilt switch assembly
Diagram Reference: 19
Get Part
69J8258700
Gasket
Diagram Reference: 20
Get Part
69J4272300
Cover, Bottom
Diagram Reference: 21
Get Part
60V8361400
Bracket
Diagram Reference: 22
Get Part
60V8361410
Bracket
Diagram Reference: 23
Get Part
60V8363510
Bracket
Diagram Reference: 24
Get Part
9046420213
Clamp(4kj)
Diagram Reference: 25
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 26
Get Part
9010906M86
Bolt
Diagram Reference: 27
Get Part
60V8361800
Plate
Diagram Reference: 28
Get Part
68F8363400
Grommet
Diagram Reference: 29
Get Part
67H8238000
Sensor, pressure
Diagram Reference: 30
Get Part
9858006520
Screw pan head
Diagram Reference: 31
Get Part
6E58258800
Plate
Diagram Reference: 32
Get Part
9589506020
Bolt, flange(jk3)
Diagram Reference: 33
