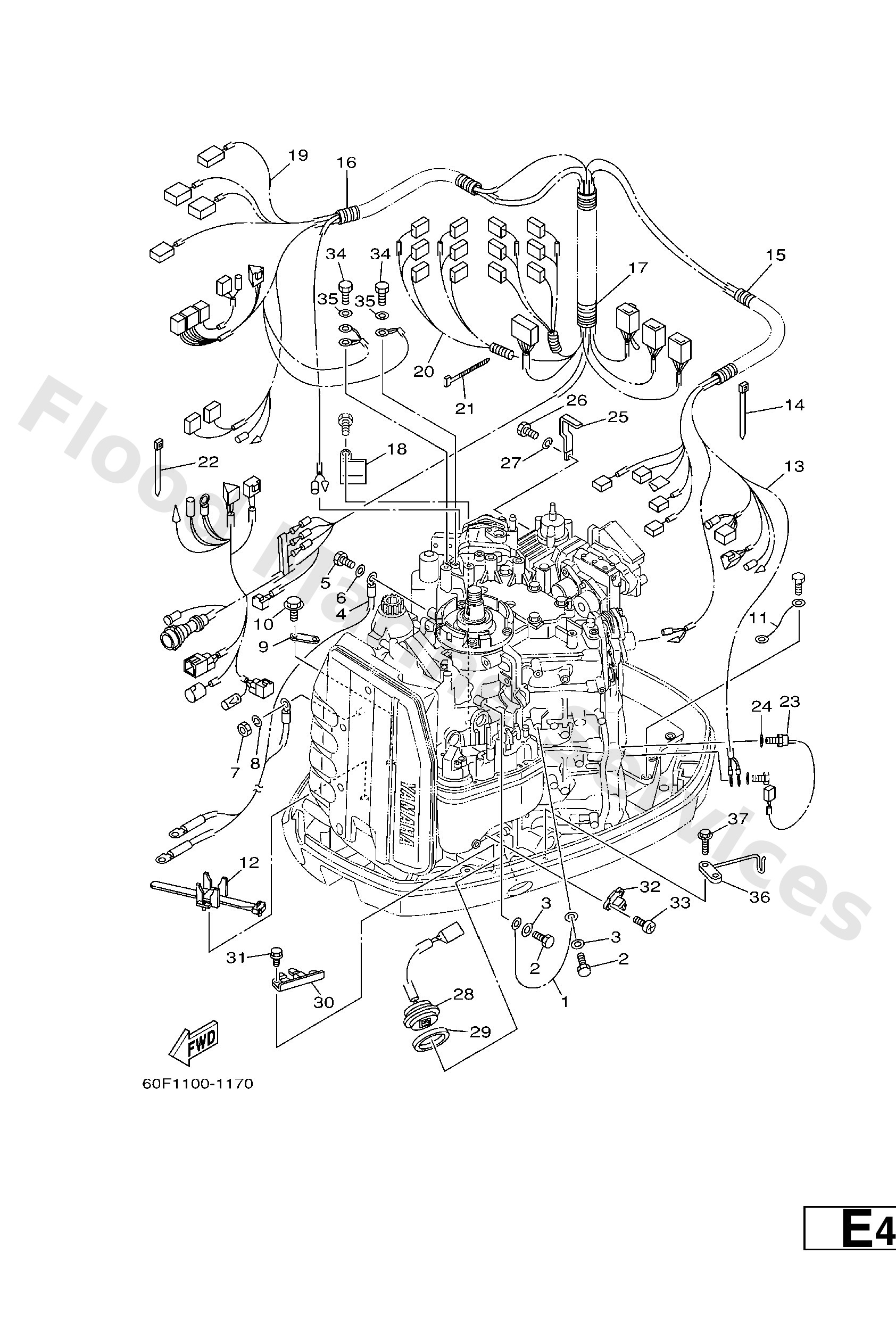

Diagram: ELECTRICAL 2

Diagram

Parts List

6H28194911
Wire, lead
Diagram Reference: 1
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 2
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 3
Get Part
68F8210500
Battery cable
Diagram Reference: 4
Get Part
9709508016
Bolt, hexagon deep recess
Diagram Reference: 5
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 6
Get Part
9533308600
Nut(6l2)
Diagram Reference: 7
Get Part
9290308100
Ybs67-8 washer, spring
Diagram Reference: 8
Get Part
6E58258800
Plate
Diagram Reference: 9
Get Part
9589506020
Bolt, flange(jk3)
Diagram Reference: 10
Get Part
6E58253110
Wire, lead
Diagram Reference: 11
Get Part
6888259400
Clamp
Diagram Reference: 12
Get Part
68F8259010
Wire Harness assembly
Diagram Reference: 13
Get Part
9046511M52
Clamp(6e7)
Diagram Reference: 14
Get Part
9044624MF6
Hose
Diagram Reference: 15
Get Part
9044624MF7
Hose
Diagram Reference: 16
Get Part
9044634MF8
Hose
Diagram Reference: 17
Get Part
9046508M89
Clamp
Diagram Reference: 18
Get Part
68F8259M00
Wire Harness assembly 2
Diagram Reference: 19
Get Part
68F8259N00
Wire Harness assembly 3
Diagram Reference: 20
Get Part
9046511M10
Clamp
Diagram Reference: 21
Get Part
61A8579000
Thermosensor assembly
Diagram Reference: 23
Get Part
9299010600
Washer, plate
Diagram Reference: 24
Get Part
9046512M93
Clamp
Diagram Reference: 25
Get Part
9299506100
Washer(6a1)
Diagram Reference: 27
Get Part
6R38256300
Trim & tilt switch assembly
Diagram Reference: 28
Get Part
6E58258700
Gasket
Diagram Reference: 29
Get Part
6R38361400
Bracket
Diagram Reference: 30
Get Part
9010906M80
Bolt
Diagram Reference: 31
Get Part
67H8238000
Sensor, pressure
Diagram Reference: 32
Get Part
9858006520
Screw pan head
Diagram Reference: 33
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 34
Get Part
6K78258800
Plate
Diagram Reference: 36
