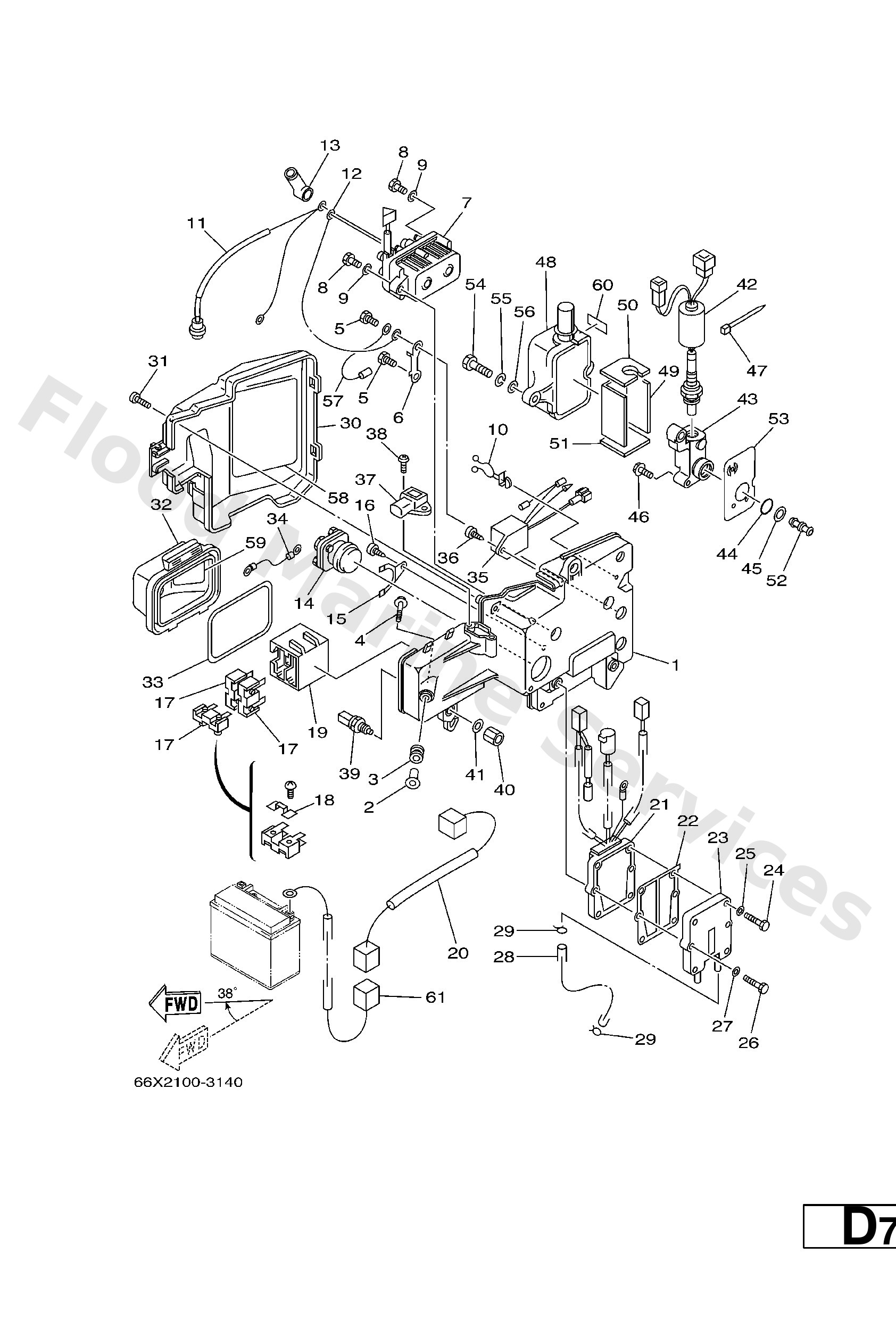

Diagram: ELECTRICAL 3

Diagram

Parts List

65L−81948−00
Bracket
Diagram Reference: 1
Get Part
624−42542−00
Collar
Diagram Reference: 2
Get Part
6A0−82317−00
Damper, ignition coil
Diagram Reference: 3
Get Part
90119−06M65
Bolt, with washer
Diagram Reference: 4
Get Part
97013−06014
Bolt(gj3)
Diagram Reference: 5
Get Part
61A−87149−00
Connector
Diagram Reference: 6
Get Part
61A−81950−00
Relay assembly
Diagram Reference: 7
Get Part
97013−06030
Bolt
Diagram Reference: 8
Get Part
92903−06600
Washer, plain (646)
Diagram Reference: 9
Get Part
90464−18M46
Clamp(65j)
Diagram Reference: 10
Get Part
61A−81949−10
Wire, lead
Diagram Reference: 11
Get Part
61A−81949−00
Wire, lead
Diagram Reference: 12
Get Part
6G5−82119−00
Cover, lead wire
Diagram Reference: 13
Get Part
61A−81941−00
Starter relay assembly
Diagram Reference: 14
Get Part
61A−81952−00
Holder, relay
Diagram Reference: 15
Get Part
97780−50612
Screw, tapping(61a)
Diagram Reference: 16
Get Part
61A−82150−00
Fuse holder assembly
Diagram Reference: 17
Get Part
61A−82151−00
Fuse(12v-80a)
Diagram Reference: 18
Get Part
61A−82153−00
Stay, fuse holder
Diagram Reference: 19
Get Part
66K−81949−10
Wire, Lead
Diagram Reference: 20
Get Part
61A−81960−02
Rectifier & regulator assembly
Diagram Reference: 21
Get Part
69J−81975−A0
Plate, rectifier fitting
Diagram Reference: 22
Get Part
69J−81972−01−1S
Cover, rectifier
Diagram Reference: 23
Get Part
97013−06025
Bolt(62y)
Diagram Reference: 24
Get Part
90445−09224
Hose (l1500)
Diagram Reference: 28
Get Part
90467−08004
Clip, pipe 6162435600
Diagram Reference: 29
Get Part
65L−81942−00
Cover
Diagram Reference: 30
Get Part
90169−05M00
Screw truss head tapping
Diagram Reference: 31
Get Part
61A−82154−01
Case
Diagram Reference: 32
Get Part
61A−82176−00
Damper
Diagram Reference: 33
Get Part
61A−82117−00
Wire, lead
Diagram Reference: 34
Get Part
65L−81950−01
Relay assembly
Diagram Reference: 35
Get Part
97780−60625
Screw, tapping(65j)
Diagram Reference: 36
Get Part
67H−82380−00
Sensor, pressure
Diagram Reference: 37
Get Part
65L−85886−00
Thermosensor
Diagram Reference: 39
Get Part
90170−12M36
Nut
Diagram Reference: 40
Get Part
90201−12M34
Washer (692)
Diagram Reference: 41
Get Part
65L−8592A−01
Sensor
Diagram Reference: 42
Get Part
69L−11395−00
15 −
Diagram Reference: 43
Get Part
93210−17003
O-ring
Diagram Reference: 44
Get Part
69L−11397−00
Gasket
Diagram Reference: 45
Get Part
90119−06M74
Bolt, with washer(63m)
Diagram Reference: 46
Get Part
90465−13M18
Clamp
Diagram Reference: 47
Get Part
65L−85832−00
Case, under
Diagram Reference: 48
Get Part
65L−11354−00
Gasket
Diagram Reference: 49
Get Part
65L−1131N−00
Gasket, holder
Diagram Reference: 50
Get Part
65L−11396−00
Gasket, holder
Diagram Reference: 51
Get Part
65L−11353−11
Joint
Diagram Reference: 52
Get Part
69L−11357−00
Seal, cylinder 3
Diagram Reference: 53
Get Part
97095−06030
Bolt(jf7)
Diagram Reference: 54
Get Part
92995−06100
Washer(6a1)
Diagram Reference: 55
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 56
Get Part
66K−82519−00
15 −
Diagram Reference: 57
Get Part
65L−81919−00
Graphic, Regulator
Diagram Reference: 58
Get Part
61A−81919−00
Graphic, Regulator
Diagram Reference: 59
Get Part
65L−83625−50
Mark 5
Diagram Reference: 60
Get Part
68F−81949−00 (AP)
Wire, lead
Diagram Reference: 61
Get Part
