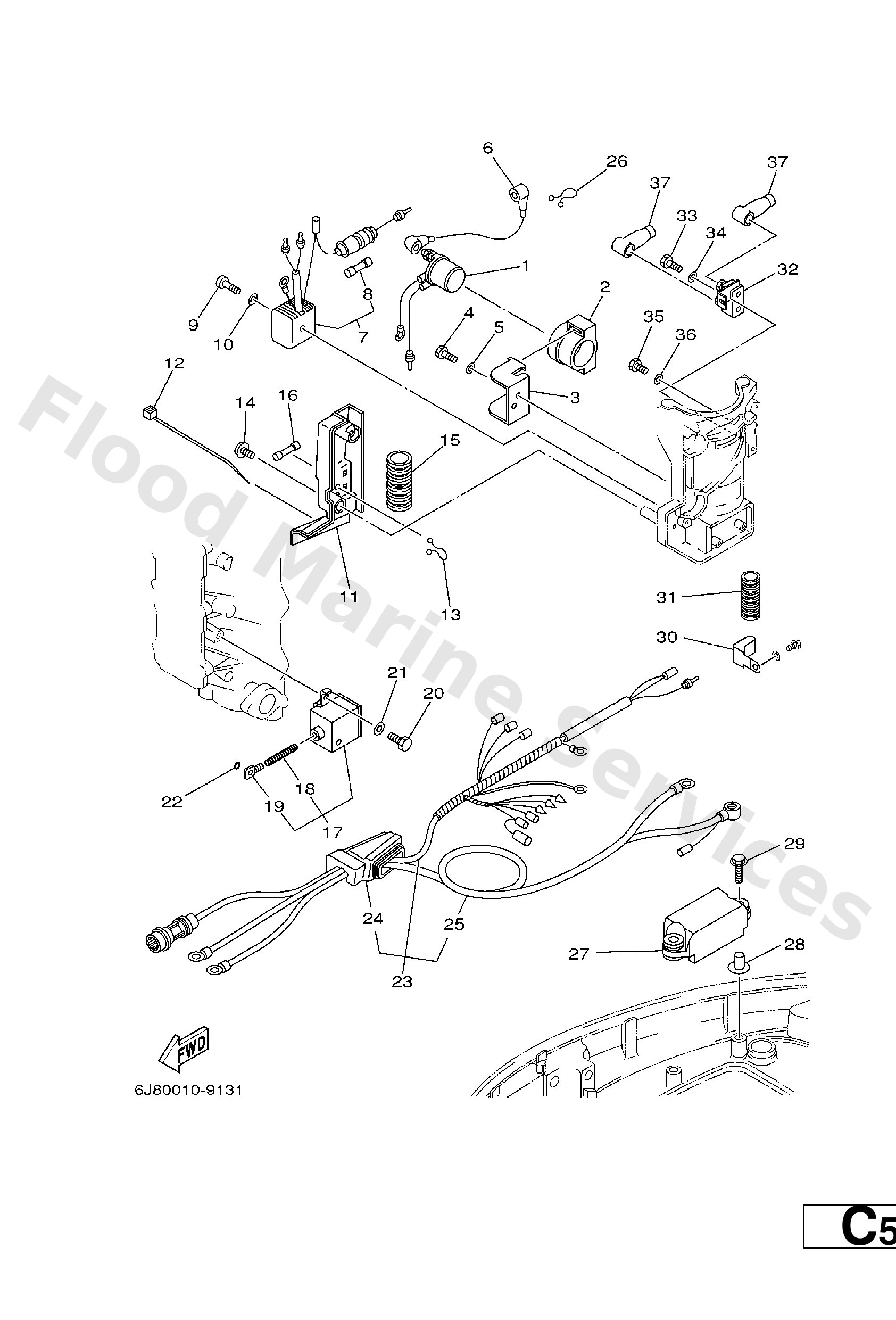

Diagram: ELECTRICAL 3

Diagram

Parts List

6G1−81941−10

Starter relay

Diagram Reference: 1

6G1−81952−00

Holder, relay

Diagram Reference: 2

6J8−81945−00

Plate, switch fitting

Diagram Reference: 3

97013−06016

Bolt, hexagon deep recess

Diagram Reference: 4

92903−06600

Washer, plain (646)

Diagram Reference: 5

6F5−82117−00

Wire, lead

Diagram Reference: 6

6G1−81970−61

Rectifier assembly

Diagram Reference: 7

6G1−82151−00

Fuse (10a)

Diagram Reference: 8

97880−05025

Screw, panhead (a93)

Diagram Reference: 9

92990−05600

Washer, plain (646)

Diagram Reference: 10

6J8−81916−10

Cover, terminal

Diagram Reference: 11

90465−13M18

Clamp

Diagram Reference: 12

90465−18147

Clamp

Diagram Reference: 13

90159−05M26

Screw, with washer(6g7)

Diagram Reference: 14

6E9−83557−70

Tube

Diagram Reference: 15

6H3−82151−00

Fuse (10a)

Diagram Reference: 16

6J8−86110−00

Solenoid

Diagram Reference: 17

6J8−86116−00

Wire, pull

Diagram Reference: 18

682−86117−00

Hook, wire pull

Diagram Reference: 19

93210−03261

O-ring (663)

Diagram Reference: 22

6J8−82580−10

Wire harness assembly 2

Diagram Reference: 23

6J8−42724−60

Grommet

Diagram Reference: 24

689−82105−13

Battery cable

Diagram Reference: 25

90464−15M11

Clamp (3y2)

Diagram Reference: 26

6J8−81950−00

Relay assembly

Diagram Reference: 27

90387−06M03

Collar (676)

Diagram Reference: 28

90119−06M17

Bolt, with washer

Diagram Reference: 29

90465−08M12

Clamp (6e5)

Diagram Reference: 30

90446−14M88

Hose

Diagram Reference: 31

6H5−81920−00

Terminal assembly

Diagram Reference: 32

97095−06014

Bolt(gj3)

Diagram Reference: 33

92995−06600

Washer, plain (646)

Diagram Reference: 34

97095−06012

Bolt(gh1)

Diagram Reference: 35

682−82119−01

Cover, lead wire

Diagram Reference: 37
