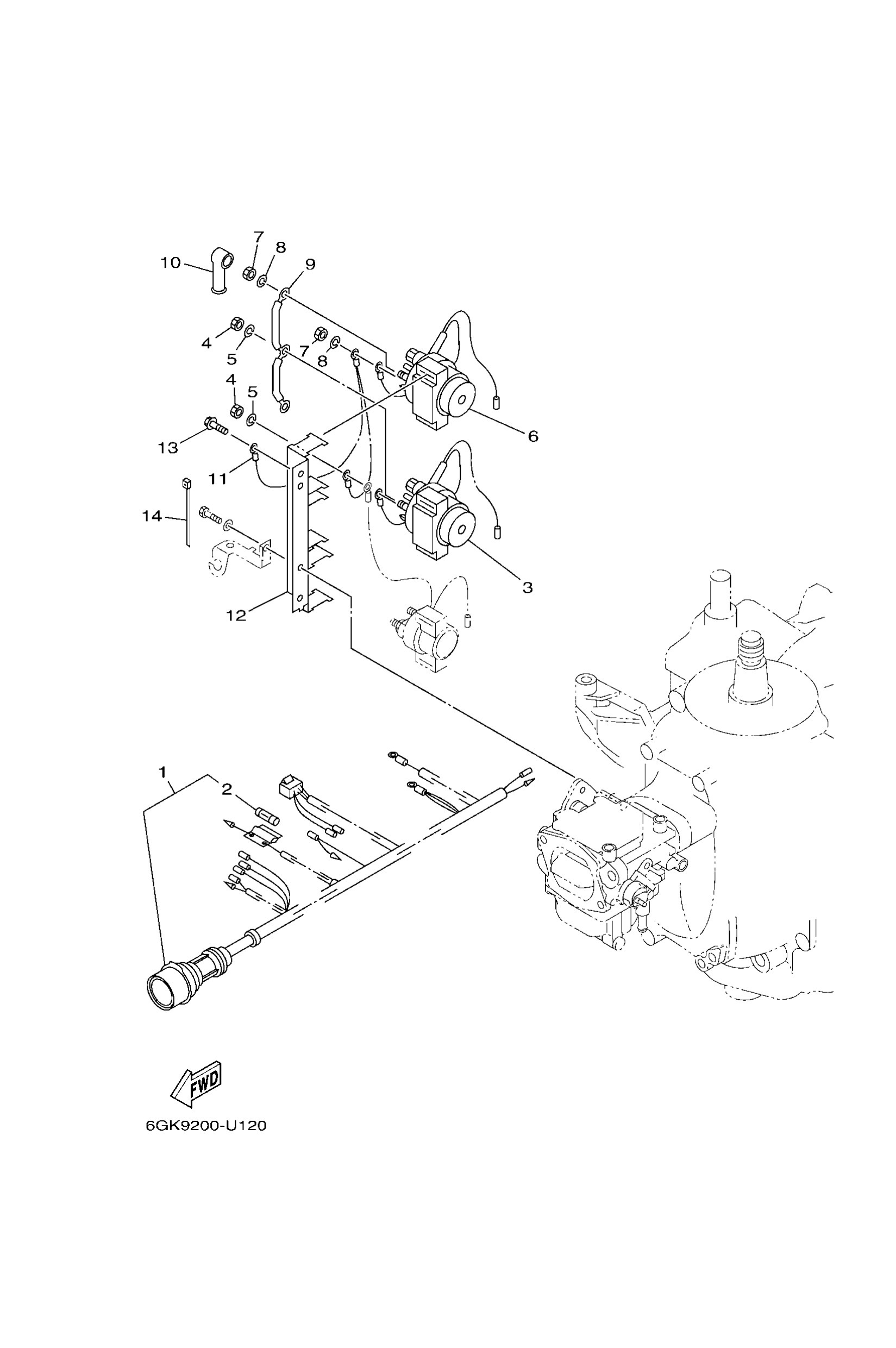

Diagram: ELECTRICAL 3

Diagram

Parts List

66T8259022
Wire harness assembly
Diagram Reference: 1
Get Part
6GK8259012 (FOR RUS)
-
Diagram Reference: 1
Get Part
6G18215101
Fuse (10a)
Diagram Reference: 2
Get Part
6E58195B01
Relay assembly
Diagram Reference: 3
Get Part
9017006M30
Nut(62x)
Diagram Reference: 4
Get Part
9020406M00
Washer, spring(62x)
Diagram Reference: 5
Get Part
6E58195C01
Relay assembly
Diagram Reference: 6
Get Part
66T8714900
Connector
Diagram Reference: 9
Get Part
6G58211900
Cover, lead wire
Diagram Reference: 10
Get Part
6E58211601
Wire, minus lead
Diagram Reference: 11
Get Part
66T8194800
Bracket
Diagram Reference: 12
Get Part
97E9506516
Bolt, hexagon w/w deep recess
Diagram Reference: 13
Get Part
9046511M10
Clamp
Diagram Reference: 14
Get Part
