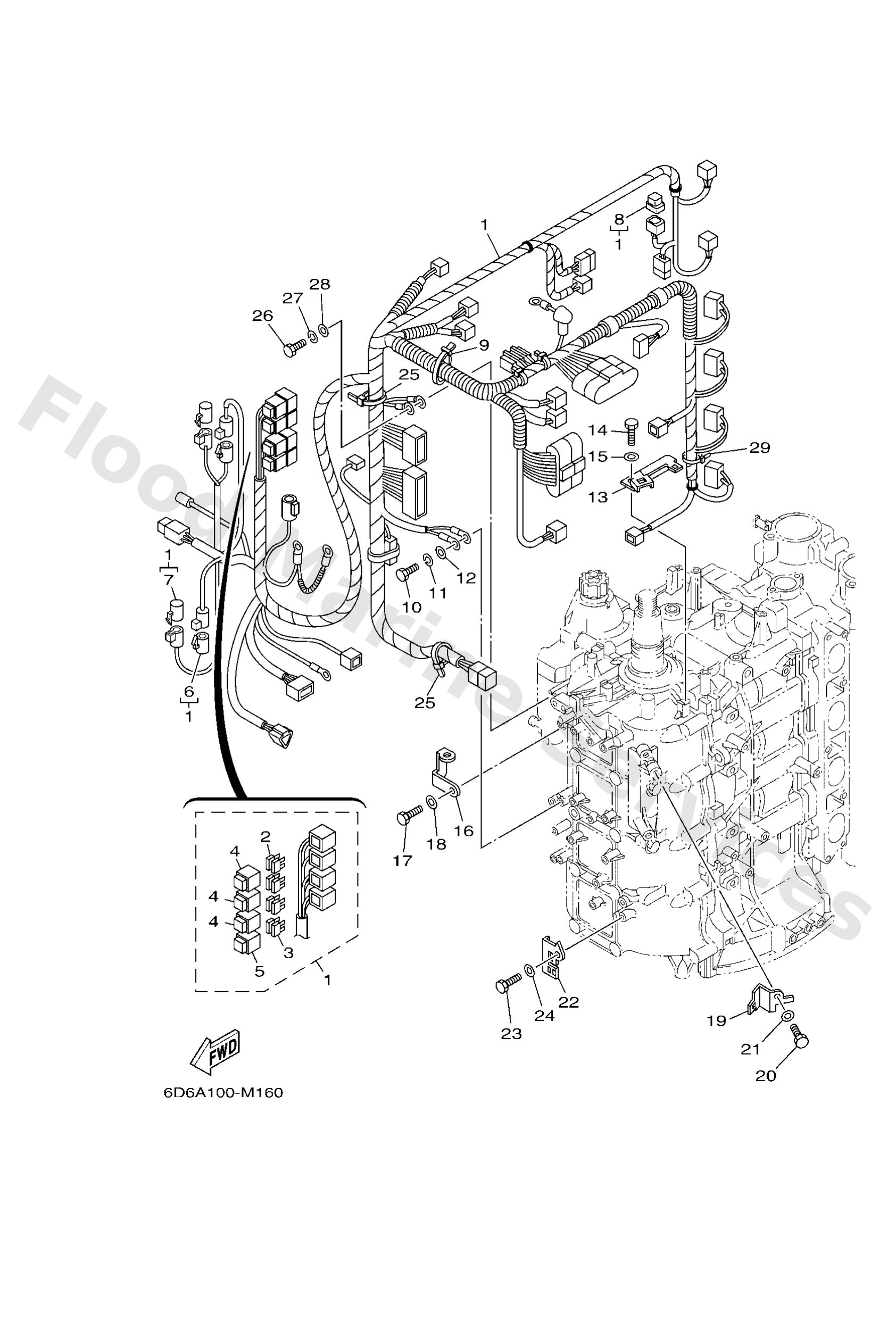

Diagram: ELECTRICAL 3

Diagram

Parts List

6D88259041 (FOR TILT LIMIT)
Wire harness assembly
Diagram Reference: 1
Get Part
67F8215100
Fuse
Diagram Reference: 2
Get Part
67F8215110
Fuse
Diagram Reference: 3
Get Part
67F8215B10
Cap (yellow)
Diagram Reference: 4
Get Part
67F8215B20
Cap (green)
Diagram Reference: 5
Get Part
6DA8258200
Cap 1 (female)
Diagram Reference: 6
Get Part
6DA8258210
Cap 1 (male)
Diagram Reference: 7
Get Part
6Y88258211
White cap 1 (4pin)
Diagram Reference: 8
Get Part
9046476001
Clamp
Diagram Reference: 9
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 10
Get Part
9299506100
Washer(6a1)
Diagram Reference: 11
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 12
Get Part
6D88258801
Plate
Diagram Reference: 13
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 14
Get Part
6D88258101
Stay, cord clamp
Diagram Reference: 16
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 17
Get Part
6D88238901
Plate 2
Diagram Reference: 19
Get Part
6D88239801
Plate 3
Diagram Reference: 22
Get Part
9046513M18
Clamp
Diagram Reference: 25
Get Part
9046513M11
Clamp (6e5)
Diagram Reference: 29
Get Part
