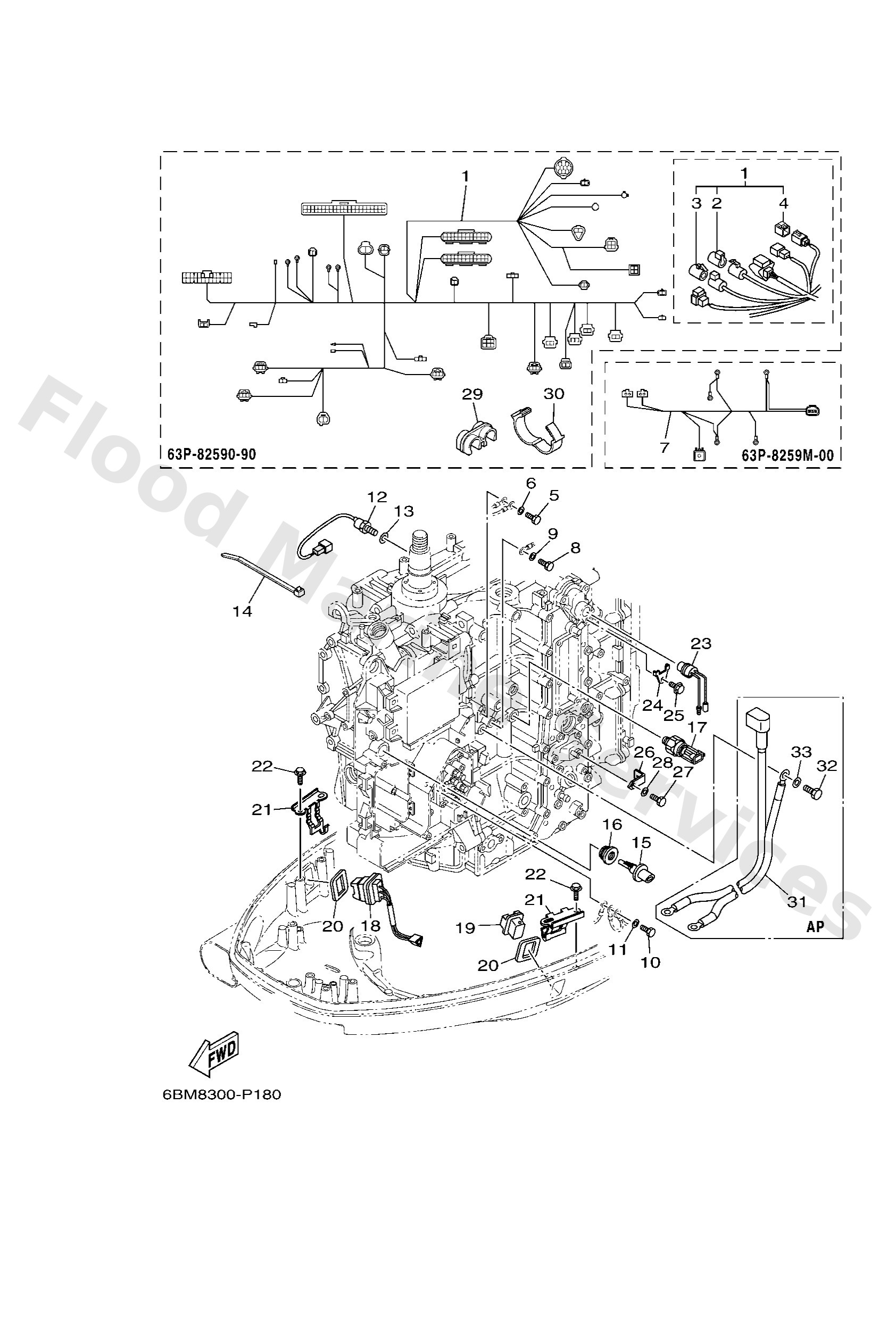

Parts List
Wire harness assembly
Diagram Reference: 1
Cap 1 (female)
Diagram Reference: 2
Cap 1 (male)
Diagram Reference: 3
White cap 1 (4pin)
Diagram Reference: 4
Bolt, hexagon deep recess
Diagram Reference: 5
Washer, plain (646)
Diagram Reference: 6
Wire harness assembly 2
Diagram Reference: 7
Bolt(gh1)
Diagram Reference: 10
Thermosensor assembly
Diagram Reference: 12
Washer, plate
Diagram Reference: 13
Clamp
Diagram Reference: 14
Sensor, air temperature
Diagram Reference: 15
Grommet
Diagram Reference: 16
Sender, oil pressure
Diagram Reference: 17
Trim & tilt switch assembly
Diagram Reference: 18
Cover, bottom
Diagram Reference: 19
Gasket
Diagram Reference: 20
Bracket
Diagram Reference: 21
Bolt
Diagram Reference: 22
Thermo switch assembly
Diagram Reference: 23
Plate
Diagram Reference: 24
Bolt
Diagram Reference: 25
Bracket 4
Diagram Reference: 26
Clamp(4pe)
Diagram Reference: 29
Clamp
Diagram Reference: 30
Wire harness
Diagram Reference: 31
Bolt, hexagon deep recess
Diagram Reference: 32
Washer, plain (663)
Diagram Reference: 33
