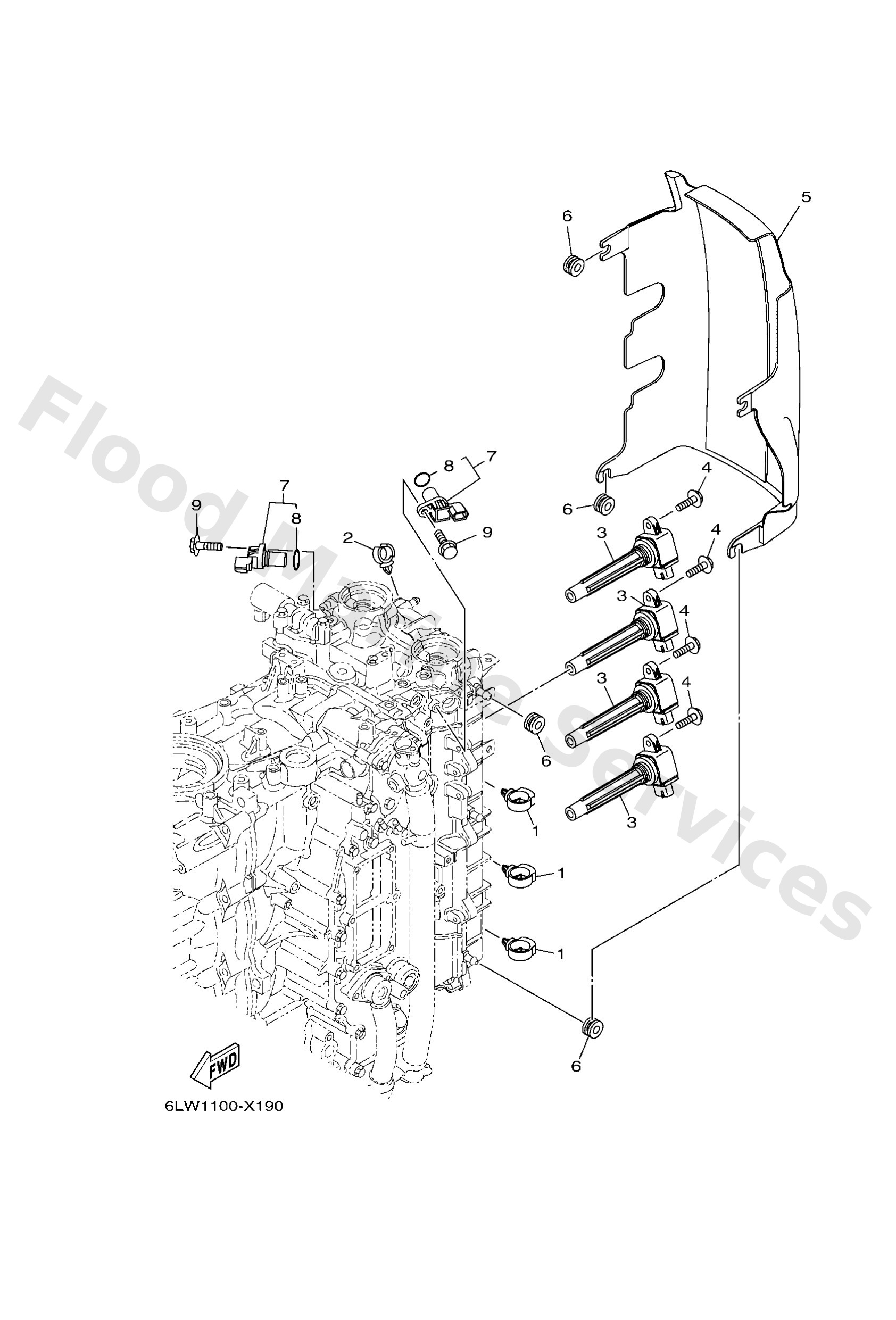

Diagram: ELECTRICAL 3

Diagram

Parts List

9046420181
Clamp(4ap)
Diagram Reference: 1
Get Part
9046413249
Clamp
Diagram Reference: 2
Get Part
6CB8231002
Ignition coil assembly
Diagram Reference: 3
Get Part
95D9506025
Bolt, flange deep recess
Diagram Reference: 4
Get Part
6DA8231401
Cover, ignition coil
Diagram Reference: 5
Get Part
9048012314
Grommet(3aa)
Diagram Reference: 6
Get Part
6P28589600
Sensor, cam position
Diagram Reference: 7
Get Part
6P28507500
O-ring
Diagram Reference: 8
Get Part
97E9506520
Bolt, hexagon w/w deep recess
Diagram Reference: 9
Get Part
