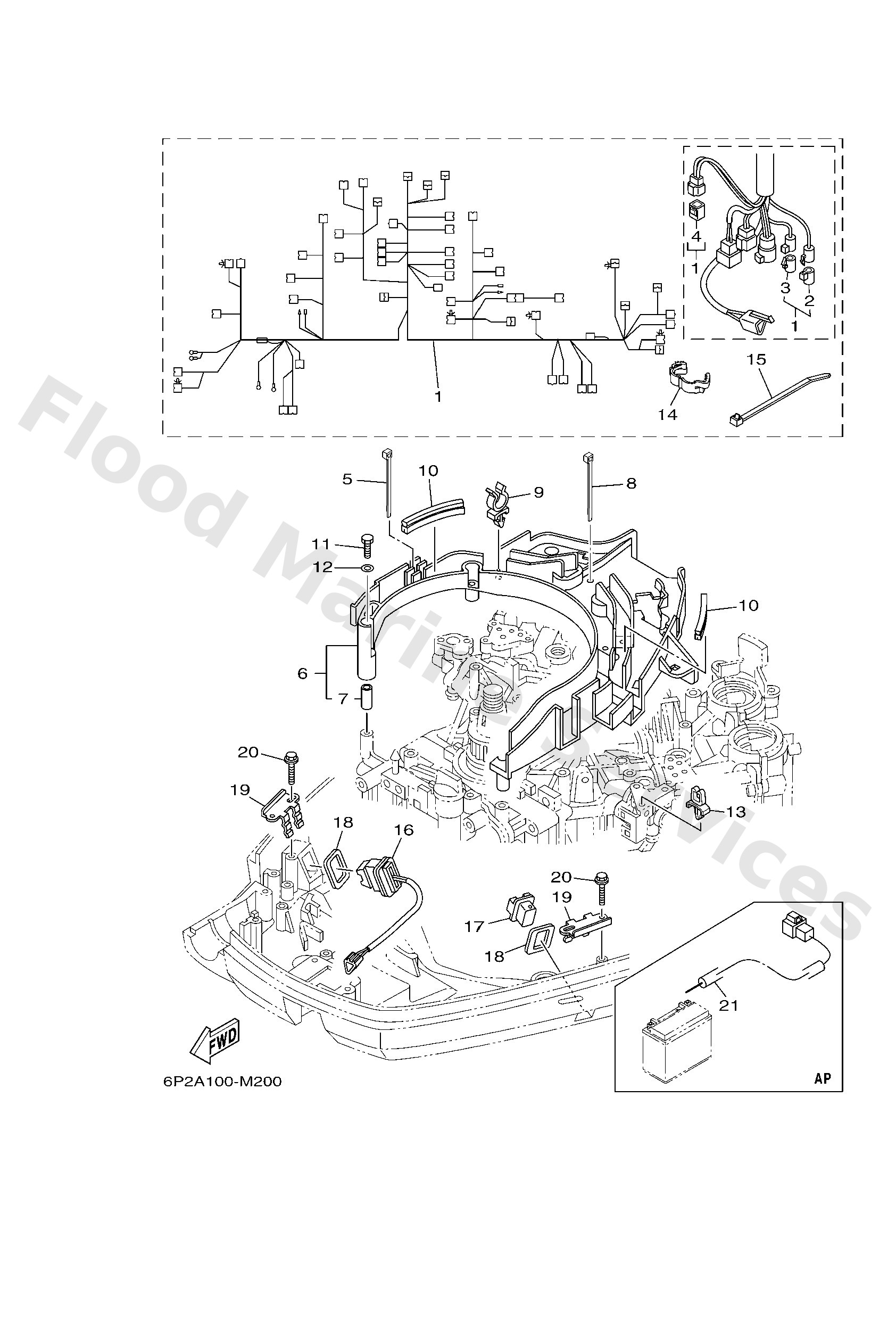

Diagram: ELECTRICAL 3

Diagram

Parts List

6P28259041
Wire harness assembly
Diagram Reference: 1
Get Part
6DA8258200
Cap 1 (female)
Diagram Reference: 2
Get Part
6DA8258210
Cap 1 (male)
Diagram Reference: 3
Get Part
6Y88258211
White cap 1 (4pin)
Diagram Reference: 4
Get Part
9046514M66
Clamp
Diagram Reference: 5
Get Part
6P28258900
Protecter, wire harness
Diagram Reference: 6
Get Part
9038706M26
Collar(61n)
Diagram Reference: 7
Get Part
9046419M45
Clamp(65j)
Diagram Reference: 9
Get Part
6P28572200
Insulator
Diagram Reference: 10
Get Part
9709506035
Bolt(j52)
Diagram Reference: 11
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 12
Get Part
9046406001
Clamp
Diagram Reference: 13
Get Part
9046414010
Clamp
Diagram Reference: 14
Get Part
9046513M18
Clamp
Diagram Reference: 15
Get Part
69J8256300
Trim & tilt switch assembly
Diagram Reference: 16
Get Part
69J4272301
Cover, bottom
Diagram Reference: 17
Get Part
69J8258700
Gasket
Diagram Reference: 18
Get Part
69J8361410
Bracket
Diagram Reference: 19
Get Part
9010906M86
Bolt
Diagram Reference: 20
Get Part
69J8194902 (AP)
Wire, lead (isolator, 3.8m )
Diagram Reference: 21
Get Part
