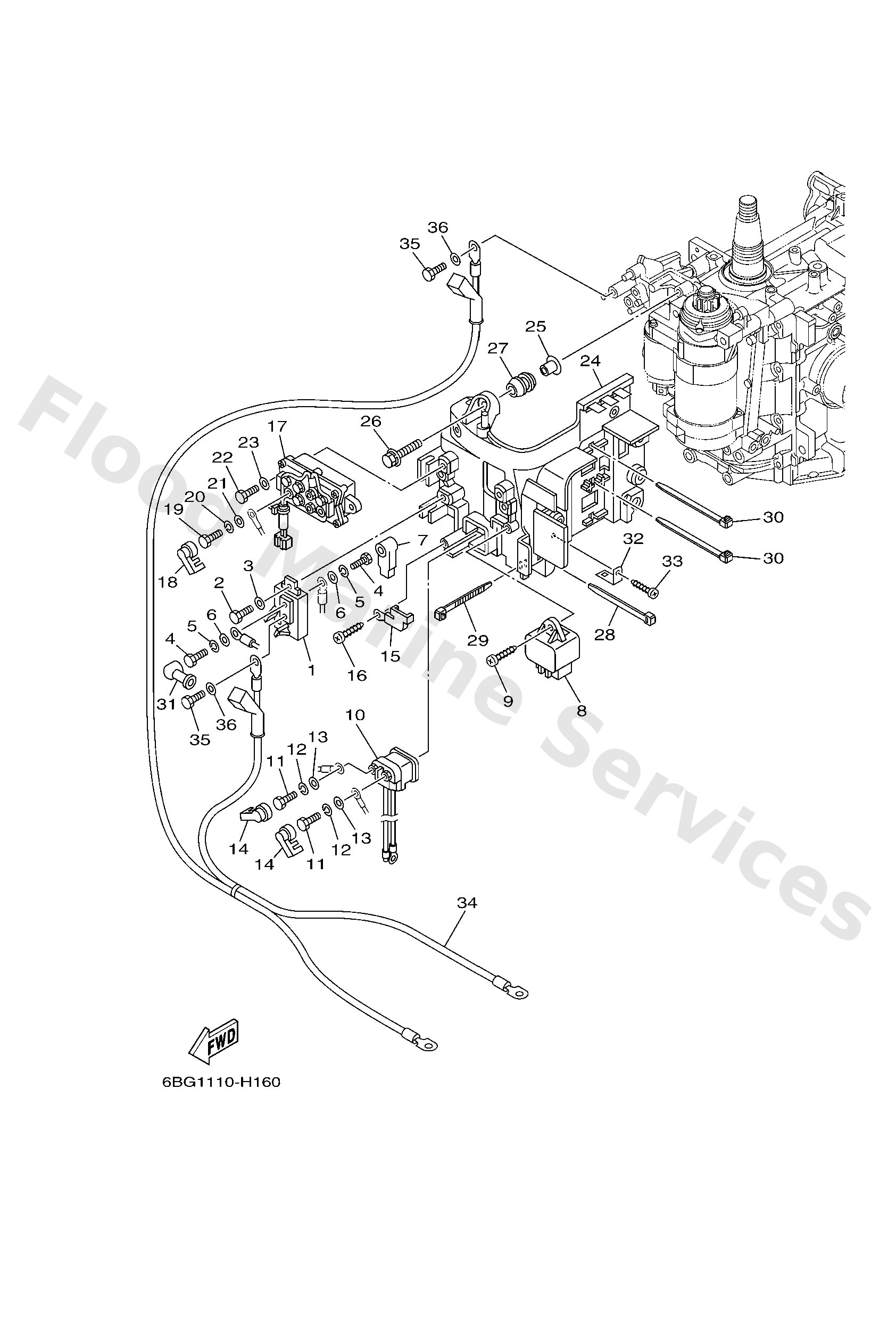

Diagram: ELECTRICAL 3

Diagram

Parts List

6BG8192500
Terminal
Diagram Reference: 1
Get Part
9709506016 (AP)
Bolt, hexagon deep recess
Diagram Reference: 35
Get Part
9299506600 (AP)
Washer, plain (646)
Diagram Reference: 36
Get Part
9709506010
Bolt
Diagram Reference: 4
Get Part
9299506100
Washer(6a1)
Diagram Reference: 5
Get Part
6828211901
Cover, lead wire
Diagram Reference: 7
Get Part
60E8195000
Relay assembly
Diagram Reference: 8
Get Part
9778060620
Screw, tapping(6k8)
Diagram Reference: 9
Get Part
6AW8194A00
Relay
Diagram Reference: 10
Get Part
6P28183X00
Cap, terminal
Diagram Reference: 14
Get Part
68F8195300
Stay, relay
Diagram Reference: 15
Get Part
63P8195000
Relay assembly
Diagram Reference: 17
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 22
Get Part
6BG8194800
Bracket
Diagram Reference: 24
Get Part
9038706119
Collar
Diagram Reference: 25
Get Part
9011906M59
Bolt, with washer
Diagram Reference: 26
Get Part
6A08231700
Damper, ignition coil
Diagram Reference: 27
Get Part
9046513M24
Band, switch cord
Diagram Reference: 28
Get Part
9046513M39
Clamp(6e8)
Diagram Reference: 29
Get Part
9046514M66
Clamp
Diagram Reference: 30
Get Part
6G58211900
Cover, lead wire
Diagram Reference: 31
Get Part
68V8554800
Holder
Diagram Reference: 32
Get Part
6BG8210500 (AP)
Battery cable
Diagram Reference: 34
Get Part
