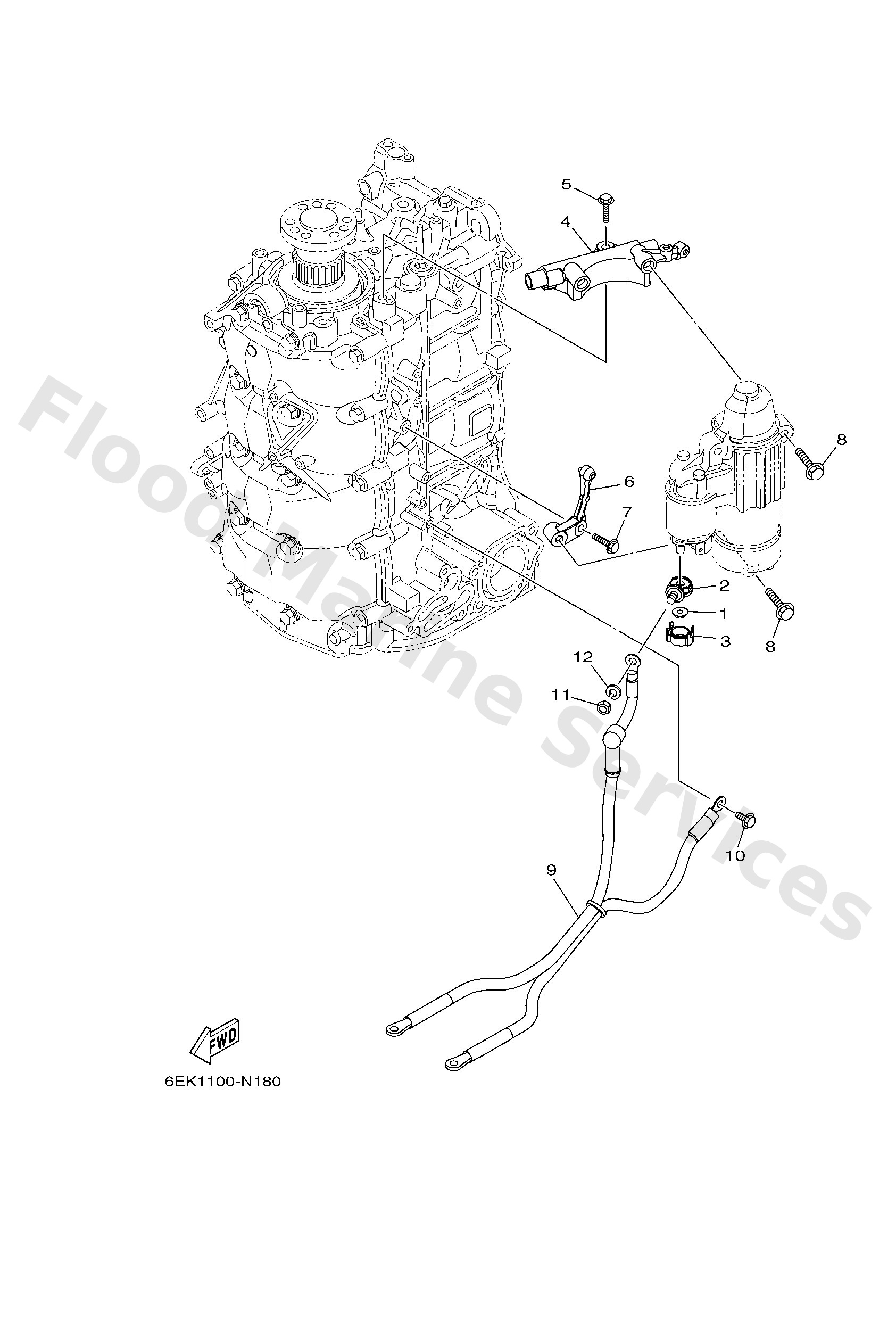

Diagram: ELECTRICAL 3

Diagram

Parts List

9017908003
Nut
Diagram Reference: 1
Get Part
60V8192500
Terminal
Diagram Reference: 2
Get Part
68F8258200
Cover, wire harness
Diagram Reference: 3
Get Part
6EK8182200
Bracket, starting motor & bolt
Diagram Reference: 4
Get Part
9581208030
Bolt, flange
Diagram Reference: 5
Get Part
6EK8182300
Stay, starting motor
Diagram Reference: 6
Get Part
9010508248
Bolt, flange
Diagram Reference: 8
Get Part
68V8210501 (AP)
Battery cable
Diagram Reference: 9
Get Part
9010506M14 (AP)
Bolt (6e0)
Diagram Reference: 10
Get Part
9533308600 (AP)
Nut(6l2)
Diagram Reference: 11
Get Part
9290308100 (AP)
Ybs67-8 washer, spring
Diagram Reference: 12
Get Part
