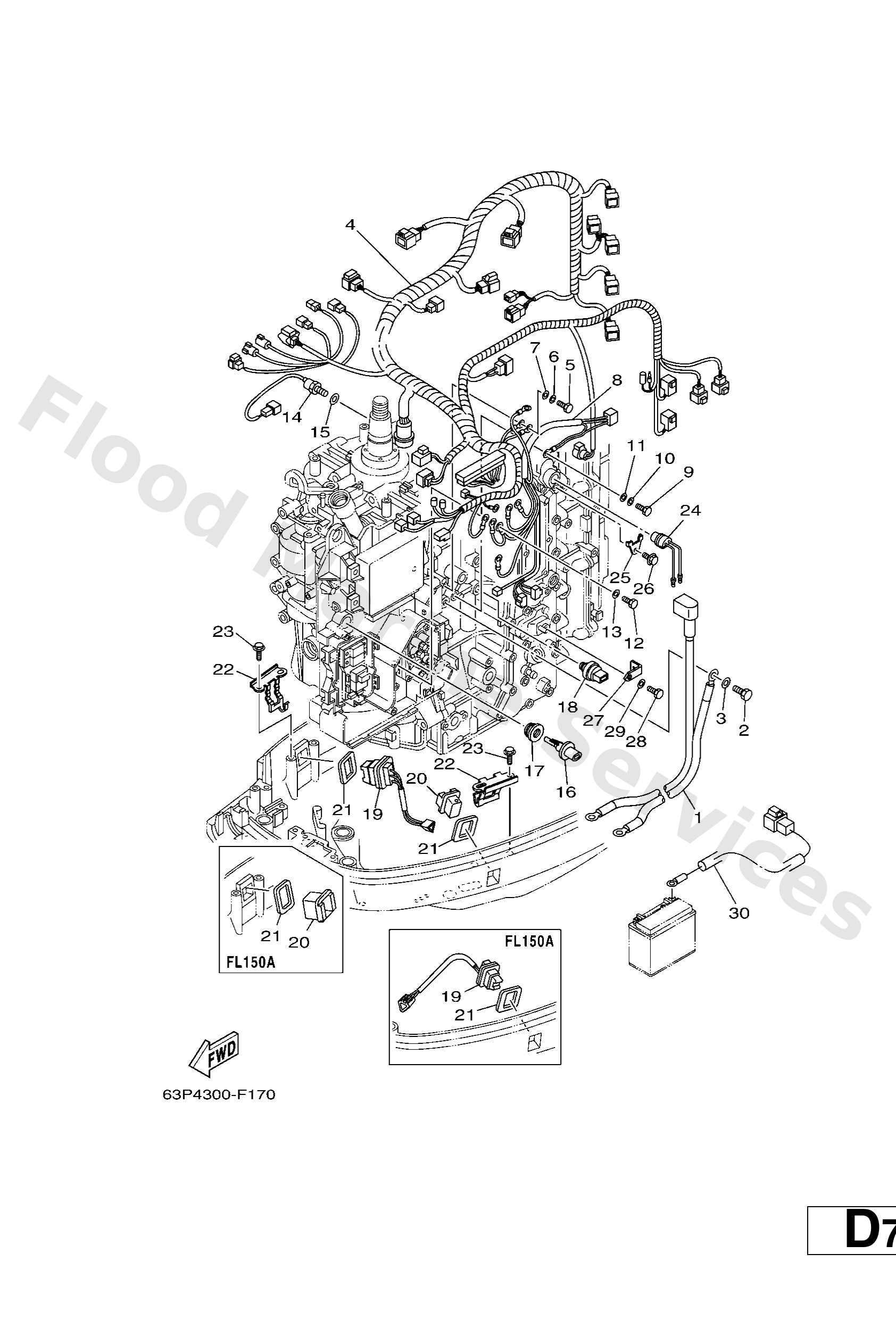

Diagram: ELECTRICAL 3

Diagram

Parts List

63P8210500
Battery cable
Diagram Reference: 1
Get Part
9709508016
Bolt, hexagon deep recess
Diagram Reference: 2
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 3
Get Part
63P8259030
Wire harness assembly
Diagram Reference: 4
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 5
Get Part
9299506100
Washer(6a1)
Diagram Reference: 6
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 7
Get Part
63P8259M00
Wire harness assembly 2
Diagram Reference: 8
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 12
Get Part
61A8579000
Thermosensor assembly
Diagram Reference: 14
Get Part
9299010600
Washer, plate
Diagram Reference: 15
Get Part
63P8588600
Sensor, air temperature
Diagram Reference: 16
Get Part
63P1443500
Grommet
Diagram Reference: 17
Get Part
69J8365100
Sender, oil pressure
Diagram Reference: 18
Get Part
69J8256300
Trim & tilt switch assembly
Diagram Reference: 19
Get Part
69J42723008D
Cover, bottom
Diagram Reference: 20
Get Part
69J8258700
Gasket
Diagram Reference: 21
Get Part
63P8361400
Bracket
Diagram Reference: 22
Get Part
9010906M86
Bolt
Diagram Reference: 23
Get Part
69J8256000
Thermo switch assembly
Diagram Reference: 24
Get Part
6E98258800
Plate
Diagram Reference: 25
Get Part
9010906M80
Bolt
Diagram Reference: 26
Get Part
63P8366P00
Bracket 4
Diagram Reference: 27
Get Part
68F8194900 (AP)
Wire, lead
Diagram Reference: 30
Get Part
