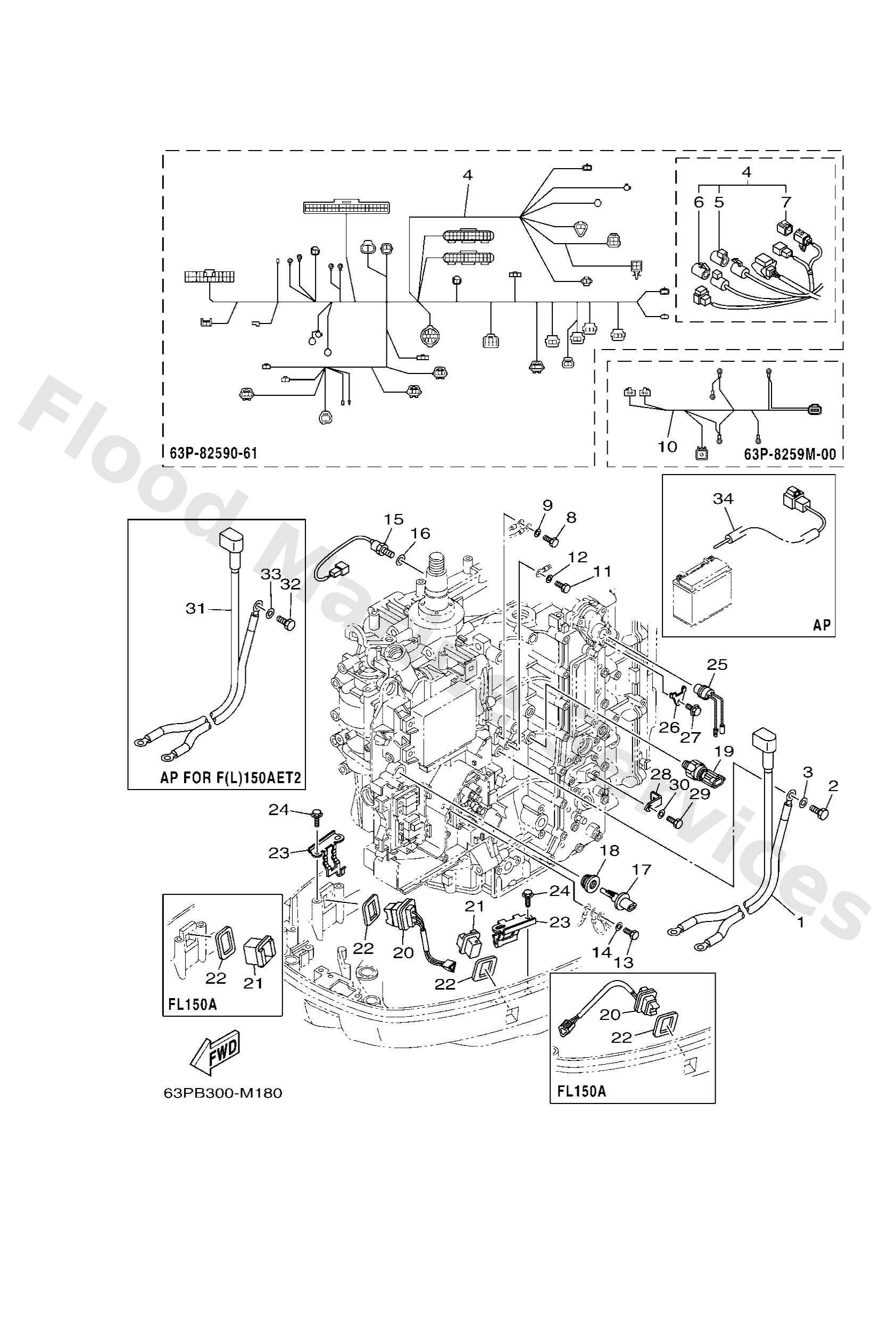

Parts List
Battery cable
Diagram Reference: 1
Bolt, hexagon deep recess
Diagram Reference: 2
Washer, plain (663)
Diagram Reference: 3
Wire harness assembly
Diagram Reference: 4
Cap 1 (female)
Diagram Reference: 5
Cap 1 (male)
Diagram Reference: 6
White cap 1 (4pin)
Diagram Reference: 7
Bolt, hexagon deep recess
Diagram Reference: 8
Washer, plain (646)
Diagram Reference: 9
Wire harness assembly 2
Diagram Reference: 10
Bolt(gh1)
Diagram Reference: 13
Thermosensor assembly
Diagram Reference: 15
Washer, plate
Diagram Reference: 16
Sensor, air temperature
Diagram Reference: 17
Grommet
Diagram Reference: 18
Sender, oil pressure
Diagram Reference: 19
Trim & tilt switch assembly
Diagram Reference: 20
Cover, bottom
Diagram Reference: 21
Gasket
Diagram Reference: 22
Bracket
Diagram Reference: 23
Bolt
Diagram Reference: 24
Thermo switch assembly
Diagram Reference: 25
Plate
Diagram Reference: 26
Bolt
Diagram Reference: 27
Bracket 4
Diagram Reference: 28
Wire, lead
Diagram Reference: 34
