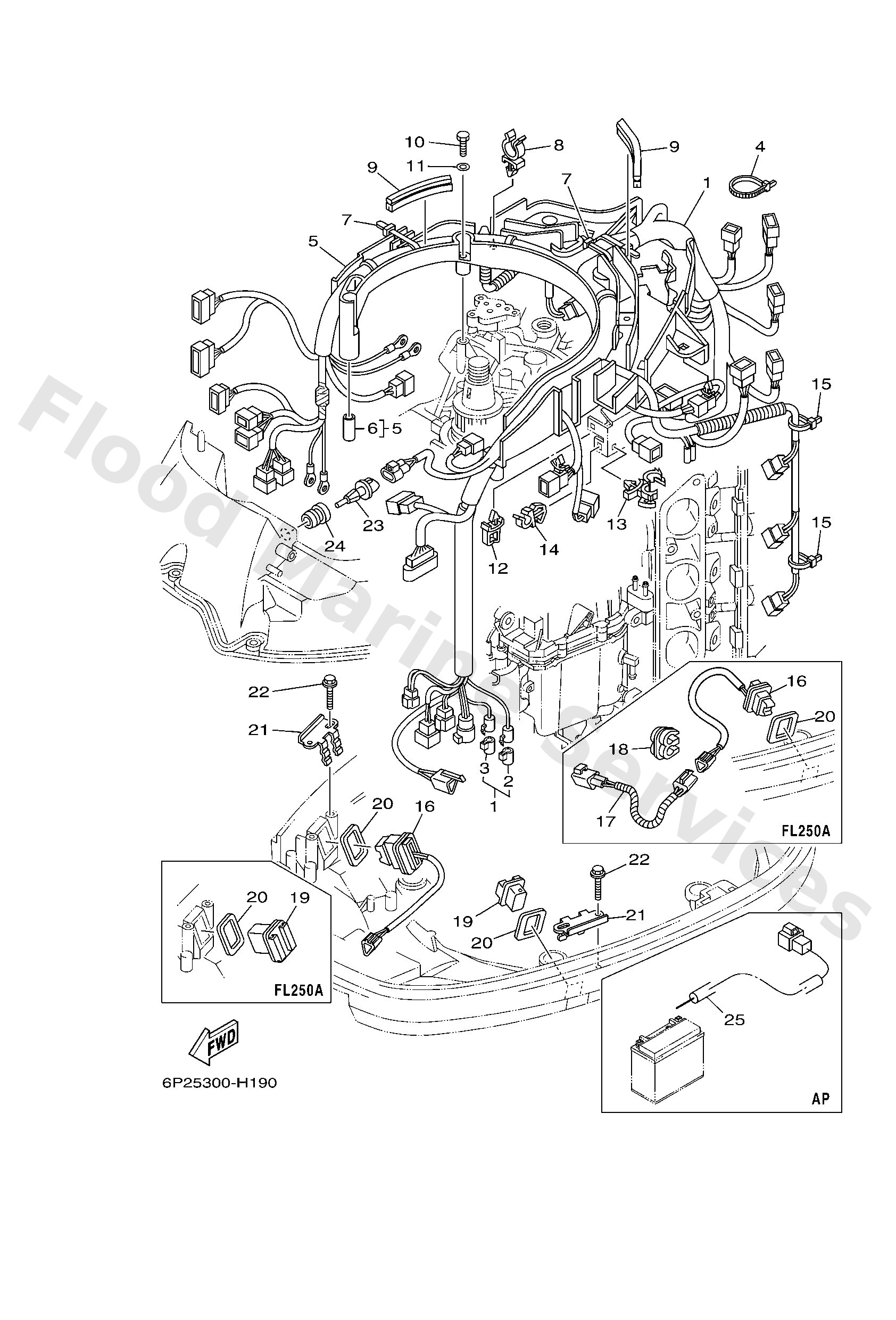

Diagram: ELECTRICAL 3
Parts List
Wire Harness assembly
Diagram Reference: 1
Cap 1 (Female)
Diagram Reference: 2
Cap 1 (Male)
Diagram Reference: 3
Clamp
Diagram Reference: 4
Protecter, wire harness
Diagram Reference: 5
Collar
Diagram Reference: 6
Clamp(65j)
Diagram Reference: 8
Insulator
Diagram Reference: 9
Bolt
Diagram Reference: 10
Clamp
Diagram Reference: 12
Clamp
Diagram Reference: 13
Clamp (26h)
Diagram Reference: 14
Clamp
Diagram Reference: 15
Trim & Tilt Switch Assy
Diagram Reference: 16
Extension, wire lead
Diagram Reference: 17
Clamp
Diagram Reference: 18
Cover, Bottom
Diagram Reference: 19
Gasket
Diagram Reference: 20
Bracket
Diagram Reference: 21
Bolt
Diagram Reference: 22
Sensor, Air Temperature
Diagram Reference: 23
Grommet
Diagram Reference: 24
