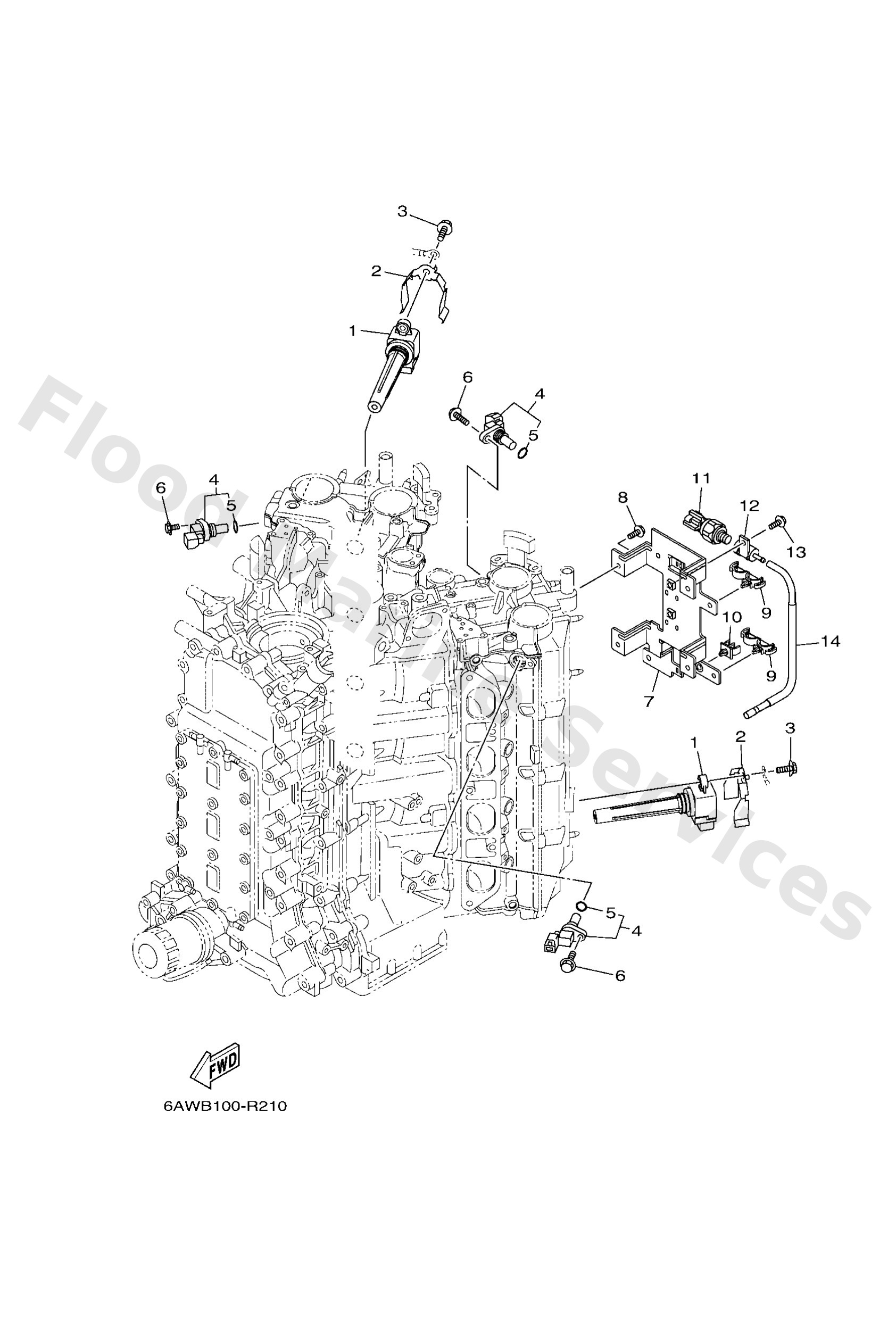

Diagram: ELECTRICAL 3

Diagram

Parts List

6CB8231000
Ignition coil assembly
Diagram Reference: 1
Get Part
6AW8153900
Plate, coil
Diagram Reference: 2
Get Part
95D9506025
Bolt, flange deep recess
Diagram Reference: 3
Get Part
6P28589600
Sensor, cam position
Diagram Reference: 4
Get Part
6P28507500
O-ring
Diagram Reference: 5
Get Part
97E9506520
Bolt, hexagon w/w deep recess
Diagram Reference: 6
Get Part
6AW8366G10
Bracket 3
Diagram Reference: 7
Get Part
95D9506016
Bolt, flange deep recess
Diagram Reference: 8
Get Part
9046418246
Clamp(4tr)
Diagram Reference: 9
Get Part
9046407009
Clamp
Diagram Reference: 10
Get Part
6AW8366B01
Sensor, water pressure
Diagram Reference: 11
Get Part
60V8366D00
Adaptor, input
Diagram Reference: 12
Get Part
97E9506516
Bolt, hexagon w/w deep recess
Diagram Reference: 13
Get Part
6AW8235310
Hose
Diagram Reference: 14
Get Part
