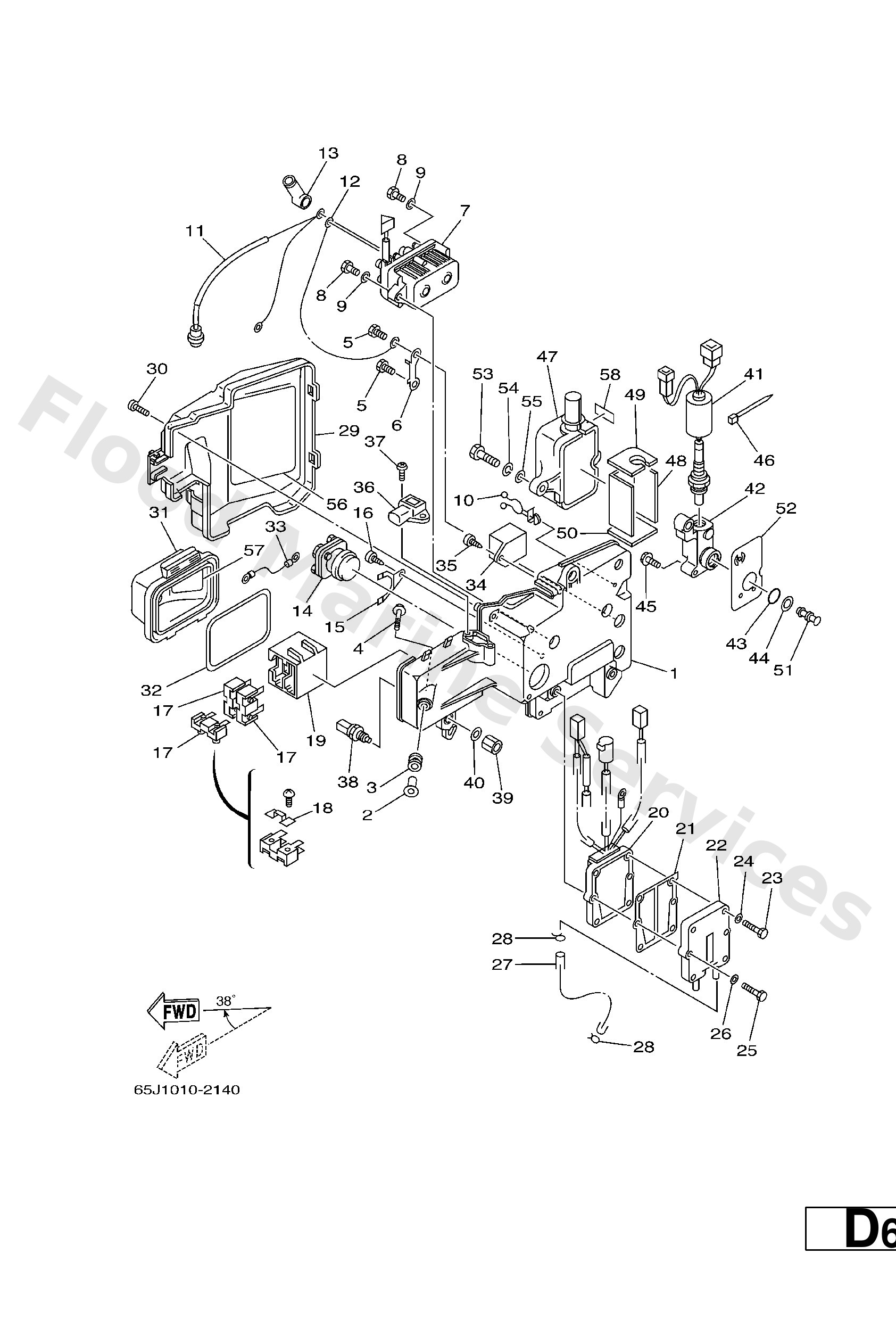

Diagram: ELECTRICAL 3

Diagram

Parts List

65L--81948--00
Bracket
Diagram Reference: 1
Get Part
624--42542--00
Collar
Diagram Reference: 2
Get Part
6A0--82317--00
Damper, ignition coil
Diagram Reference: 3
Get Part
90119--06M65
Bolt, with washer
Diagram Reference: 4
Get Part
97013--06014
Bolt(gj3)
Diagram Reference: 5
Get Part
61A--87149--00
Connector
Diagram Reference: 6
Get Part
61A--81950--00
Relay assembly
Diagram Reference: 7
Get Part
97013--06030
Bolt
Diagram Reference: 8
Get Part
92903--06600
Washer, plain (646)
Diagram Reference: 9
Get Part
90464--18M46
Clamp(65j)
Diagram Reference: 10
Get Part
61A--81949--10
Wire, lead
Diagram Reference: 11
Get Part
61A--81949--00
Wire, lead
Diagram Reference: 12
Get Part
6G5--82119--00
Cover, lead wire
Diagram Reference: 13
Get Part
61A--81941--00
Starter relay assembly
Diagram Reference: 14
Get Part
61A--81952--00
Holder, relay
Diagram Reference: 15
Get Part
97780--50612
Screw, tapping(61a)
Diagram Reference: 16
Get Part
61A--82150--00
Fuse holder assembly
Diagram Reference: 17
Get Part
61A--82151--00
Fuse(12v-80a)
Diagram Reference: 18
Get Part
61A--82153--00
Stay, fuse holder
Diagram Reference: 19
Get Part
61A8196002
Rectifier & regulator assembly
Diagram Reference: 20
Get Part
69J--81975--A0
Plate, rectifier fitting
Diagram Reference: 21
Get Part
69J81972011S
Cover, rectifier
Diagram Reference: 22
Get Part
97013--06025
Bolt(62y)
Diagram Reference: 23
Get Part
90445--09224
Hose (l1500)
Diagram Reference: 27
Get Part
90467--08004
Clip, pipe 6162435600
Diagram Reference: 28
Get Part
65L--81942--00
Cover
Diagram Reference: 29
Get Part
90169--05M00
Screw truss head tapping
Diagram Reference: 30
Get Part
61A--82154--01
Case
Diagram Reference: 31
Get Part
61A--82176--00
Damper
Diagram Reference: 32
Get Part
61A8211700
Wire, lead
Diagram Reference: 33
Get Part
65L--81950--00
Relay assembly
Diagram Reference: 34
Get Part
97780--60625
Screw, tapping(65j)
Diagram Reference: 35
Get Part
67H8238000
Sensor, pressure
Diagram Reference: 36
Get Part
65L--85886--00
Thermosensor
Diagram Reference: 38
Get Part
90170--12M36
15 −
Diagram Reference: 39
Get Part
90201--12M34
Washer (692)
Diagram Reference: 40
Get Part
65L8592A01
Sensor
Diagram Reference: 41
Get Part
69L1139500
15 −
Diagram Reference: 42
Get Part
9321017003
O-ring
Diagram Reference: 43
Get Part
69L1139700
Gasket
Diagram Reference: 44
Get Part
90119--06M74
Bolt, with washer(63m)
Diagram Reference: 45
Get Part
90465--13M18
Clamp
Diagram Reference: 46
Get Part
65L8583200
Case, under
Diagram Reference: 47
Get Part
65L--11354--00
Gasket
Diagram Reference: 48
Get Part
65L--1131N--00
Gasket, holder
Diagram Reference: 49
Get Part
65L--11396--00
Gasket, holder
Diagram Reference: 50
Get Part
65L1135311
Joint
Diagram Reference: 51
Get Part
69L1135700
Seal, cylinder 3
Diagram Reference: 52
Get Part
97095--06030
Bolt(jf7)
Diagram Reference: 53
Get Part
92995--06100
Washer(6a1)
Diagram Reference: 54
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 55
Get Part
65L8191900
Graphic, Regulator
Diagram Reference: 56
Get Part
61A8191900
Graphic, Regulator
Diagram Reference: 57
Get Part
65L8362550
Mark 5
Diagram Reference: 58
Get Part
