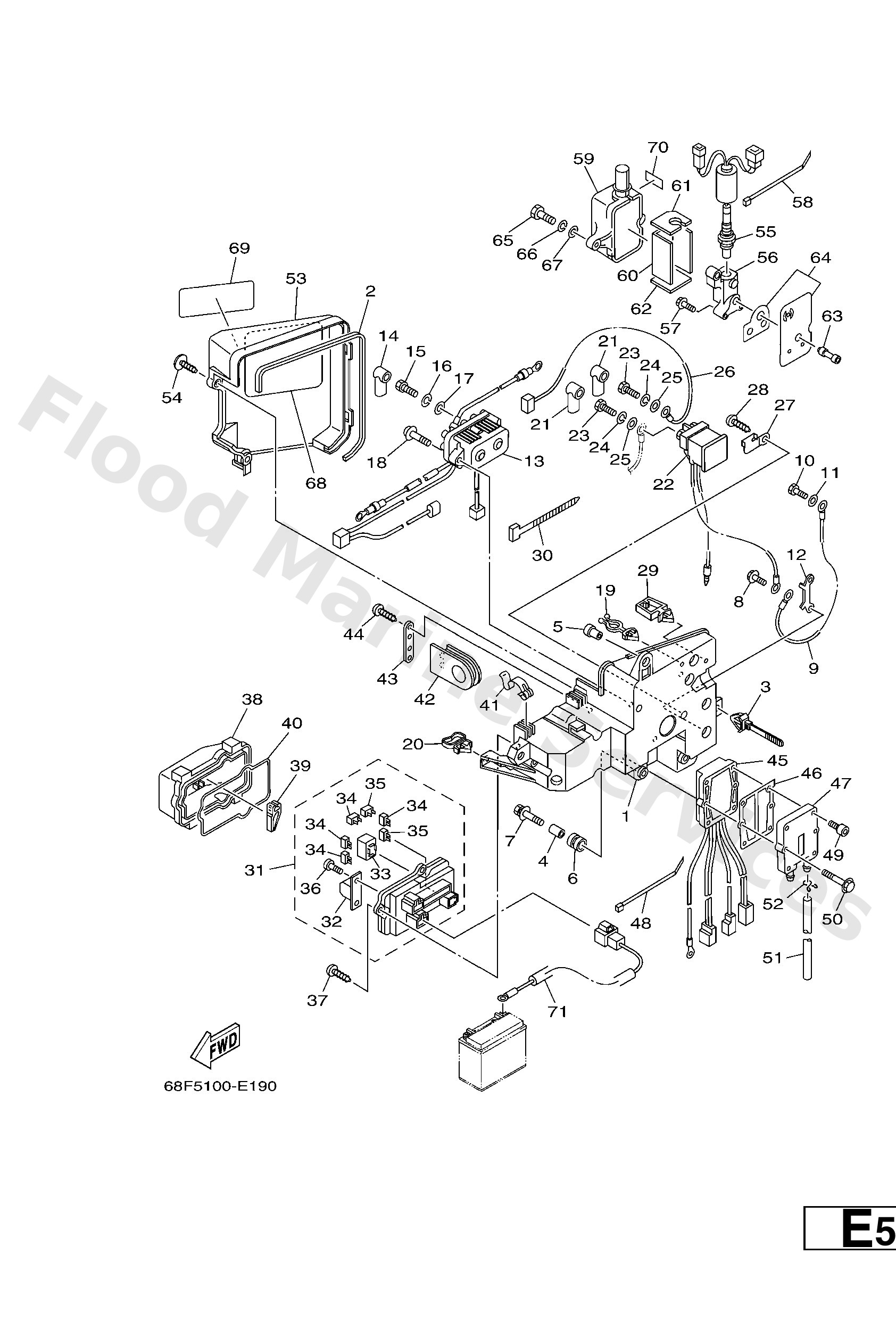

Parts List
Bracket
Diagram Reference: 1
Grommet
Diagram Reference: 2
Clamp(62t)
Diagram Reference: 3
Collar
Diagram Reference: 4
Collar
Diagram Reference: 5
Damper, ignition coil
Diagram Reference: 6
Bolt, with washer
Diagram Reference: 7
Bolt, hexagon socket head
Diagram Reference: 8
Wire, lead
Diagram Reference: 9
Bolt(gh1)
Diagram Reference: 10
Washer, plain (646)
Diagram Reference: 11
Connector
Diagram Reference: 12
Relay assembly
Diagram Reference: 13
Cover, lead wire
Diagram Reference: 14
Bolt
Diagram Reference: 15
Washer(6a1)
Diagram Reference: 16
Bolt, hexagon socket head
Diagram Reference: 18
Clamp(65j)
Diagram Reference: 19
Clamp(4hm)
Diagram Reference: 20
Relay
Diagram Reference: 22
Wire, lead
Diagram Reference: 26
Stay, relay
Diagram Reference: 27
Screw, tapping(6k8)
Diagram Reference: 28
Clamp(7ly)
Diagram Reference: 29
Clamp(6e7)
Diagram Reference: 30
Fuse box assembly
Diagram Reference: 31
Fuse (80A)
Diagram Reference: 32
Relay assembly
Diagram Reference: 33
Fuse
Diagram Reference: 34
Fuse
Diagram Reference: 35
Screw, pan head (m5)
Diagram Reference: 36
Screw, tapping
Diagram Reference: 37
Case
Diagram Reference: 38
Puller, fuse
Diagram Reference: 39
Damper
Diagram Reference: 40
Spring
Diagram Reference: 41
Grommet
Diagram Reference: 42
Clamp
Diagram Reference: 43
Screw, pan head tapping (ak5)
Diagram Reference: 44
Rectifier & regulator assembly
Diagram Reference: 45
Plate, rectifier fitting
Diagram Reference: 46
Cover, rectifier
Diagram Reference: 47
Clamp
Diagram Reference: 48
Bolt, hexagon socket head
Diagram Reference: 49
Bolt, with washer
Diagram Reference: 50
Hose (l1500)
Diagram Reference: 51
Clip
Diagram Reference: 52
Cover
Diagram Reference: 53
Screw truss head tapping
Diagram Reference: 54
Sensor
Diagram Reference: 55
Holder
Diagram Reference: 56
Bolt, with washer(63m)
Diagram Reference: 57
Case, under
Diagram Reference: 59
Gasket
Diagram Reference: 60
Gasket, holder
Diagram Reference: 61
Gasket, holder
Diagram Reference: 62
Joint
Diagram Reference: 63
Seal, cylinder
Diagram Reference: 64
Bolt(jf7)
Diagram Reference: 65
Graphic, regulator
Diagram Reference: 68
Graphic, Regulator
Diagram Reference: 69
Mark 5
Diagram Reference: 70
Wire, lead
Diagram Reference: 71
