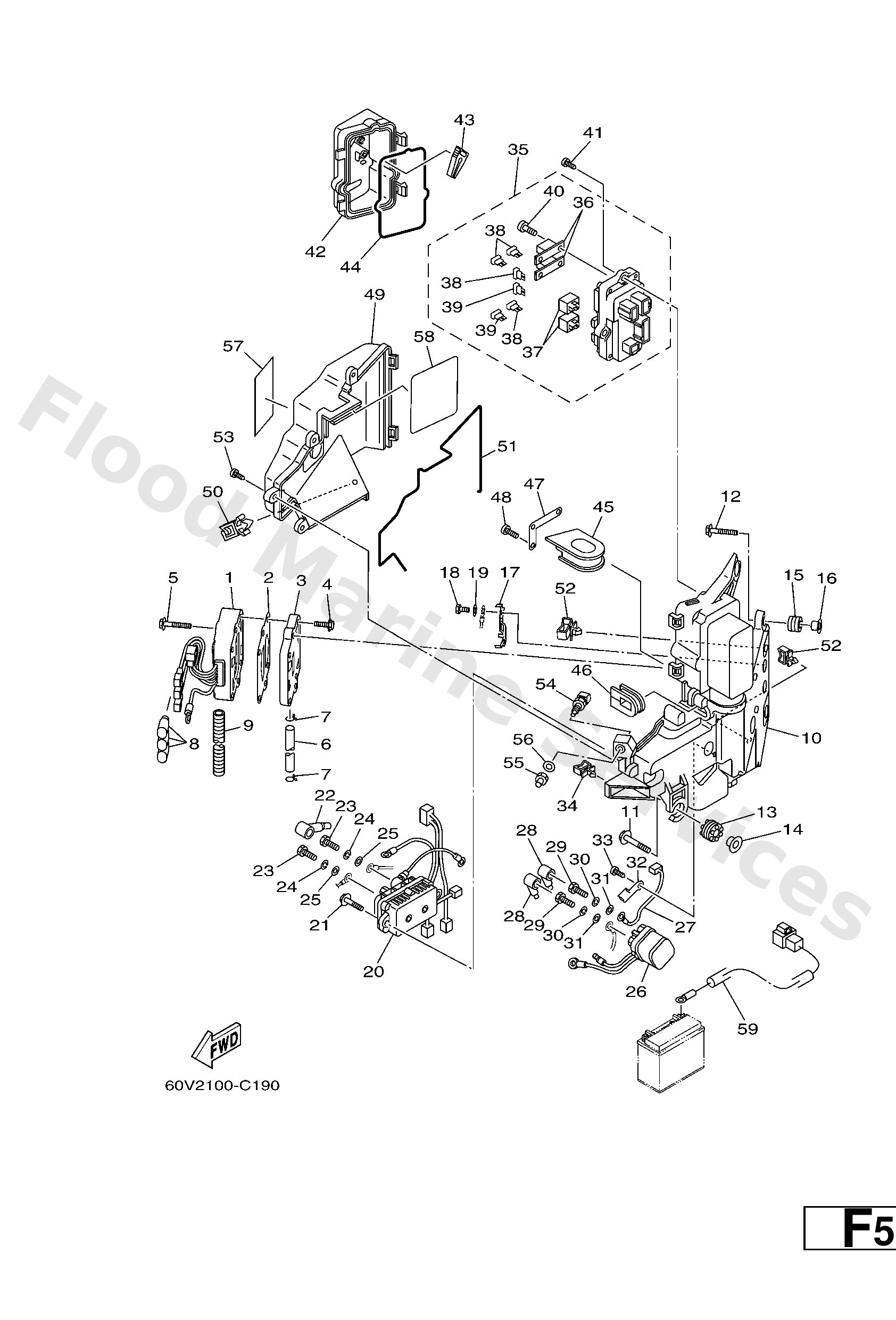

Diagram: ELECTRICAL 3

Diagram

Parts List

60V8196001
Rectifier & regulator assembly
Diagram Reference: 1
Get Part
60V81975A0
Plate, rectifier fitting
Diagram Reference: 2
Get Part
60V81972001S
Cover, rectifier
Diagram Reference: 3
Get Part
9011906MA3
Bolt, with washer
Diagram Reference: 4
Get Part
9011906MA4
Bolt, with washer
Diagram Reference: 5
Get Part
9044509M25
Hose (l1500)
Diagram Reference: 6
Get Part
9046708M18
Clip
Diagram Reference: 7
Get Part
6L28259901
Cover, connecter
Diagram Reference: 8
Get Part
9044710004
Hose, With Spring
Diagram Reference: 9
Get Part
60V8194800
Bracket
Diagram Reference: 10
Get Part
68F8511900
Bolt
Diagram Reference: 11
Get Part
9011906M65
Bolt, with washer
Diagram Reference: 12
Get Part
68F8551601
Spacer
Diagram Reference: 13
Get Part
68F8612900
Collar
Diagram Reference: 14
Get Part
6A08231700
Damper, ignition coil
Diagram Reference: 15
Get Part
6244254200
Collar
Diagram Reference: 16
Get Part
60V8714900
Connector
Diagram Reference: 17
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 18
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 19
Get Part
60V8195000
Relay assembly
Diagram Reference: 20
Get Part
6828211901
Cover, lead wire
Diagram Reference: 22
Get Part
9709506010
Bolt
Diagram Reference: 23
Get Part
9299506100
Washer(6a1)
Diagram Reference: 24
Get Part
68V8194A00
Relay
Diagram Reference: 26
Get Part
68F8211700
Wire, lead
Diagram Reference: 27
Get Part
68V8195300
Stay, relay
Diagram Reference: 32
Get Part
9778060620
Screw, tapping(6k8)
Diagram Reference: 33
Get Part
9046423199
Clamp(4hm)
Diagram Reference: 34
Get Part
60V8217000 (Go to P/N ) PE0-OM-070043)
Fuse box assembly
Diagram Reference: 35
Get Part
60V8215100 (Go to P/N ) PE0-OM-070043)
Fuse (100A)
Diagram Reference: 36
Get Part
68F8195A00
Relay assembly
Diagram Reference: 37
Get Part
67F8215100
Fuse
Diagram Reference: 38
Get Part
67F8215110
Fuse
Diagram Reference: 39
Get Part
68F8284600
Screw, pan head (m5)
Diagram Reference: 40
Get Part
9778050620
Screw, tapping
Diagram Reference: 41
Get Part
60V8554400
Case
Diagram Reference: 42
Get Part
67F2812A00
Puller, fuse
Diagram Reference: 43
Get Part
60V8215700
Damper
Diagram Reference: 44
Get Part
60V8133600
Grommet
Diagram Reference: 45
Get Part
60V8133610
Grommet
Diagram Reference: 46
Get Part
60V8112800
Clamp
Diagram Reference: 47
Get Part
60V8194210
Cover
Diagram Reference: 49
Get Part
9046408004
Clamp
Diagram Reference: 50
Get Part
60V8217600
Damper
Diagram Reference: 51
Get Part
9016905M00
Screw truss head tapping
Diagram Reference: 53
Get Part
65L8588600
Thermosensor
Diagram Reference: 54
Get Part
60V8555300
Nut, Rotor
Diagram Reference: 55
Get Part
9020112M34
Washer (692)
Diagram Reference: 56
Get Part
60V8191900 (Go to P/N ) PE0-OM-070043)
Graphic, Regulator
Diagram Reference: 57
Get Part
60V8191910
Graphic, regulator
Diagram Reference: 58
Get Part
69J8194900 (AP)
Wire, lead (isolator, 3.8m )
Diagram Reference: 59
