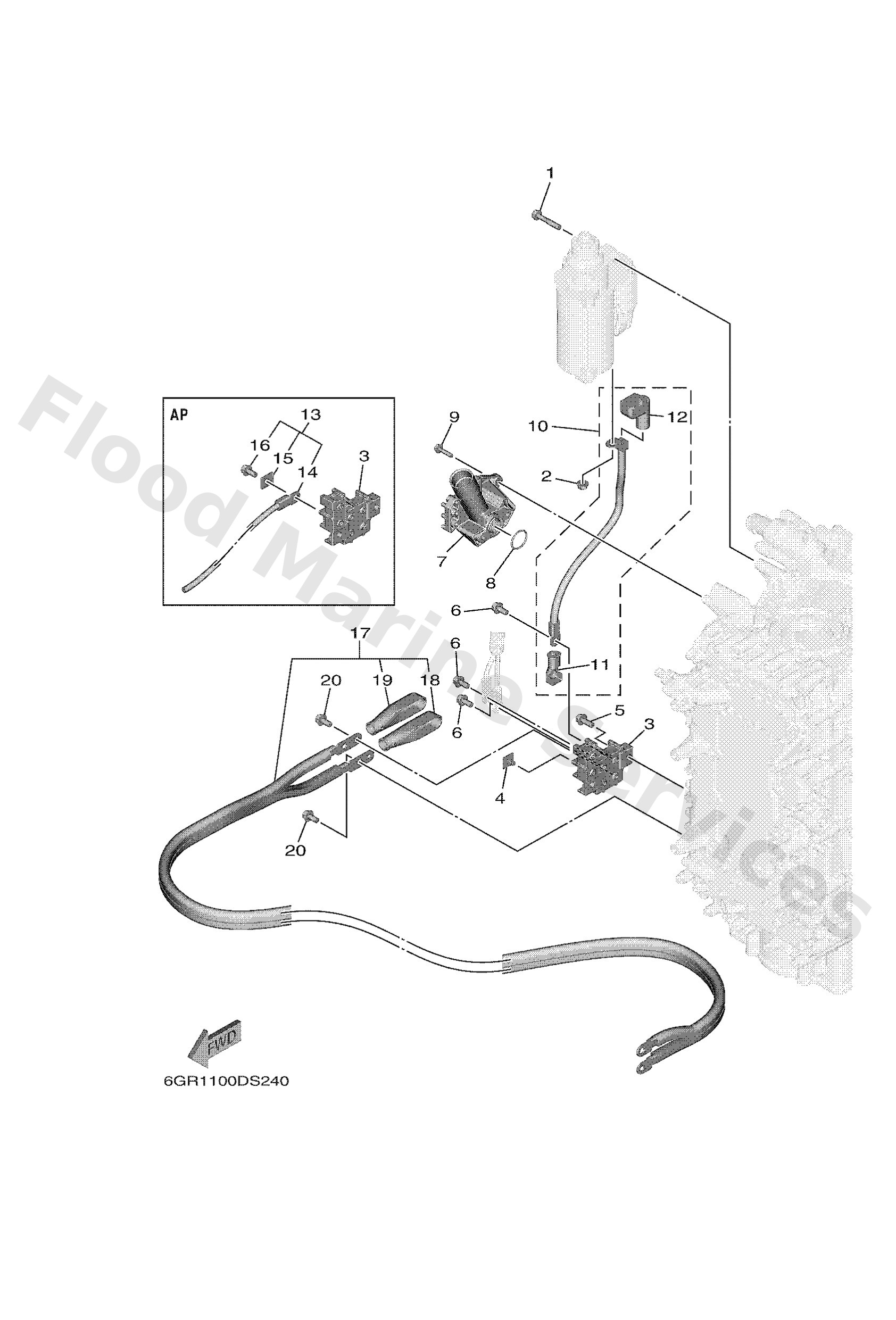

Diagram: ELECTRICAL 3

Diagram

Parts List

9751308545
Bolt, with washer
Diagram Reference: 1
Get Part
9017908003
Nut
Diagram Reference: 2
Get Part
6GR8192500
Terminal
Diagram Reference: 3
Get Part
6GR8191600
Cover, terminal
Diagram Reference: 4
Get Part
9589508020
Bolt, flange deep recess
Diagram Reference: 5
Get Part
9589508016 (AP)
Bolt, flange deep recess
Diagram Reference: 20
Get Part
6GR81929009S
Bracket, terminal
Diagram Reference: 7
Get Part
9321027370
O-ring(1kt)
Diagram Reference: 8
Get Part
9589506025
Bolt, flange deep recess
Diagram Reference: 9
Get Part
6GR8211700
Wire, lead
Diagram Reference: 10
Get Part
6GR8211910
Cover, lead wire
Diagram Reference: 11
Get Part
6AW8211910
Cover, lead wire
Diagram Reference: 12
Get Part
6GR762W000 (ASK TO MARINE DIV)
Battery isolator kit 3.8m-13f
Diagram Reference: 13
Get Part
6GR8194900
Wire, Lead
Diagram Reference: 14
Get Part
6P28192300
Washer
Diagram Reference: 15
Get Part
6GR8210500 (AP)
Wire harness
Diagram Reference: 17
Get Part
6AW8211900
Cover, lead wire (black)
Diagram Reference: 18
Get Part
6AW8211920
Cover, lead wire (red)
Diagram Reference: 19
Get Part
