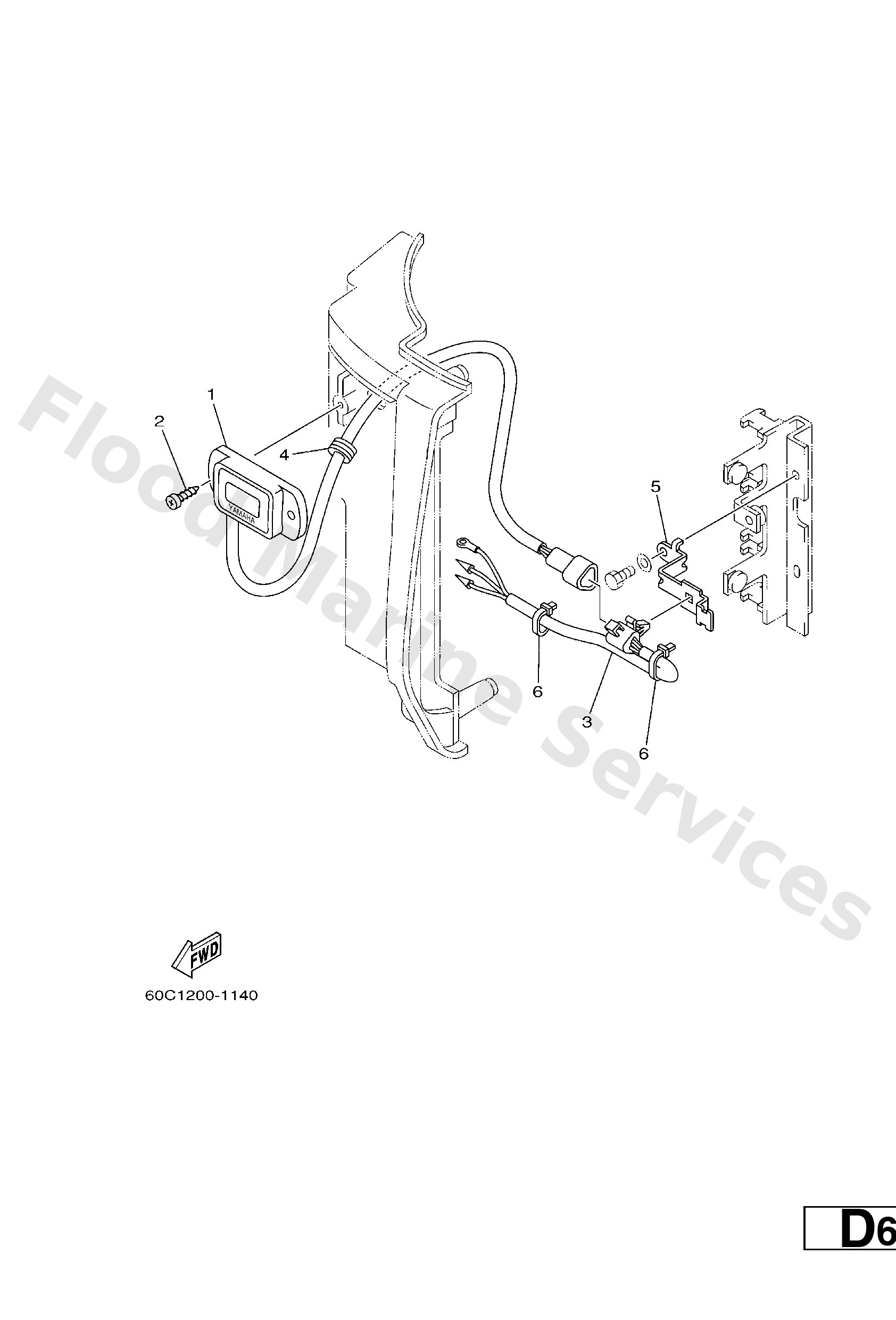

Diagram: ELECTRICAL 4

Diagram

Parts List

6Y58350420

Hour meter assembly

Diagram Reference: 1

9016705009

Screw, tapping

Diagram Reference: 2

60C8258600 (Go to P/N ) PE0-OM-060006)

Extension, wire harness

Diagram Reference: 3

9048001008

Grommet

Diagram Reference: 4

60C8431R00 (Go to P/N ) PE0-OM-060006)

Stay, Setting

Diagram Reference: 5

9046511M10 (Go to P/N ) PE0-OM-060006)

Clamp

Diagram Reference: 6
