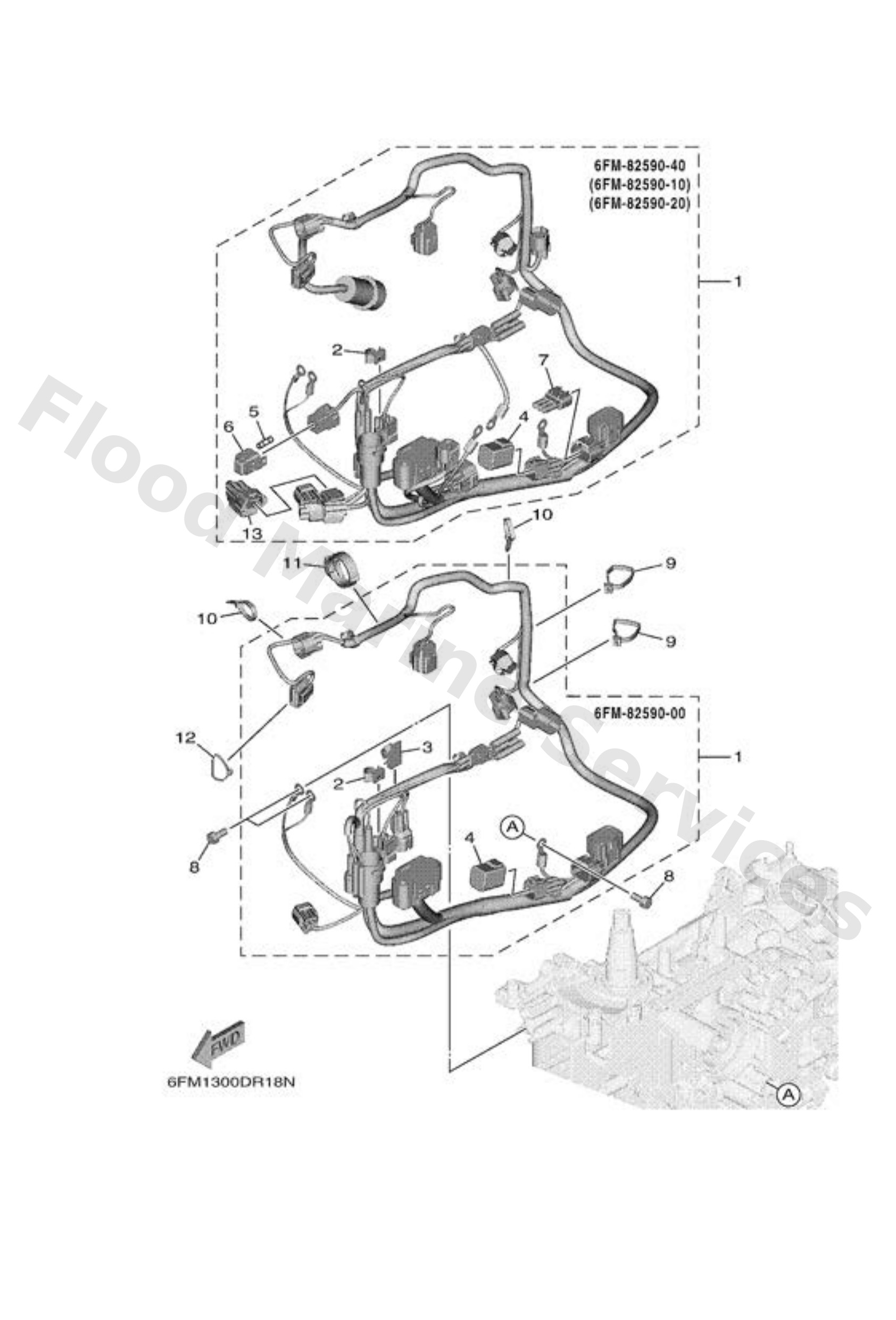

Diagram: ELECTRICAL 4
Parts List
Wire harness assembly
Diagram Reference: 1
Wire harness assembly
Diagram Reference: 1
Wire harness assembly
Diagram Reference: 1
Wire harness assembly
Diagram Reference: 1
Clamp(65j)
Diagram Reference: 2
Clamp
Diagram Reference: 3
White cap 1 (4pin)
Diagram Reference: 4
Fuse
Diagram Reference: 5
Cap (yellow)
Diagram Reference: 6
Cap 1 (3p)
Diagram Reference: 7
Bolt, with washer(6r6)
Diagram Reference: 8
Clamp(6e7)
Diagram Reference: 9
Clamp (6e5)
Diagram Reference: 10
Clamp
Diagram Reference: 11
Clamp(63m)
Diagram Reference: 12
Diode assembly
Diagram Reference: 13
