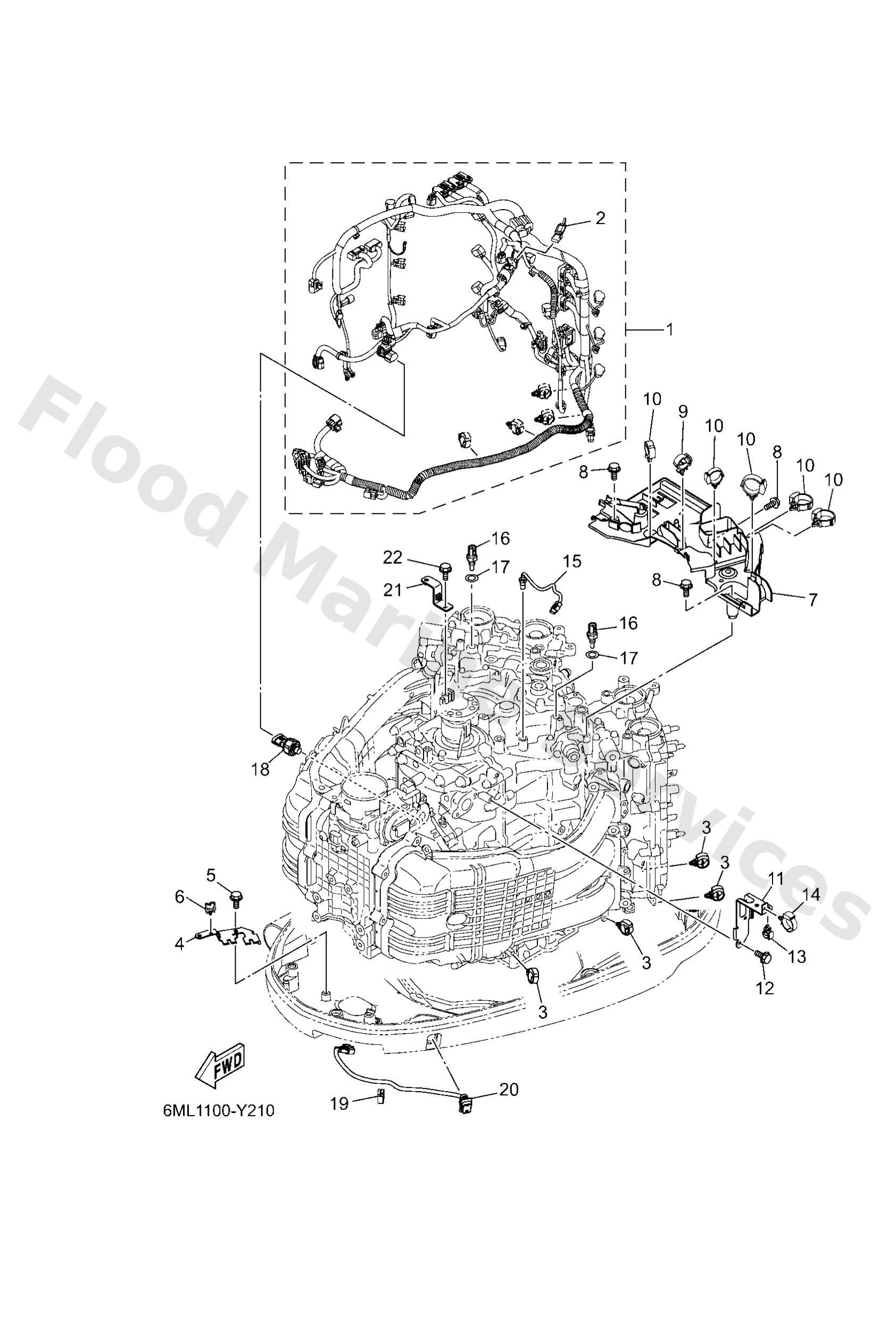

Diagram: ELECTRICAL 4

Diagram

Parts List

6ML8259000
Wire harness assembly
Diagram Reference: 1
Get Part
6CE8198001
Diode assembly
Diagram Reference: 2
Get Part
9046420181
Clamp(4ap)
Diagram Reference: 3
Get Part
6ML8259400
Clamp
Diagram Reference: 4
Get Part
95D9506012
Bolt, flange deep recess
Diagram Reference: 5
Get Part
9046408004
Clamp
Diagram Reference: 6
Get Part
6ML8258900
Protecter, wire harness
Diagram Reference: 7
Get Part
95D9506020
Bolt, flange deep recess
Diagram Reference: 8
Get Part
9046418246
Clamp(4tr)
Diagram Reference: 9
Get Part
9046412183
Clamp(jn2)
Diagram Reference: 10
Get Part
6ML8238800
Plate
Diagram Reference: 11
Get Part
95D9506016
Bolt, flange deep recess
Diagram Reference: 12
Get Part
9046413249
Clamp
Diagram Reference: 13
Get Part
6CB8579000
Thermosensor assembly
Diagram Reference: 15
Get Part
6ML8579000
Thermosensor assembly
Diagram Reference: 16
Get Part
9043010004
Gasket
Diagram Reference: 17
Get Part
6AW8365101
Sender, oil pressure
Diagram Reference: 18
Get Part
9046416001
Clamp
Diagram Reference: 19
Get Part
6GR8256300
Trim & tilt switch assembly
Diagram Reference: 20
Get Part
6CB8195200
Holder, relay
Diagram Reference: 21
Get Part
