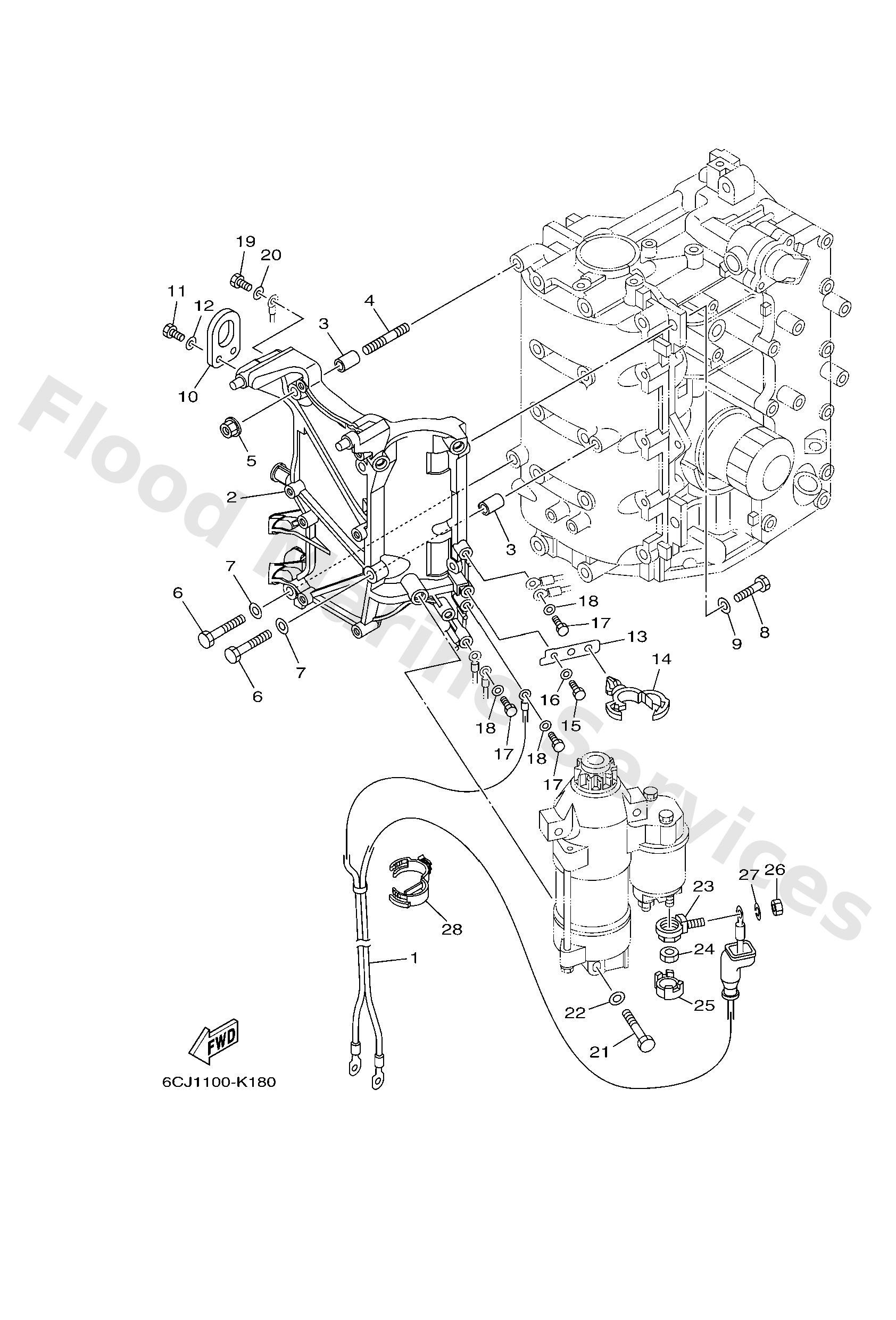

Diagram: ELECTRICAL 4

Diagram

Parts List

6C582105U0
Battery cable
Diagram Reference: 1
Get Part
6CJ818220094
Bracket, starting motor
Diagram Reference: 2
Get Part
9959010114
Pin, dowel
Diagram Reference: 3
Get Part
9568008330
Bolt, stud
Diagram Reference: 4
Get Part
9017908M34
Nut
Diagram Reference: 5
Get Part
9709508035
Bolt(70w)
Diagram Reference: 6
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 7
Get Part
9709508025
Bolt (62g)
Diagram Reference: 8
Get Part
62Y1111900
Hanger, engine
Diagram Reference: 10
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 11
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 12
Get Part
6CJ8552500
Plate
Diagram Reference: 13
Get Part
9046420181
Clamp(4ap)
Diagram Reference: 14
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 15
Get Part
9701308045
Bolt
Diagram Reference: 21
Get Part
9290308600
Washer, plain (663)
Diagram Reference: 22
Get Part
60V8192500
Terminal
Diagram Reference: 23
Get Part
9017908003
Nut
Diagram Reference: 24
Get Part
68F8258200
Cover, wire harness
Diagram Reference: 25
Get Part
9533308600
Nut(6l2)
Diagram Reference: 26
Get Part
9290308100
Ybs67-8 washer, spring
Diagram Reference: 27
Get Part
9046430003
Clamp
Diagram Reference: 28
