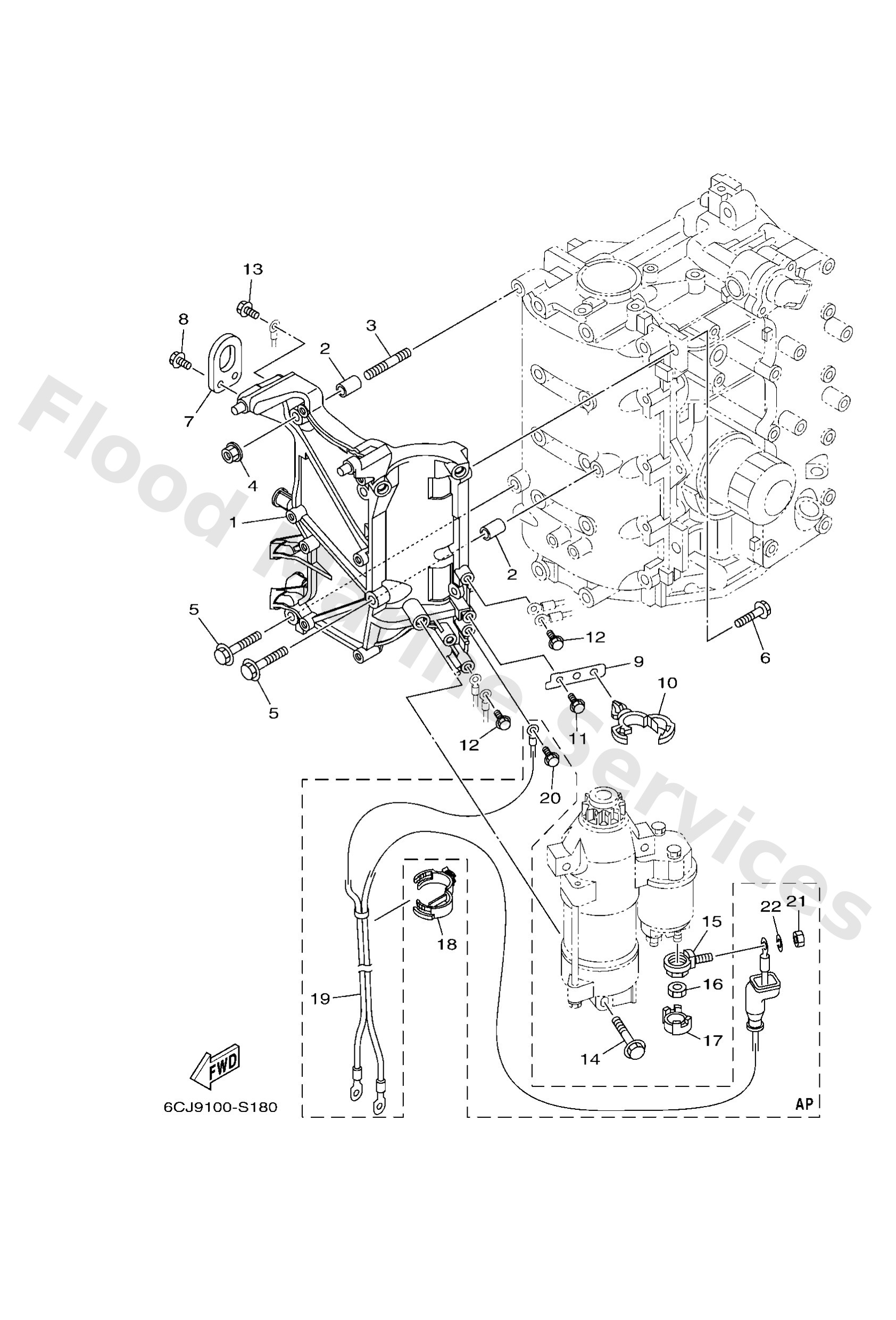

Diagram: ELECTRICAL 4

Diagram

Parts List

6CJ8182200
Bracket, starting motor
Diagram Reference: 1
Get Part
9953010114
Pin, dowel(3vd)
Diagram Reference: 2
Get Part
9568008330
Bolt, stud
Diagram Reference: 3
Get Part
9017908M34
Nut
Diagram Reference: 4
Get Part
9759508535
Bolt, hexagon w/w deep recess
Diagram Reference: 5
Get Part
9759508525
Bolt, hexagon deep recess
Diagram Reference: 6
Get Part
62Y1111900
Hanger, engine
Diagram Reference: 7
Get Part
9759506520
Bolt(7u8)
Diagram Reference: 8
Get Part
6CJ8552500
Plate
Diagram Reference: 9
Get Part
9046420181
Clamp(4ap)
Diagram Reference: 10
Get Part
9759506516 (AP)
Bolt, with washer(6r6)
Diagram Reference: 20
Get Part
9751308545
Bolt, with washer
Diagram Reference: 14
Get Part
60V8192500
Terminal
Diagram Reference: 15
Get Part
9017908003
Nut
Diagram Reference: 16
Get Part
68F8258200
Cover, wire harness
Diagram Reference: 17
Get Part
9046430003
Clamp
Diagram Reference: 18
Get Part
6C582105U1 (AP)
Battery cable
Diagram Reference: 19
Get Part
9533308600 (AP)
Nut(6l2)
Diagram Reference: 21
Get Part
9290308100 (AP)
Ybs67-8 washer, spring
Diagram Reference: 22
Get Part
