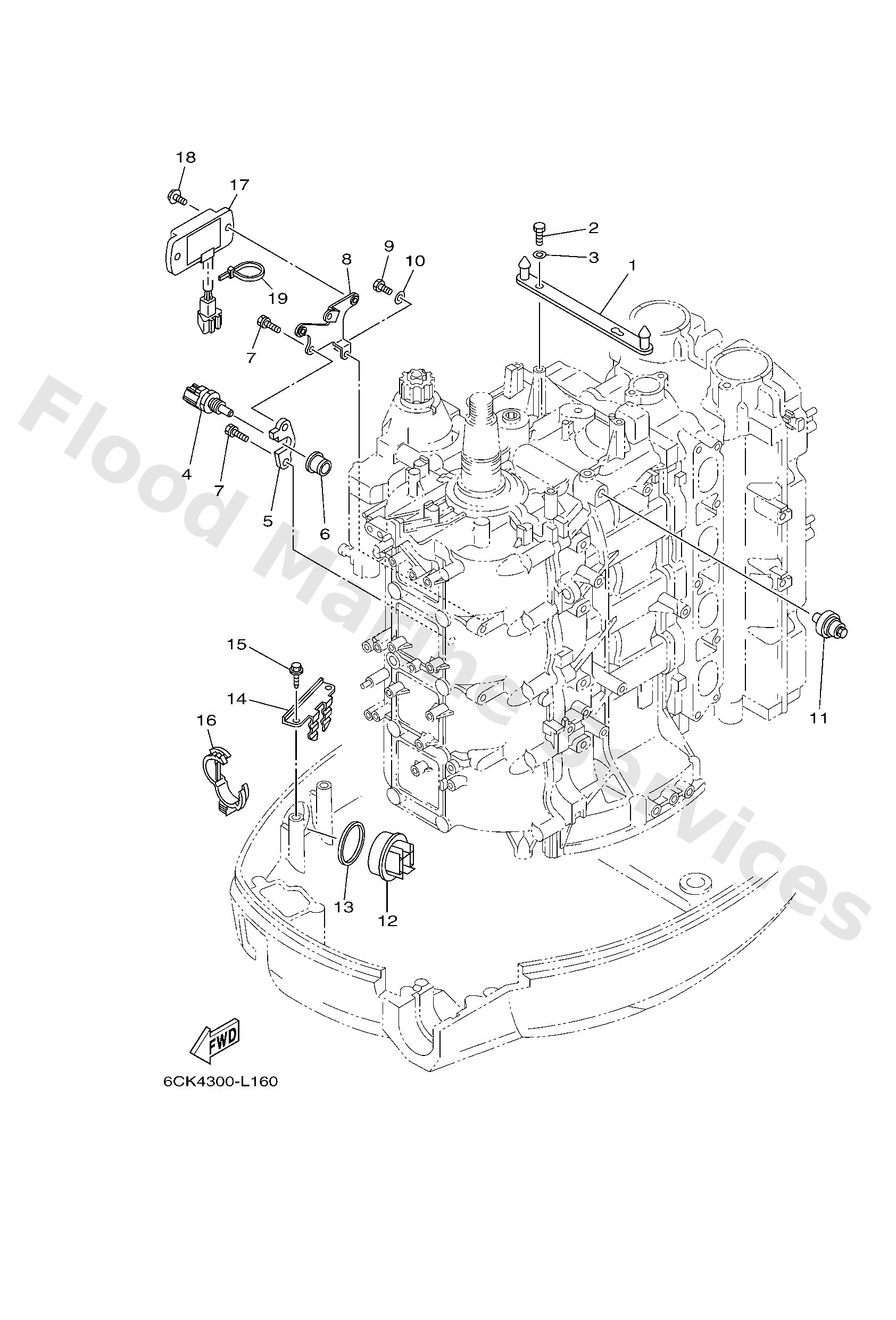

Diagram: ELECTRICAL 4

Diagram

Parts List

6D88132G00
Plate
Diagram Reference: 1
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 2
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 3
Get Part
67F8579000
Thermosensor assembly
Diagram Reference: 4
Get Part
67F8575700
Retainer
Diagram Reference: 5
Get Part
68V8575300
Gasket, sender unit
Diagram Reference: 6
Get Part
9011906MA2
Bolt, with washer
Diagram Reference: 7
Get Part
6BC8351900
Bracket, meter
Diagram Reference: 8
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 9
Get Part
68V8250400
Oil pressure switch assembly
Diagram Reference: 11
Get Part
68F42723108D
Cover, bottom
Diagram Reference: 12
Get Part
6E58258700
Gasket
Diagram Reference: 13
Get Part
67F8361400
Bracket
Diagram Reference: 14
Get Part
9010906M86
Bolt
Diagram Reference: 15
Get Part
9046430003
Clamp
Diagram Reference: 16
Get Part
6Y58350422
Hour meter assembly
Diagram Reference: 17
Get Part
9798005214
Screw, with washer
Diagram Reference: 18
Get Part
9046511M10
Clamp
Diagram Reference: 19
Get Part
