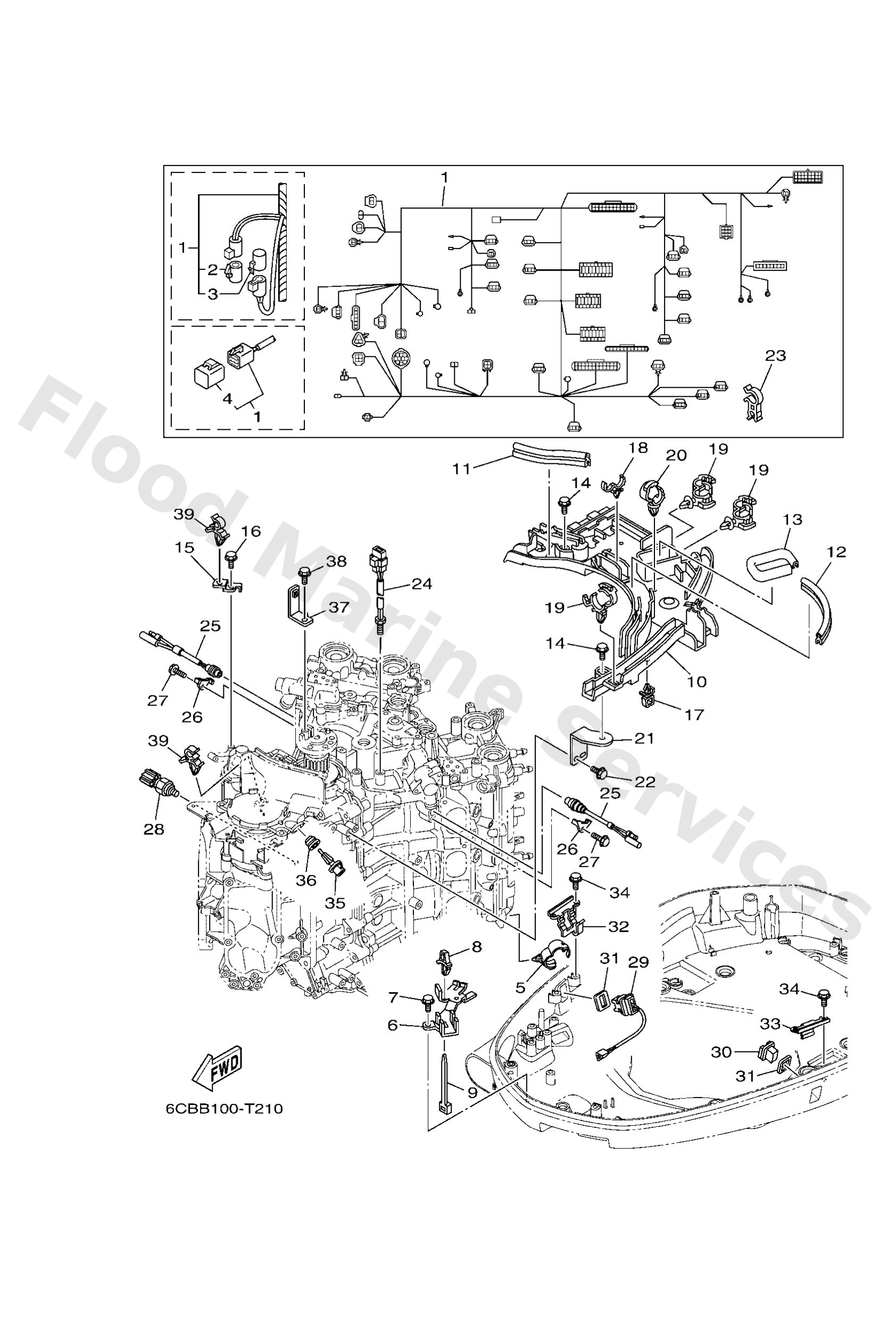

Diagram: ELECTRICAL 4

Diagram

Parts List

6CB8259012
Wire harness assembly
Diagram Reference: 1
Get Part
6P28258200
Cap 1 (Female)
Diagram Reference: 2
Get Part
6P28258210
Cap 1 (Male)
Diagram Reference: 3
Get Part
6Y88258211
Cap 1 (4Pin)
Diagram Reference: 4
Get Part
9046420181
Clamp
Diagram Reference: 5
Get Part
6CB8259400
Clamp
Diagram Reference: 6
Get Part
95D9506012
Bolt, flange deep recess
Diagram Reference: 7
Get Part
9046406001
Clamp
Diagram Reference: 8
Get Part
9046513M24
Clamp
Diagram Reference: 9
Get Part
6CB8258910
Protecter, wire harness
Diagram Reference: 10
Get Part
6AH4261700
Damper, Form
Diagram Reference: 11
Get Part
6CB4261700
Damper, form
Diagram Reference: 12
Get Part
6CB4262900
Seal
Diagram Reference: 13
Get Part
95D9506020
Bolt, flange deep recess
Diagram Reference: 14
Get Part
6CB8132G00
Plate
Diagram Reference: 15
Get Part
95D9506016
Bolt, flange deep recess
Diagram Reference: 16
Get Part
9046411121
Clamp(4gy)
Diagram Reference: 17
Get Part
9046418246
Clamp
Diagram Reference: 18
Get Part
9046412183
Clamp
Diagram Reference: 19
Get Part
6CB8238800
Plate
Diagram Reference: 21
Get Part
9046423001
Clamp
Diagram Reference: 23
Get Part
6CB8579000
Thermosensor Assy
Diagram Reference: 24
Get Part
6P28256001
Thermo Switch Assy
Diagram Reference: 25
Get Part
6E98258800
Plate
Diagram Reference: 26
Get Part
6AW8365100
Sender, Oil Pressure
Diagram Reference: 28
Get Part
69J8256301
Trim & tilt switch assembly
Diagram Reference: 29
Get Part
69J4272301
18
Diagram Reference: 30
Get Part
69J8258700
Gasket
Diagram Reference: 31
Get Part
63P8361401
Bracket
Diagram Reference: 32
Get Part
6DA8361400
Bracket
Diagram Reference: 33
Get Part
63P8588600
Sensor, Air Temperature
Diagram Reference: 35
Get Part
6CE1443500
Grommet
Diagram Reference: 36
Get Part
6CB8195210
Holder, relay
Diagram Reference: 37
Get Part
9046409129
Clamp
Diagram Reference: 39
