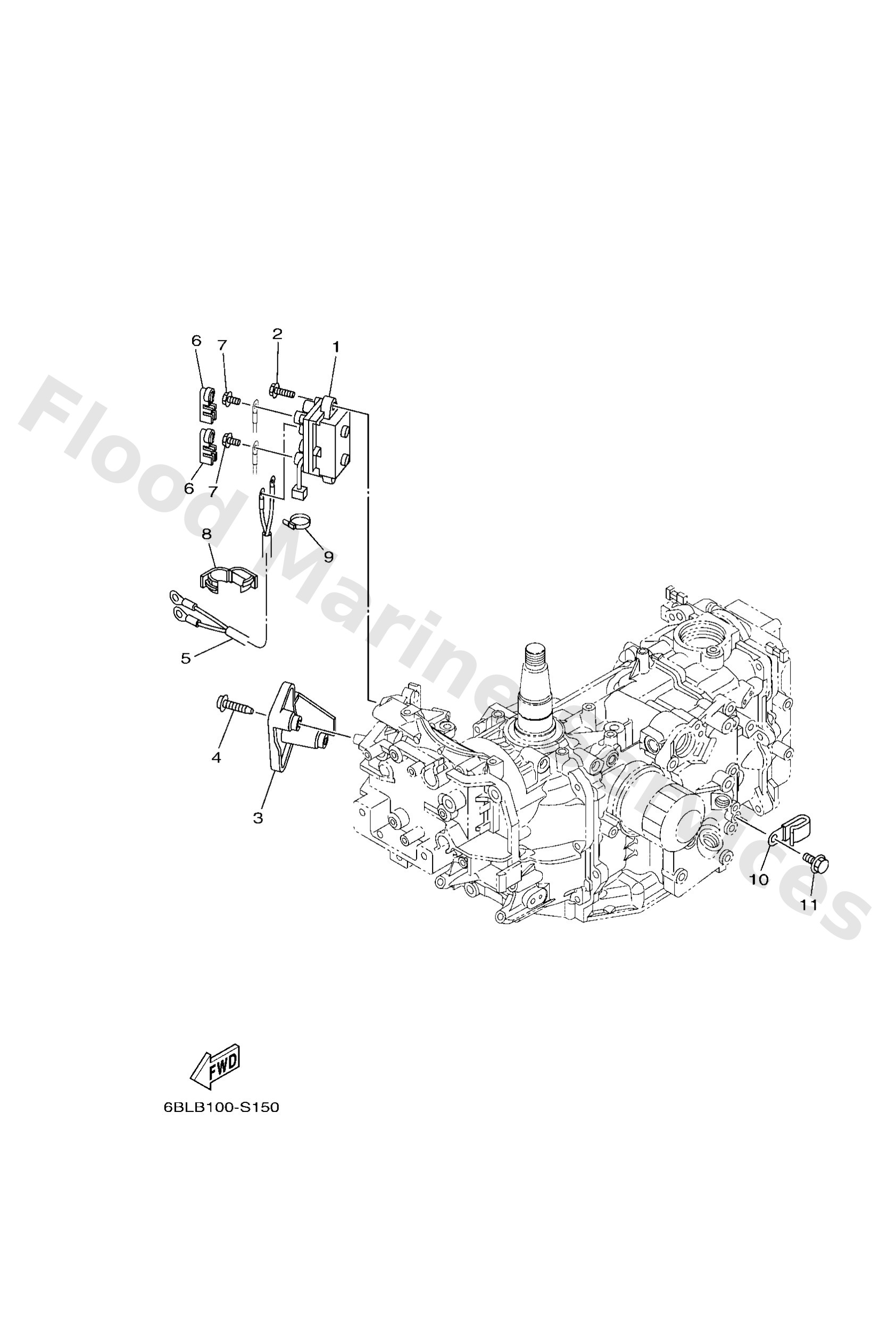

Diagram: ELECTRICAL 4

Diagram

Parts List

63P8195000
Relay assembly
Diagram Reference: 1
Get Part
9757506520
Bolt, hexagon w/w deep recess
Diagram Reference: 2
Get Part
6BL8194200
Cover
Diagram Reference: 3
Get Part
9016705009
Screw, tapping
Diagram Reference: 4
Get Part
6BL8194900
Wire, lead
Diagram Reference: 5
Get Part
6P28183X00
Cap, terminal
Diagram Reference: 6
Get Part
9759506610
Bolt, hexagon w/w deep recess
Diagram Reference: 7
Get Part
9046418004
Clamp
Diagram Reference: 8
Get Part
9046511M10
Clamp
Diagram Reference: 9
Get Part
9046506M90
Clamp
Diagram Reference: 10
Get Part
9759506516
Bolt, with washer(6r6)
Diagram Reference: 11
