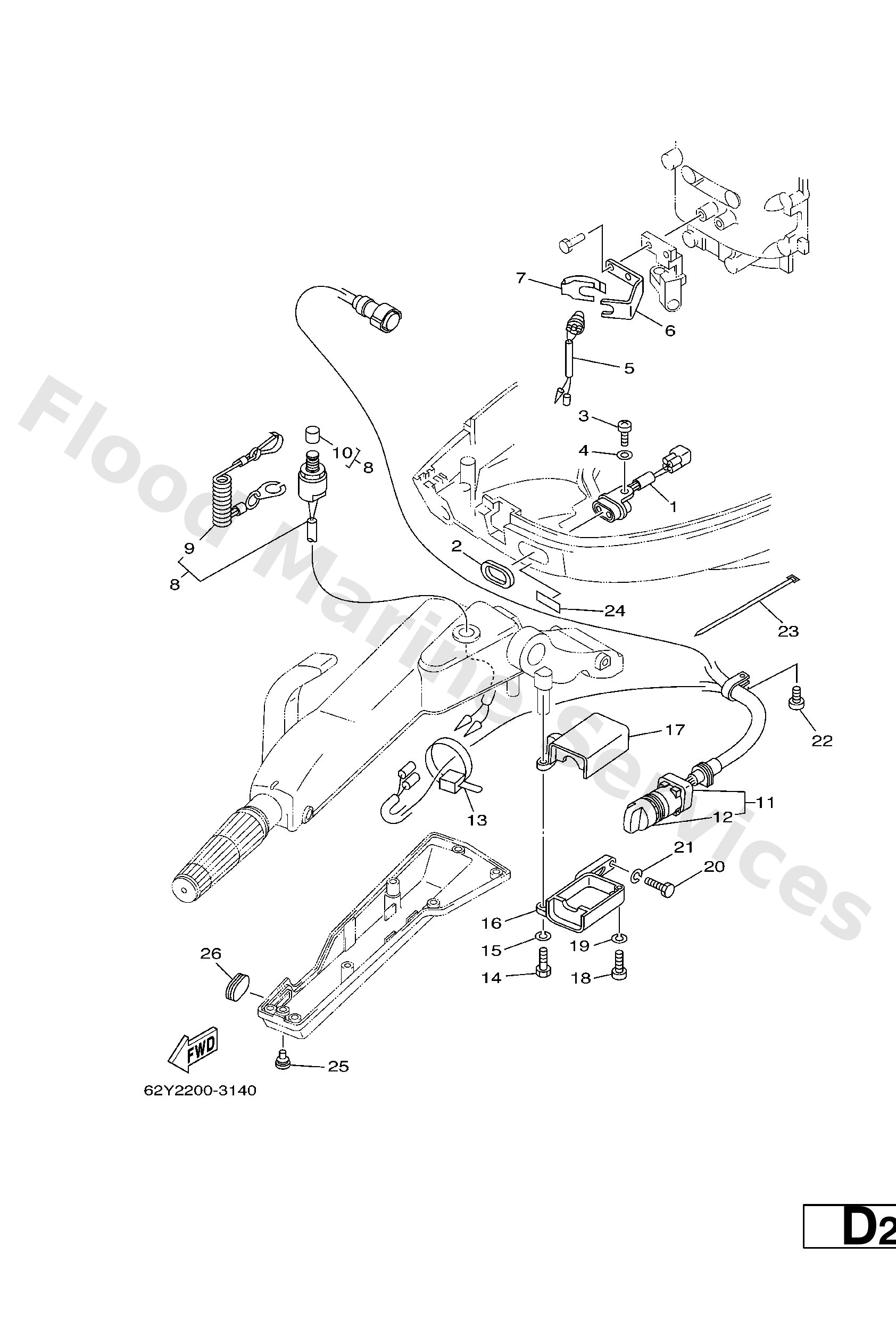

Diagram: ELECTRICAL 4

Diagram

Parts List

62Y−84301−00
Pilot light assembly 1
Diagram Reference: 1
Get Part
6H4−83589−00
Gasket
Diagram Reference: 2
Get Part
97880−06014
Screw, pan head(6h2)
Diagram Reference: 3
Get Part
92990−06600
Washer, plain (646)
Diagram Reference: 4
Get Part
6F5−82540−00
Neutral switch assembly
Diagram Reference: 5
Get Part
62Y−82554−00
Stay, neutral switch
Diagram Reference: 6
Get Part
62Y−82555−10
14 −
Diagram Reference: 7
Get Part
69W−82575−00
Engine stop switch assembly
Diagram Reference: 8
Get Part
682−82556−00
Lanyard, stop switch
Diagram Reference: 9
Get Part
689−8257Y−00
Cap
Diagram Reference: 10
Get Part
69W−82510−00
Main switch assembly
Diagram Reference: 11
Get Part
676−82577−00
Cap, key
Diagram Reference: 12
Get Part
90465−13M11
Clamp (6e5)
Diagram Reference: 13
Get Part
97095−06025
Bolt
Diagram Reference: 14
Get Part
92995−06100
Washer(6a1)
Diagram Reference: 15
Get Part
63D−8252F−01−4D
Cover, main switch 2
Diagram Reference: 16
Get Part
63D−8252E−01−4D
Cover, main switch 1
Diagram Reference: 17
Get Part
97885−06025
Screw, pan head(6b0)
Diagram Reference: 18
Get Part
97095−06020
Bolt(7u8)
Diagram Reference: 20
Get Part
97885−06012
Screw, pan head(62j)
Diagram Reference: 22
Get Part
90465−13M36
Clamp(6h4)
Diagram Reference: 23
Get Part
6H4−85415−10
Mark, signal lamp
Diagram Reference: 24
Get Part
90480−06M19
Grommet (6e3)
Diagram Reference: 25
Get Part
67C−42726−00
15 −
Diagram Reference: 26
Get Part
