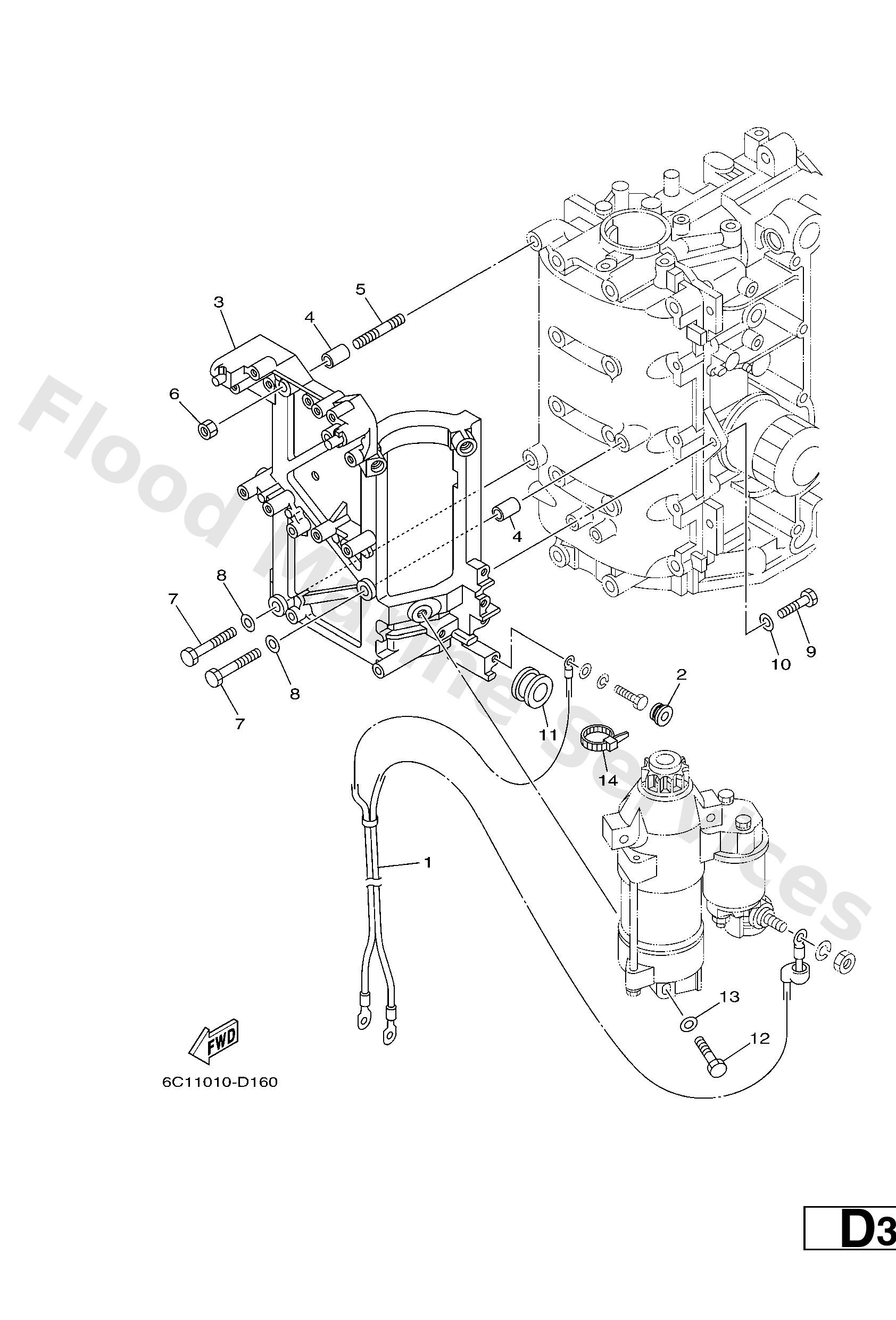

Diagram: ELECTRICAL 4
Parts List
Battery cable
Diagram Reference: 1
Grommet(53y)
Diagram Reference: 2
Bracket, starting motor
Diagram Reference: 3
Pin, dowel
Diagram Reference: 4
Bolt, stud
Diagram Reference: 5
Nut (661)
Diagram Reference: 6
Bolt(70w)
Diagram Reference: 7
Washer, plain (663)
Diagram Reference: 8
Bolt (62g)
Diagram Reference: 9
Grommet
Diagram Reference: 11
Bolt
Diagram Reference: 12
Washer, plain (663)
Diagram Reference: 13
Clamp
Diagram Reference: 14
