Diagram: ELECTRICAL 4

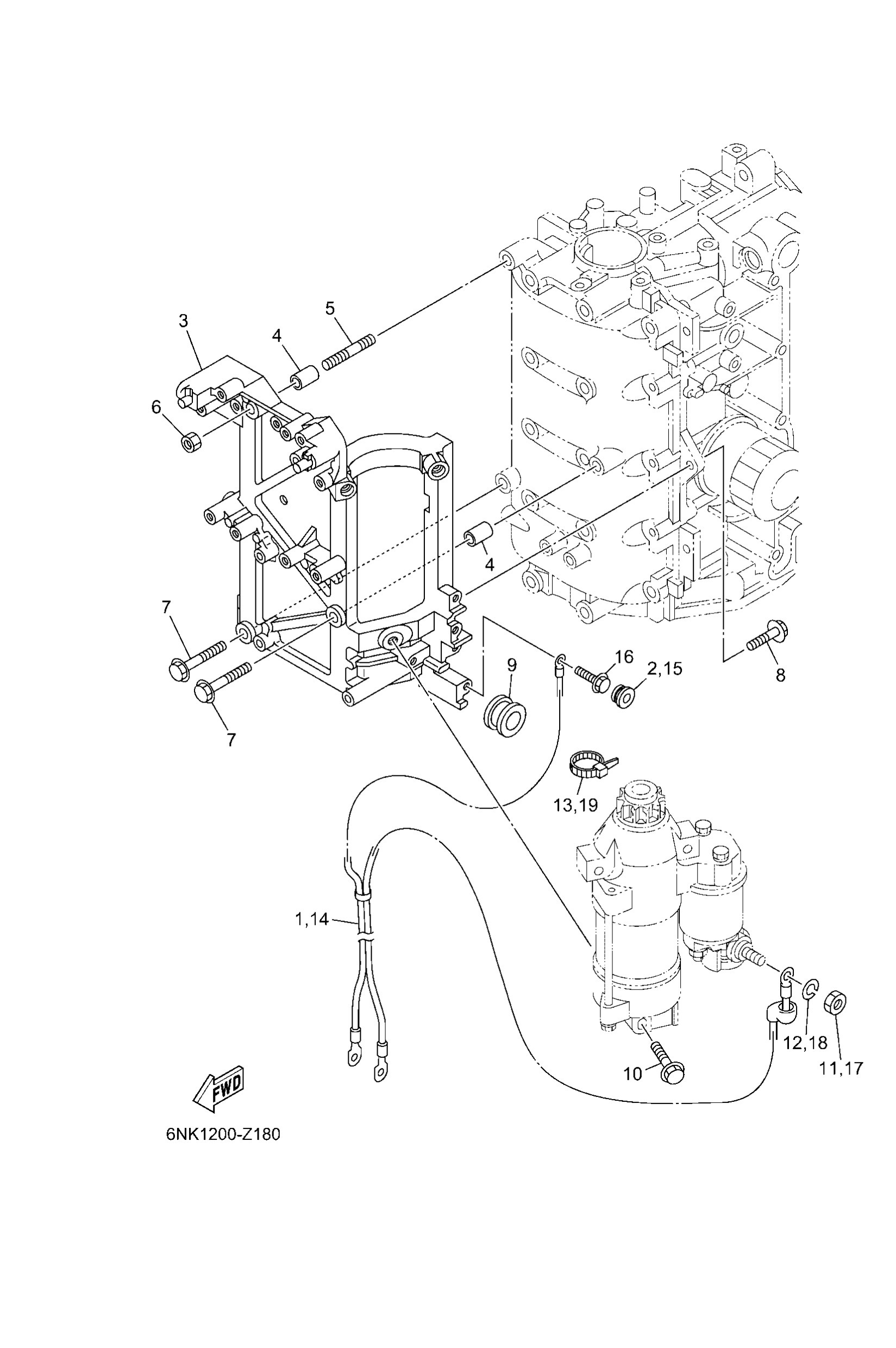

Diagram

Parts List

6C58210502 (FOR CAR,OTH)

Battery cable

Diagram Reference: 1

9048012072 (FOR CAR,OTH)

Grommet(53y)

Diagram Reference: 2

6C58182200

Bracket, starting motor

Diagram Reference: 3

9953010114

Pin, dowel(3vd)

Diagram Reference: 4

9568008330

Bolt, stud

Diagram Reference: 5

9538008600

Nut (661)

Diagram Reference: 6

97E9508535

Bolt, hexagon w/w deep recess

Diagram Reference: 7

97E9508525

Bolt, hexagon w/w deep recess

Diagram Reference: 8

9048024003

Grommet

Diagram Reference: 9

9751308545

Bolt, with washer

Diagram Reference: 10

9533308600 (FOR CAR,OTH)

Nut(6l2)

Diagram Reference: 11

9290308100 (FOR CAR,OTH)

Ybs67-8 washer, spring

Diagram Reference: 12

9046513M18 (AP EXCEPT CAR,OTH)

Clamp

Diagram Reference: 19

6C582105U2 (AP FOR CSA,MEX,CHL)

Battery cable

Diagram Reference: 14

97E9506620 (AP EXCEPT CAR,OTH)

Bolt, hexagon w/w deep recess

Diagram Reference: 16
