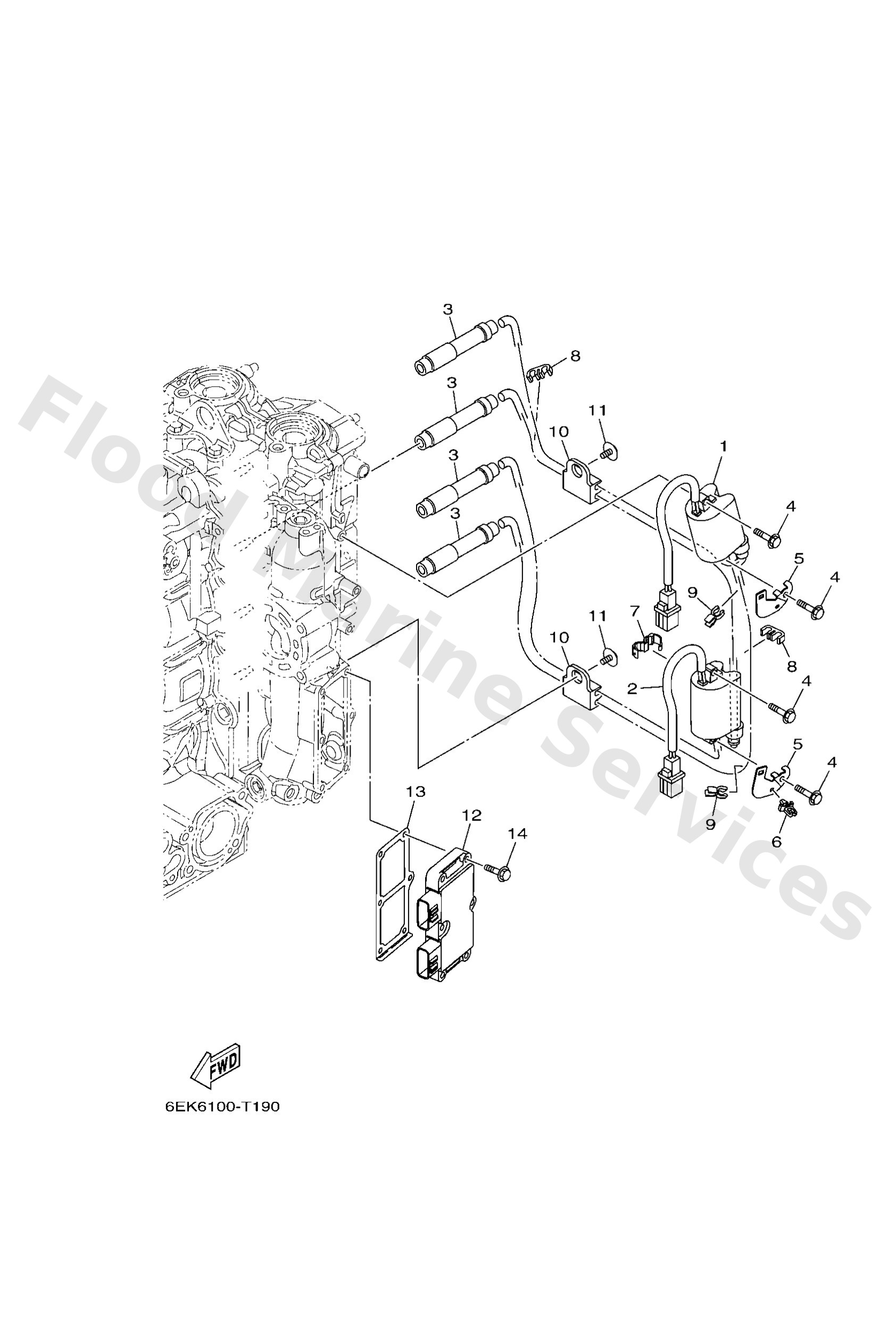

Parts List
Ignition coil assembly
Diagram Reference: 1
Ignition coil assembly
Diagram Reference: 2
Plug cap assembly
Diagram Reference: 3
Bolt, hexagon w/w deep recess
Diagram Reference: 4
Plate
Diagram Reference: 5
Clamp
Diagram Reference: 6
Clamp
Diagram Reference: 7
Clamp, cord
Diagram Reference: 8
Clamp(62y)
Diagram Reference: 9
Clamp, cord 2
Diagram Reference: 10
Bolt, with washer
Diagram Reference: 11
Rectifier & regulator assembly
Diagram Reference: 12
Plate, rectifier fitting
Diagram Reference: 13
Bolt, hexagon w/w deep recess
Diagram Reference: 14
