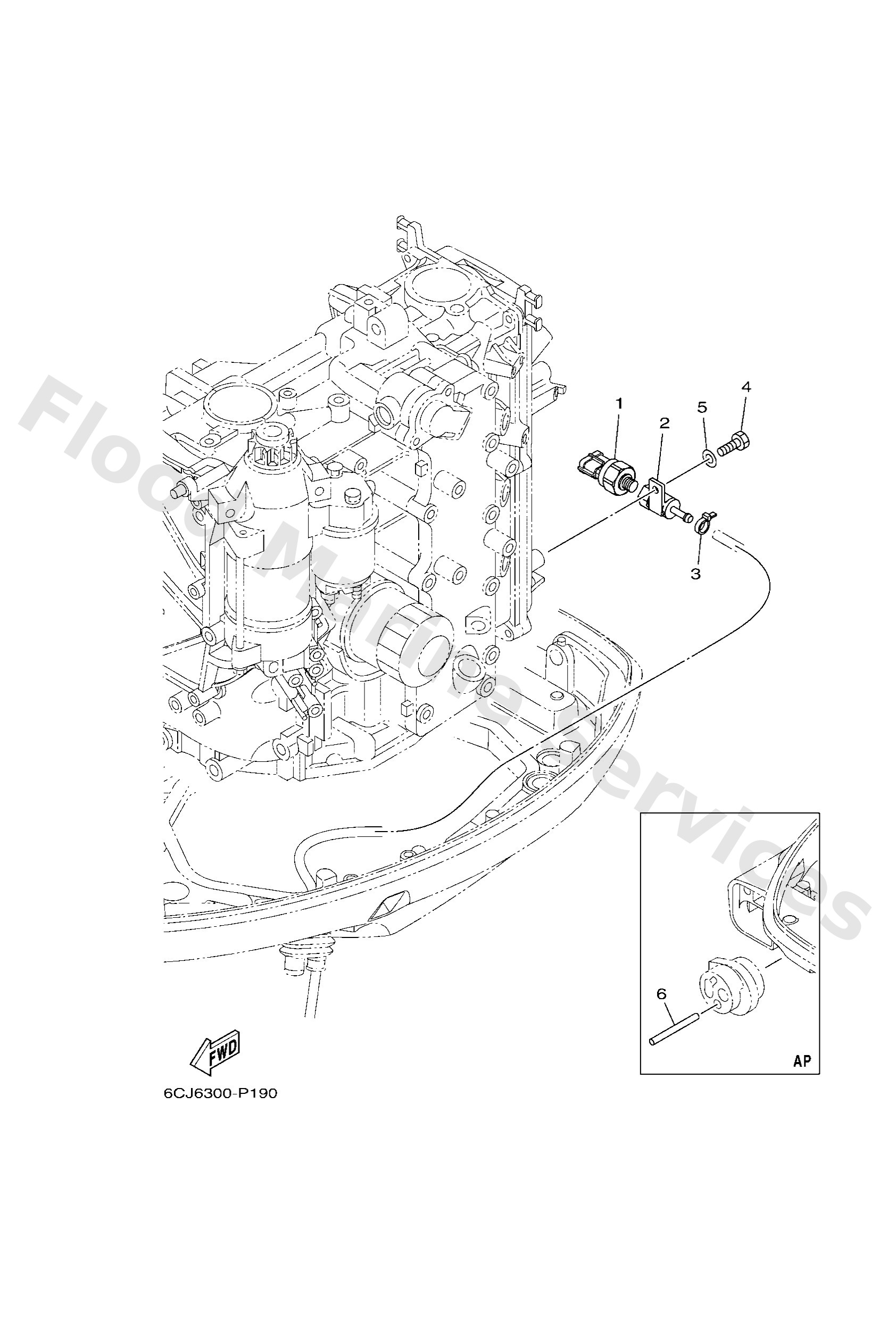

Diagram: ELECTRICAL 5

Diagram

Parts List

6AW8366B01 (FOR LAN SPEED)
Sensor, water pressure
Diagram Reference: 1
Get Part
60V8366D00 (FOR LAN SPEED)
Adaptor, input
Diagram Reference: 2
Get Part
9046511M10 (FOR LAN SPEED)
Clamp
Diagram Reference: 3
Get Part
9709506016 (FOR LAN SPEED)
Bolt, hexagon deep recess
Diagram Reference: 4
Get Part
9299506600 (FOR LAN SPEED)
Washer, plain (646)
Diagram Reference: 5
Get Part
60V4262900 (AP FOR LAN SPEED)
Seal
Diagram Reference: 6
Get Part
