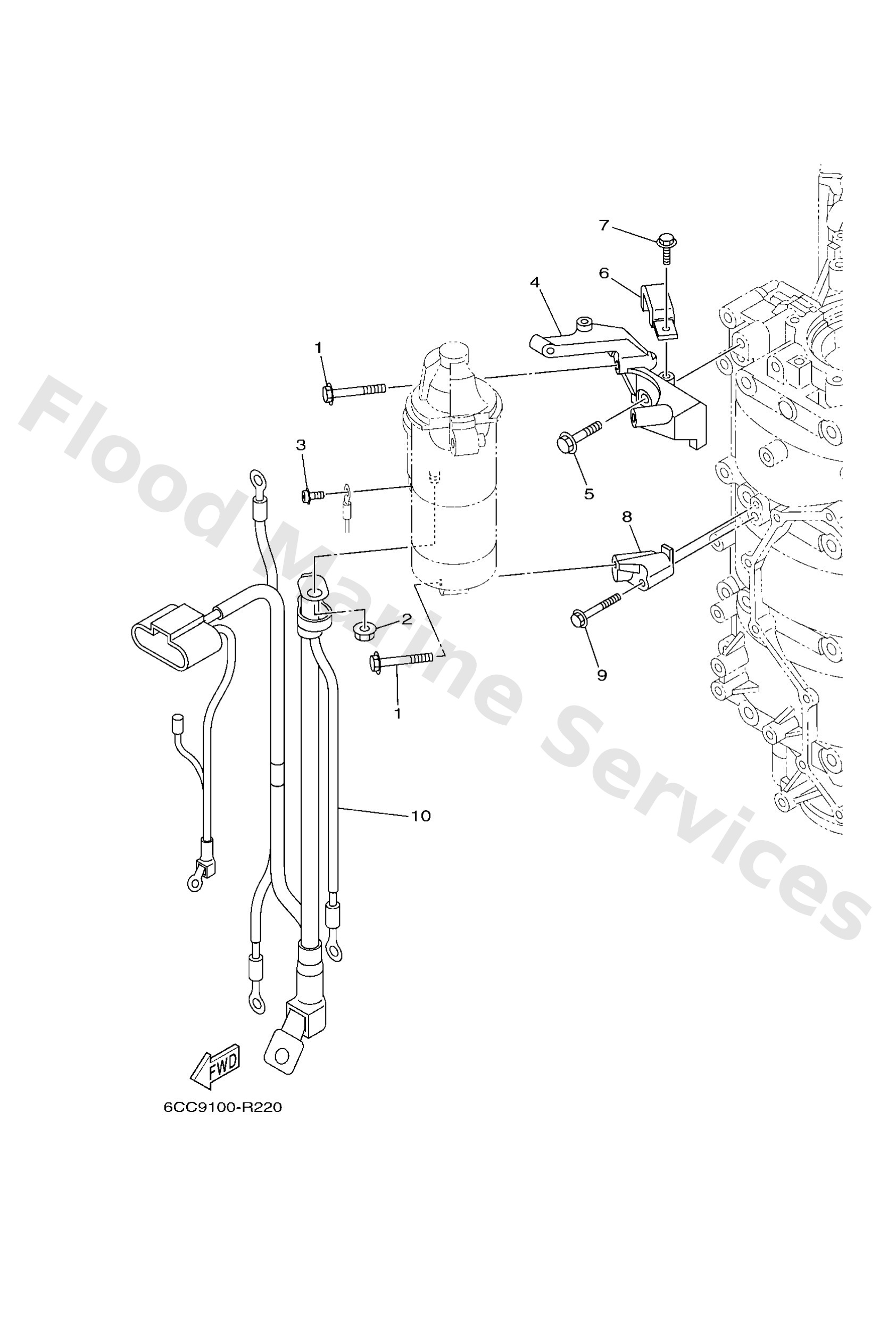

Diagram: ELECTRICAL 5
Parts List
Bolt, with washer
Diagram Reference: 1
Screw, With Washer
Diagram Reference: 3
Bracket, starting motor
Diagram Reference: 4
Bolt, Flange
Diagram Reference: 5
Clamp, lead 1
Diagram Reference: 6
Bolt, flange deep recess
Diagram Reference: 7
Stay, starting motor
Diagram Reference: 8
Bolt, Flange
Diagram Reference: 9
Wire harness assembly 2
Diagram Reference: 10
