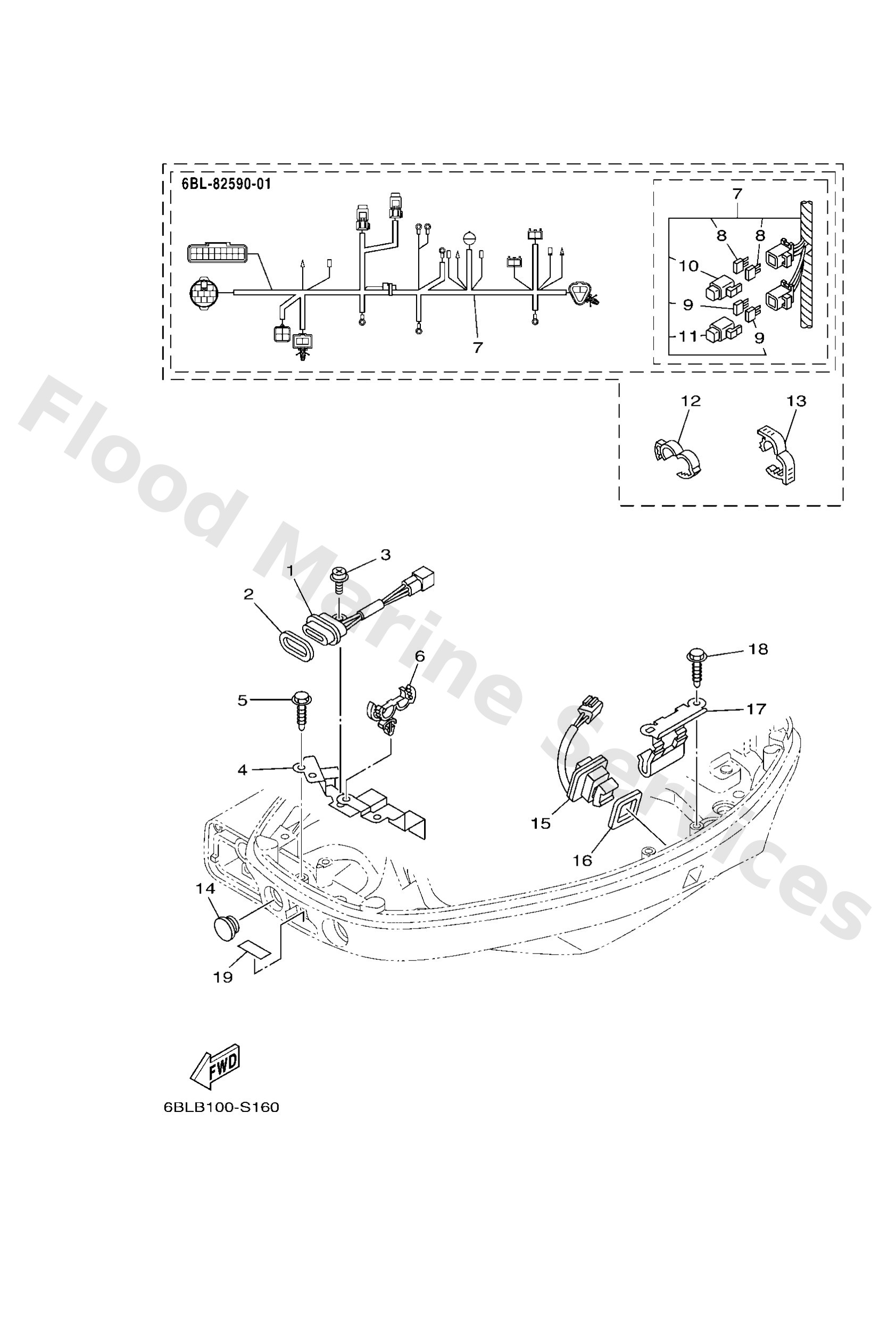

Diagram: ELECTRICAL 5

Diagram

Parts List

62Y8430100
Pilot light assembly 1
Diagram Reference: 1
Get Part
6FM8358900
Gasket
Diagram Reference: 2
Get Part
9798506212
Screw, with washer(6h3)
Diagram Reference: 3
Get Part
6BL8238800
Plate
Diagram Reference: 4
Get Part
9010906M86
Bolt
Diagram Reference: 5
Get Part
9046418246
Clamp(4tr)
Diagram Reference: 6
Get Part
6BL8259001
Wire harness assembly
Diagram Reference: 7
Get Part
67F8215100
Fuse
Diagram Reference: 8
Get Part
67F8215110
Fuse
Diagram Reference: 9
Get Part
67F8215B10
Cap (yellow)
Diagram Reference: 10
Get Part
67F8215B20
Cap (green)
Diagram Reference: 11
Get Part
9046416001
Clamp
Diagram Reference: 12
Get Part
9046418004
Clamp
Diagram Reference: 13
Get Part
6G14272500
Grommet
Diagram Reference: 14
Get Part
69J8256301
Trim & tilt switch assembly
Diagram Reference: 15
Get Part
69J8258700
Gasket
Diagram Reference: 16
Get Part
63P8361401
Bracket
Diagram Reference: 17
Get Part
67C8541500
Mark, signal lamp
Diagram Reference: 19
Get Part
