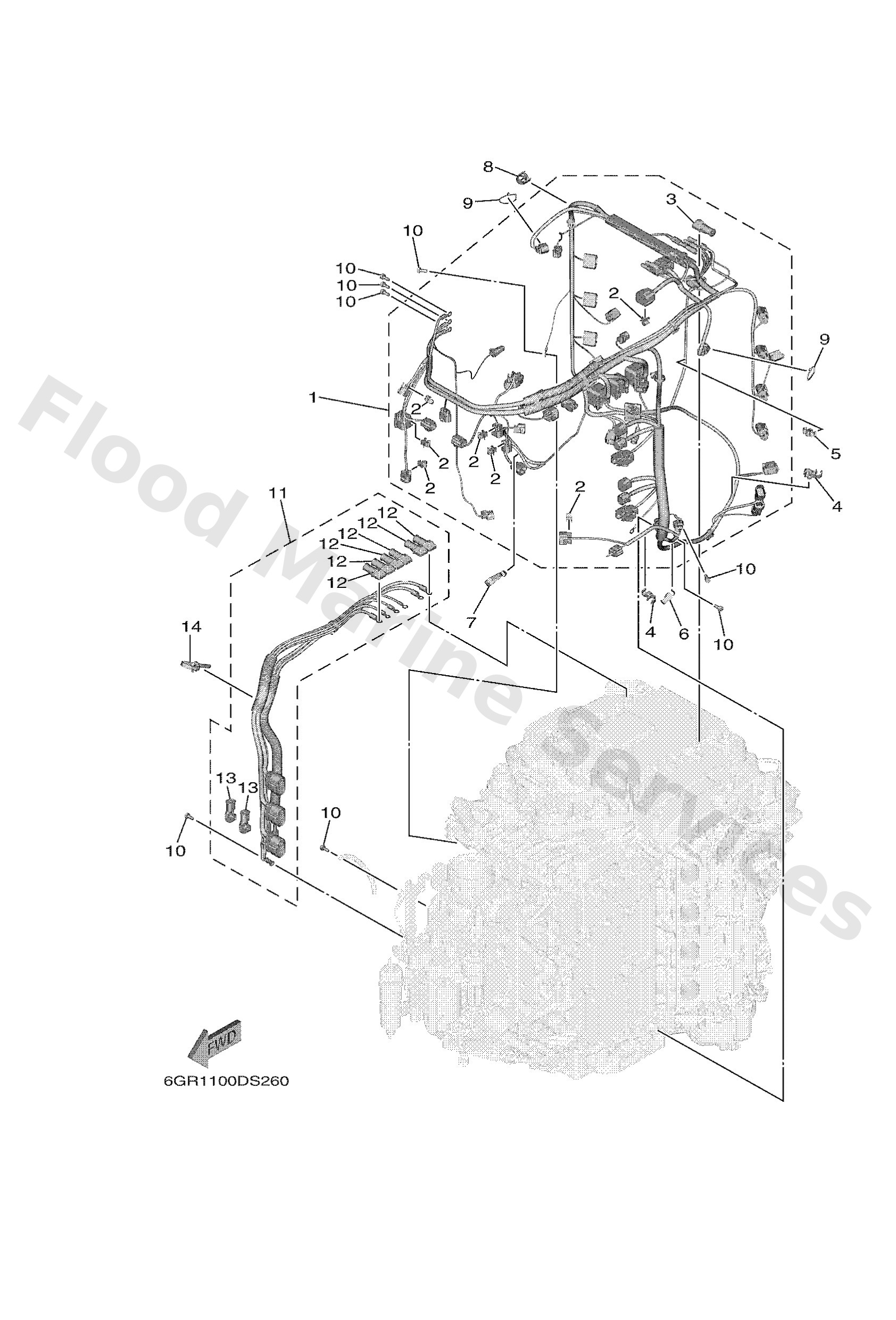

Diagram: ELECTRICAL 5
Parts List
Wire harness assembly
Diagram Reference: 1
Clamp(65j)
Diagram Reference: 2
Cover, lead wire
Diagram Reference: 3
Clamp
Diagram Reference: 4
Clamp
Diagram Reference: 5
Clamp
Diagram Reference: 6
Band, switch cord
Diagram Reference: 7
Clamp
Diagram Reference: 8
Clamp(63m)
Diagram Reference: 9
Bolt, with washer(6r6)
Diagram Reference: 10
Wire harness assembly 2
Diagram Reference: 11
Cover, lead wire
Diagram Reference: 13
Clamp
Diagram Reference: 14
